Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12LRS682CFIXED IND 6.8UH 4.7A 20 MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1200LRS | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | Wirewound | - | 6.8 µH | ±20% | 4.7 A | - | Shielded | 20mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.335" (8.50mm) |
|
|
12LRS683CFIXED IND 68UH 1.6A 160 MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1200LRS | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | Wirewound | - | 68 µH | ±15% | 1.6 A | - | Shielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.335" (8.50mm) |
|
22R333MCFIXED IND 33UH 1.31A 140MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2200RM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±10% | 1.31 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.311" (7.90mm) |
|
|
22R104MCFIXED IND 100UH 800MA 390MOHM SM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2200RM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±10% | 800 mA | - | Unshielded | 390mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.311" (7.90mm) |
|
|
22R154MCFIXED IND 150UH 640MA 540MOHM SM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2200RM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±10% | 640 mA | - | Unshielded | 540mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.311" (7.90mm) |
|
|
22R684MCFIXED IND 680UH 300MA 2.64OHM SM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2200RM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±10% | 300 mA | - | Unshielded | 2.64Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.311" (7.90mm) |
|
|
22R155MCFIXED IND 1.5MH 160MA 6.49OHM SM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2200RM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 mH | ±10% | 160 mA | - | Unshielded | 6.49Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.311" (7.90mm) |
|
|
22R685MCFIXED IND 6.8MH 77MA 22 OHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2200RM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 mH | ±10% | 77 mA | - | Unshielded | 22Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.311" (7.90mm) |
|
27T154CFIXED IND 150UH 170MA 5 OHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2700T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 170 mA | - | Unshielded | 5Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.254" L x 0.213" W (6.45mm x 5.40mm) | 0.041" (1.05mm) |
|

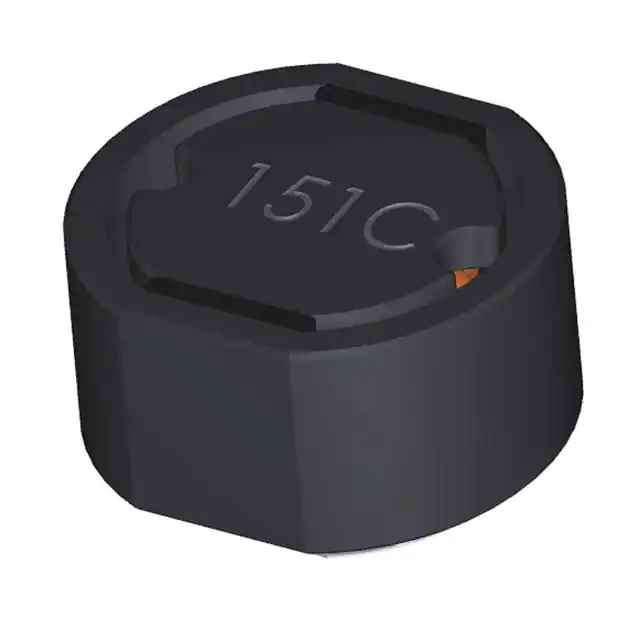

24S120CFIXED IND 12UH 1.5A 74 MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | - | 1.5 A | - | Shielded | 74mOhm Max | - | 29MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.303" L x 0.280" W (7.70mm x 7.10mm) | 0.177" (4.50mm) |
