Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

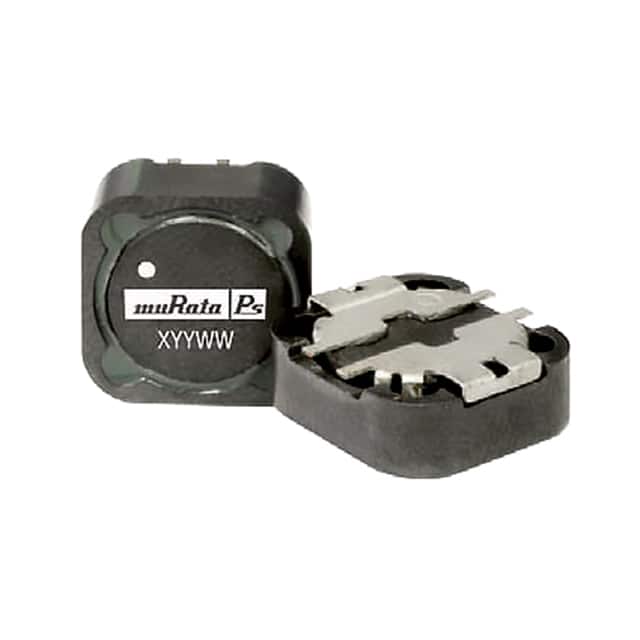

471R0SCFIXED IND 1UH 10A 4.8 MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 10 A | - | Shielded | 4.8mOhm Max | 24 @ 1MHz | 79MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
472R2SCFIXED IND 2.2UH 7A 8.5 MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 7 A | - | Shielded | 8.5mOhm Max | 24 @ 1MHz | 44MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47331SCFIXED IND 330UH 700MA 940MOHM SM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | ±20% | 700 mA | - | Shielded | 940mOhm Max | 21 @ 800kHz | 5MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
473R3SCFIXED IND 3.3UH 6.4A 11.1MOHM SM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 6.4 A | - | Shielded | 11.1mOhm Max | 25 @ 1MHz | 36MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47471SCFIXED IND 470UH 580MA 1.33OHM SM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 µH | ±20% | 580 mA | - | Shielded | 1.33Ohm Max | 23 @ 800kHz | 5MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
474R7SCFIXED IND 4.7UH 5.8A 16.4MOHM SM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 5.8 A | - | Shielded | 16.4mOhm Max | 25 @ 1MHz | 34MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47680SCFIXED IND 68UH 1.6A 210MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±20% | 1.6 A | - | Shielded | 210mOhm Max | 23 @ 1MHz | 9MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
476R8SCFIXED IND 6.8UH 4.6A 26.9MOHM SM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 4.6 A | - | Shielded | 26.9mOhm Max | 24 @ 1MHz | 24MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
29L152CFIXED IND 1.5UH 4.2A 15MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2900L | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | - | 4.2 A | - | Shielded | 15mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.124" (3.15mm) |
|
|
29L153CFIXED IND 15UH 1.23A 84MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2900L | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | - | 1.23 A | - | Shielded | 84mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.124" (3.15mm) |
