Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL8301NLFIXED IND 28.7UH 12A 13.8 MOHM iNRCORE, LLC |
0 |
|
Таблицы данных |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 28.7 µH | - | 12 A | - | Unshielded | 13.8mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL8505FIXED IND 100UH 1.2A 285MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
SLED | Nonstandard | Tube | Active | Toroidal | - | 100 µH | ±10% | 1.2 A | - | Unshielded | 285mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8505NLFIXED IND 100UH 1.2A 285MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
SLED | Nonstandard | Tube | Active | Toroidal | - | 100 µH | ±10% | 1.2 A | - | Unshielded | 285mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8502NLFIXED IND 25UH 2.4A 74 MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
SLED | Nonstandard | Tube | Active | Toroidal | - | 25 µH | ±10% | 2.4 A | - | Unshielded | 74mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
PL8507FIXED IND 220UH 820MA 673MOHM SM iNRCORE, LLC |
0 |
|
Таблицы данных |
SLED | Nonstandard | Tube | Active | Toroidal | - | 220 µH | ±10% | 820 mA | - | Unshielded | 673mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8507NLFIXED IND 220UH 820MA 673MOHM SM iNRCORE, LLC |
0 |
|
Таблицы данных |
SLED | Nonstandard | Tube | Active | Toroidal | - | 220 µH | ±10% | 820 mA | - | Unshielded | 673mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|

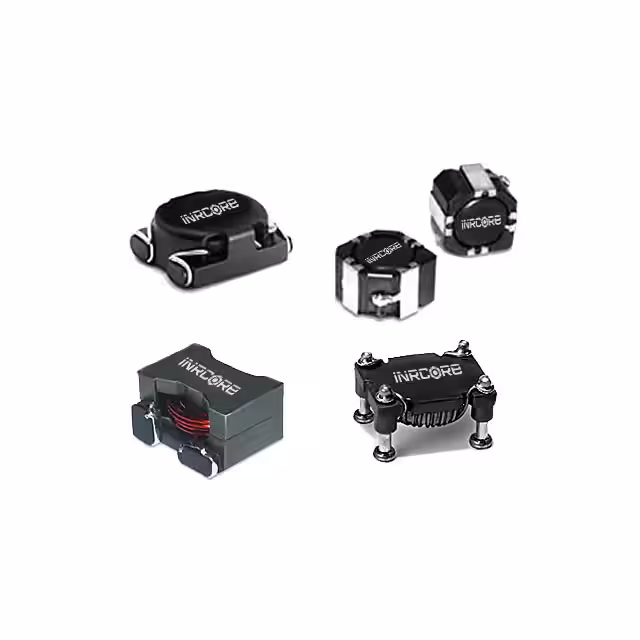

PL8508FIXED IND 331UH 660MA 972MOHM SM iNRCORE, LLC |
0 |
|
Таблицы данных |
SLED | Nonstandard | Tube | Active | Toroidal | - | 331 µH | ±10% | 660 mA | - | Unshielded | 972mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8508NLFIXED IND 331UH 660MA 972MOHM SM iNRCORE, LLC |
0 |
|
Таблицы данных |
SLED | Nonstandard | Tube | Active | Toroidal | - | 331 µH | ±10% | 660 mA | - | Unshielded | 972mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL10106NLTFIXED IND 450NH 52A 0.98MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 450 nH | ±15% | 52 A | 80A | Unshielded | 0.98mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10106TFIXED IND 450NH 52A 0.98MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 450 nH | ±15% | 52 A | 80A | Unshielded | 0.98mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
