Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

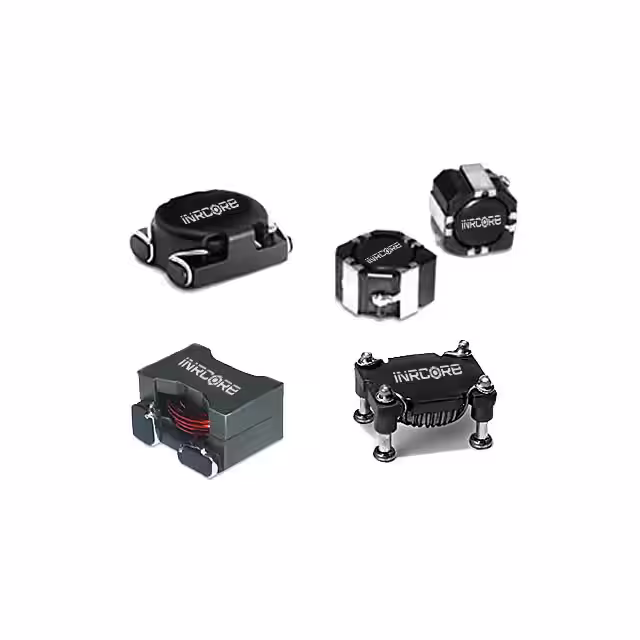

PL8303FIXED IND 13.8UH 17A 6.4MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 13.8 µH | - | 17 A | - | Unshielded | 6.4mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL8303NLFIXED IND 13.8UH 17A 6.4MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 13.8 µH | - | 17 A | - | Unshielded | 6.4mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL8706FIXED IND 27.4UH 4.2A 38.15 MOHM iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tube | Active | Toroidal | - | 27.4 µH | ±20% | 4.2 A | - | Unshielded | 38.15mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8706NLFIXED IND 27.4UH 4.2A 38.15 MOHM iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tube | Active | Toroidal | - | 27.4 µH | ±20% | 4.2 A | - | Unshielded | 38.15mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|

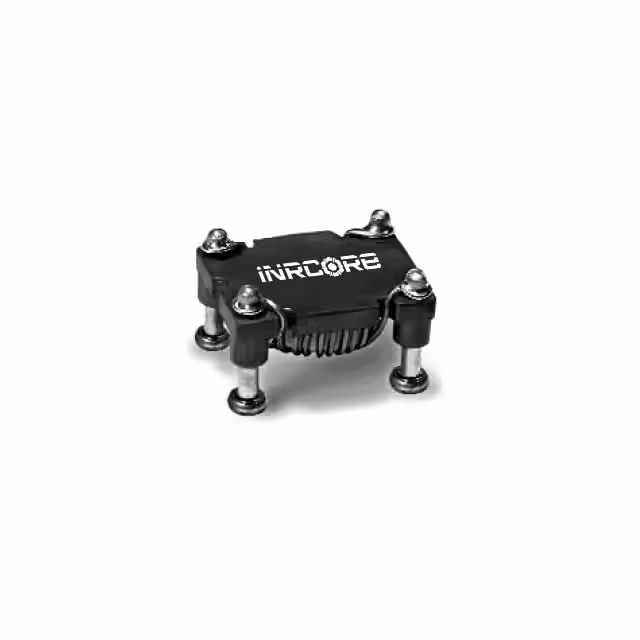

PL8707FIXED IND 40.5UH 3.3A 53.21 MOHM iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tube | Active | Toroidal | - | 40.5 µH | ±20% | 3.3 A | - | Unshielded | 53.21mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8707NLFIXED IND 40.5UH 3.3A 53.21 MOHM iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tube | Active | Toroidal | - | 40.5 µH | ±20% | 3.3 A | - | Unshielded | 53.21mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
PL8708FIXED IND 50.5UH 2.3A 73.89 MOHM iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tube | Active | Toroidal | - | 50.5 µH | ±20% | 2.3 A | - | Unshielded | 73.89mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8708NLFIXED IND 50.5UH 2.3A 73.89 MOHM iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tube | Active | Toroidal | - | 50.5 µH | ±20% | 2.3 A | - | Unshielded | 73.89mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8909NLTFIXED IND 12UH 4.5A 29 MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 4.5 A | 5.1A | Shielded | 29mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
PL8912NLTFIXED IND 22UH 3.8A 42 MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.8 A | 3.8A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
