DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBS 1002DIP SWITCH 6.02 MM |
735 |
|
Таблицы данных |
SBS | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Nickel | Gold | 0.149" (3.78mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RDS6-8S-1065-DSWITCH ROTARY DIP SPST 0.15A 42V |
500 |
|
Таблицы данных |
RDS6-1065-D | Tube | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-16S-1065-DSWITCH ROTARY DIP HEX 0.15A 42V |
500 |
|
Таблицы данных |
RDS3-1065-D | Tube | Active | Hexadecimal | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS1-8S-1065-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
500 |
|
Таблицы данных |
RDS1-1065-D-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-16S-1065-DSWITCH ROTARY DIP HEX 0.15A 42V |
495 |
|
Таблицы данных |
RDS6-1065-D | Tube | Active | Hexadecimal | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS1-10S-1065-D-67SWITCH ROTARY DIP BCD 0.15A 42V |
468 |
|
Таблицы данных |
RDS1-1065-D-67 | Tube | Active | BCD | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DBP 2004 NDUAL-IN-LINE-SWITCH, PIANO-TYPE, |
390 |
|
Таблицы данных |
DBP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DBP 2105 NDUAL-IN-LINE-SWITCH, PIANO-TYPE, |
320 |
|
Таблицы данных |
DBP | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

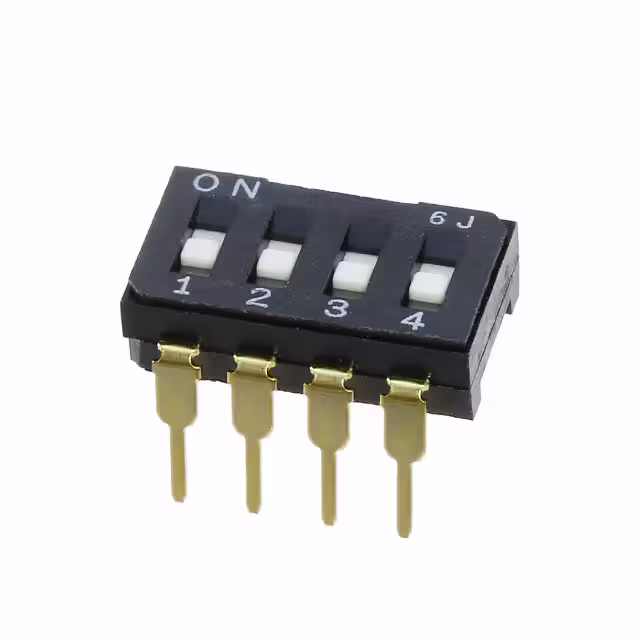

CFS-0401MCSWITCH SLIDE DIP SPST 0.1A 6V |
138 |
|
Таблицы данных |
CFS | Tube | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SBS 9003 JTKDUAL-IN-LINE SWITCH FOR SMT, IC- |
1,100 |
|
Таблицы данных |
SBS | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Brass | Tin | 0.126" (3.20mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS7-8S-1065-73-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
500 |
|
Таблицы данных |
RDS7-1065-D-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS7-10S-1065-73-D-67SWITCH ROTARY DIP BCD 0.15A 42V |
500 |
|
Таблицы данных |
RDS7-1065-D-67 | Tube | Active | BCD | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SBS 1003DIP SWITCH 8.56 MM |
469 |
|
Таблицы данных |
SBS | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Nickel | Gold | 0.149" (3.78mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
DBS 1006DIP SWITCH 16.18 MM |
279 |
|
Таблицы данных |
DBS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Brass | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
SBS 9004 JTKDUAL-IN-LINE SWITCH FOR SMT, IC- |
1,099 |
|
Таблицы данных |
SBS | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Brass | Tin | 0.126" (3.20mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

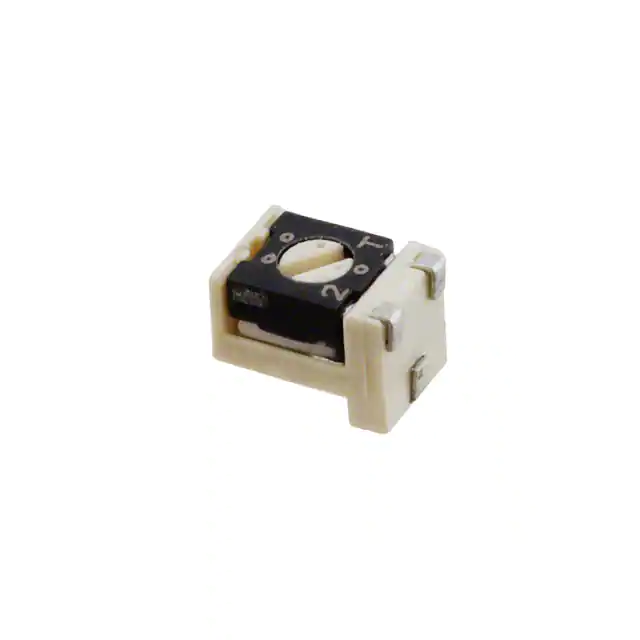

7813S-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V |
230 |
|
Таблицы данных |
7813 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.211" (5.35mm) | Surface Mount, Right Angle | J Lead | - | No | - | -55°C ~ 125°C |
|
|
DBP 2106 NDUAL-IN-LINE-SWITCH, PIANO-TYPE, |
270 |
|
Таблицы данных |
DBP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SBP 8102 TDUAL-IN-LINE SWITCH END-STACKABL |
699 |
|
Таблицы данных |
SBP | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper | Gold | 0.236" (6.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-16S-1065-2-DSWITCH ROTARY DIP HEX 0.15A 42V |
200 |
|
Таблицы данных |
RDS6-1065-D | Tube | Active | Hexadecimal | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.626" (15.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-8S-1065-2-DSWITCH ROTARY DIP SPST 0.15A 42V |
200 |
|
Таблицы данных |
RDS3-1065-D | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.626" (15.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
