БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219G-2LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
Таблицы данных |
219G | Cut Tape (CT) | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.159" (4.05mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
|
|
219G-2ESRSWITCH SLIDE DIP SPST 0.1A 20V |
1,880 |
|
Таблицы данных |
219G | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
ADEN03TTU04SWITCH SLIDE DIP SPST 0.025A 24V |
3,362 |
|
Таблицы данных |
ADE | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
219G-2MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
Таблицы данных |
219G | Cut Tape (CT) | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
|
|
KAE01LGGRSWITCH SLIDE DIP SPST 0.025A 24V |
1,090 |
|
Таблицы данных |
KAE | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.176" (4.47mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAG04TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
308 |
|
Таблицы данных |
KAG | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 105°C |
|
|
ADEN06TTU04SWITCH SLIDE DIP SPST 0.025A 24V |
1,925 |
|
Таблицы данных |
ADE | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
219G-4ESSWITCH SLIDE DIP SPST 0.1A 20V |
1,920 |
|
Таблицы данных |
219G | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
219G-4ESRSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
Таблицы данных |
219G | Cut Tape (CT) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
219G-4ESRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,980 |
|
Таблицы данных |
219G | Cut Tape (CT) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
219G-4LPSRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
Таблицы данных |
219G | Cut Tape (CT) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.159" (4.05mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
219G-4LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
Таблицы данных |
219G | Cut Tape (CT) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.159" (4.05mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
|
|
219G-4MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
Таблицы данных |
219G | Cut Tape (CT) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
|
|
219G-4LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
1,997 |
|
Таблицы данных |
219G | Cut Tape (CT) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.159" (4.05mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
|
|
5161390-2SWITCH SLIDE DIP SPST 0.025A 50V |
1,996 |
|
Таблицы данных |
DIP | Box | Active | SPST | 2 | 25mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
|
ADEN02STR04SWITCH SLIDE DIP SPST 0.025A 24V |
3,906 |
|
Таблицы данных |
ADE | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.179" (4.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

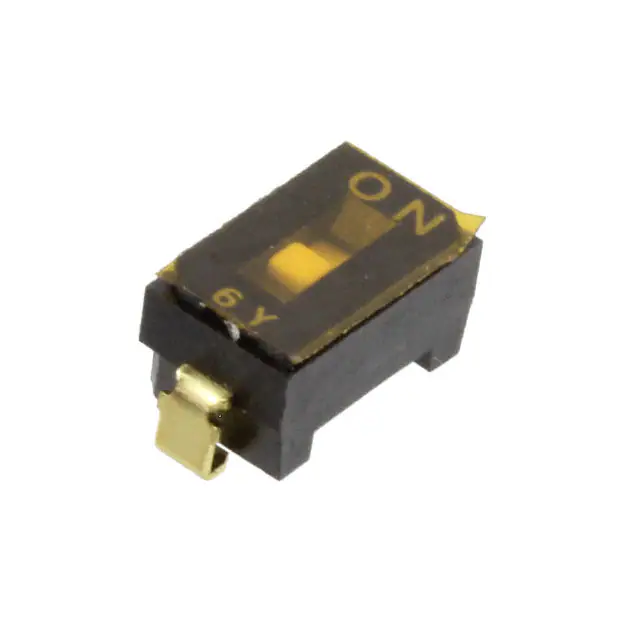

CFS-0100MASWITCH SLIDE DIP SPST 0.1A 6V |
254 |
|
Таблицы данных |
CFS | Tube | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
DBP 2102 NDUAL-IN-LINE-SWITCH, PIANO-TYPE, |
700 |
|
Таблицы данных |
DBP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
219G-6ESRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,965 |
|
Таблицы данных |
219G | Cut Tape (CT) | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
DBS 1002DIP SWITCH 6.02 MM |
152 |
|
Таблицы данных |
DBS | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Brass | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
