Сбор данных (DAQ)
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Функция | Тип | Подключение шины | Переднее подключение | Количество входов и тип | Входной диапазон | Разрешение входа | Количество выходов и тип | Диапазон выхода | Разрешение выхода | Двунаправленные каналы | Счетчик/таймеры | Частота выборки (в секунду) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6069-410-1676069-410-167 |
0 |
|
- |
MCC USB-1608FS-Plus | Bulk | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog, 8 - Digital | ±10V | 16 Bits | 8 - Digital | ±10V | 16 Bits | 8 | 1 | 100k |
|
|
6069-410-0936069-410-093 |
0 |
|
Таблицы данных |
MCC PCI/PCIe | Bulk | Active | Multifunction I/O | DAQ Device | PCI | Screw Terminal | 96 - Digital | - | - | 96 - Digital | - | - | - | - | - |
|
|
PCI-1758UDO-BECARD DIGITAL OUTPUT PCI |
0 |
|
- |
- | Bulk | Active | Digital Output | Card | PCI | SCSI | - | - | - | 128 - Digital | 5 ~ 40V | - | - | - | - |
|
|
6069-410-1326069-410-132 |
0 |
|
- |
MCC DT9800 | Bulk | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog, 16 - Digital | 10V | 12 Bits | 2 - Analog, 16 - Digital | 10V | 12 Bits | 16 | 1 | - |
|
PCI-1710HGU-DECARD COUNTER/TIMER PCI |
1 |
|
- |
- | Box | Active | Counter/Timer | Card | PCI | SCSI | 16 - Analog (Single-Ended, 8 Differential), 16 - Digital | ±10V | 12 Bits | 18 - Analog (2), Digital (16) | 0.4 ~ 2.4V | 12 Bits | - | 1 | 100k |
|
PCI-1710U-DECARD COUNTER/TIMER PCI |
0 |
|
- |
- | Box | Active | Counter/Timer | Card | PCI | SCSI | 16 - Analog (Single-Ended, 8 Differential), 16 - Digital | ±10V | 12 Bits | 18 - Analog (2), Digital (16) | 0.4 ~ 2.4V | 12 Bits | - | 1 | 100k |
|
|
PCI-1718HDU-AECARD MULTIFUNCTION I/O PCI |
0 |
|
- |
- | Bulk | Obsolete | Multifunction I/O | Card | PCI | - | 16 - Analog (Single-Ended, 8 Differential), 16 - Digital | 0.8 ~ 2V | 12 Bits | 1 - Analog, 16 - Digital | 0.8 ~ 2V | 12 Bits | - | 1 | 100k |
|
|
PCI-1758UDIO-BECARD DIGITAL I/O PCI |
0 |
|
- |
- | Bulk | Active | Digital I/O | Card | PCI | SCSI | 64 - Digital | ±25V | - | 64 - Digital | 5 ~ 40V | - | - | - | - |
|
IDAQ-763D-AEDAQ DEVICE ANALOG INPUT |
0 |
|
Таблицы данных |
- | Box | Active | Analog Input | DAQ Device | - | Screw Terminal | - | - | - | 16 - Digital | 60V | - | - | - | 512 |
|
|
6069-410-1346069-410-134 |
0 |
|
Таблицы данных |
MCC DT9800 | Bulk | Active | Digital I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Digital | 500V | - | 16 - Digital | 500V | - | 16 | - | - |
|
|
6069-410-1316069-410-131 |
0 |
|
- |
MCC DT9800 | Bulk | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog, 16 - Digital | 10V | 12 Bits | 2 - Analog, 16 - Digital | 10V | 12 Bits | 16 | 1 | - |
|
|
PCIE-1758DO-AECARD DIGITAL OUTPUT PCI |
0 |
|
- |
- | Bulk | Active | Digital Output | Card | PCI | SCSI | - | ±30V | - | 128 - Analog | ±40V | - | - | - | - |
|
|
PCIE-1758DI-AECARD DIGITAL INPUT PCI |
0 |
|
- |
- | Bulk | Obsolete | Digital Input | Card | PCI | SCSI | 128 - Digital | ±30V | - | - | ±40V | - | - | - | - |
|
|
6069-410-1056069-410-105 |
0 |
|
Таблицы данных |
- | Bulk | Not For New Designs | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Single-Ended, 4 - Differential), 16 - Digital | - | 13 Bits | 16 - Digital | - | 13 Bits | 16 | 2 | 1M |
|
|
191039-02DAQ DEVICE MULTIFUNC I/O USB 2.0 |
0 |
|
- |
- | Bulk | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog | - | 12 Bits | 2 - Analog | - | - | 12 | 32 | 10k - Multiplexed |
|
|
PCI-1715U-BECARD ANALOG INPUT PCI |
0 |
|
- |
- | Bulk | Active | Analog Input | Card | PCI | - | 32 - Analog (Single-Ended, 16 Differential) | - | 12 Bits | - | - | - | - | - | 500k |
|
|
782400-01DAQ DEVICE DIGITAL I/O |
0 |
|
- |
- | Box | Active | Digital I/O | Module | - | - | 8 - Digital | - | - | 8 - Digital | - | - | 8 | - | - |
|

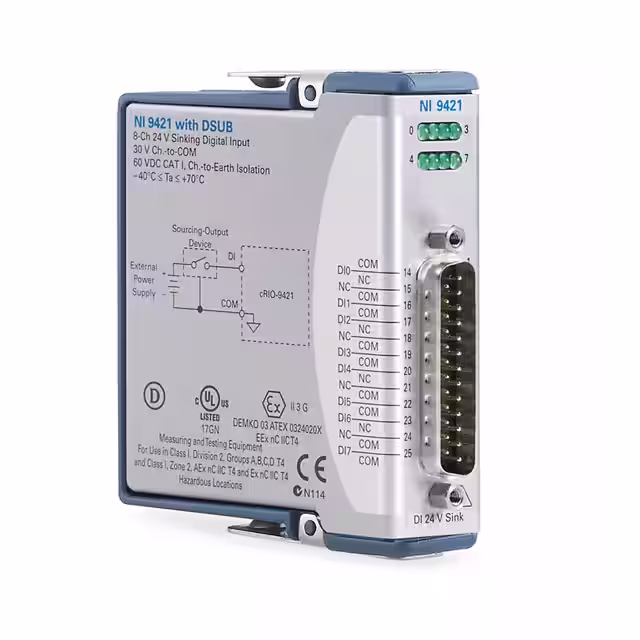

779136-02MODULE DIGITAL INPUT |
0 |
|
Таблицы данных |
C | Box | Active | Digital Input | Module | - | Screw Terminal | 8 - Digital | 11 ~ 30V | - | - | - | - | - | - | - |
|
|
6069-410-0826069-410-082 |
0 |
|
Таблицы данных |
MCC ISA | Bulk | Not For New Designs | Analog Output | DAQ Device | - | Screw Terminal | - | - | - | 16 - Analog | - | 12 Bits | - | - | - |
|
|
6069-410-1536069-410-153 |
0 |
|
- |
MCC E-1608 | Bulk | Active | Multifunction I/O | DAQ Device | - | Screw Terminal | 8 - Analog (Single-Ended, 4 - Differential), 8 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 1 | 250k |
