Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1M1CSQ12VDCRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
446 |
|
Таблицы данных |
A1M | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
A11CSQ48VDC1.2RRELAY AUTOMOTIVE SPDT 30A 48V CIT Relay and Switch |
460 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
A11CSQ6VDC1.2DRELAY AUTOMOTIVE SPDT 30A 6V CIT Relay and Switch |
453 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 200 mA | 6VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
A11CSQ48VDC1.2DRELAY AUTOMOTIVE SPDT 30A 48V CIT Relay and Switch |
445 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|

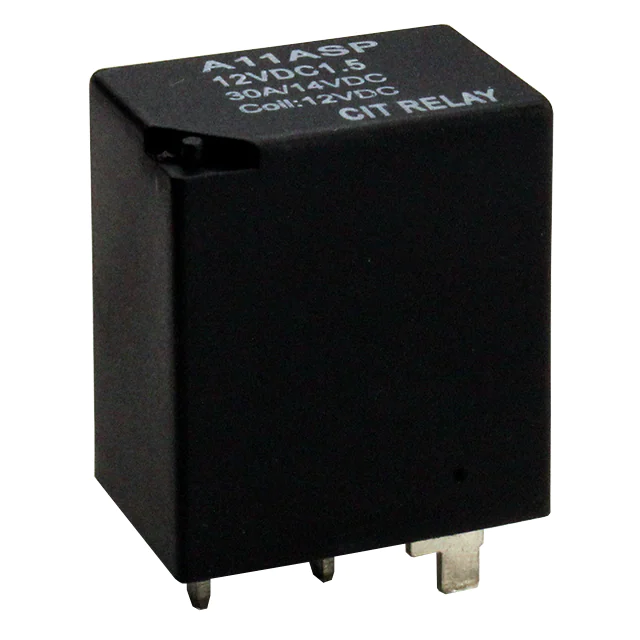

A11ASP12VDC1.5DRELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
500 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

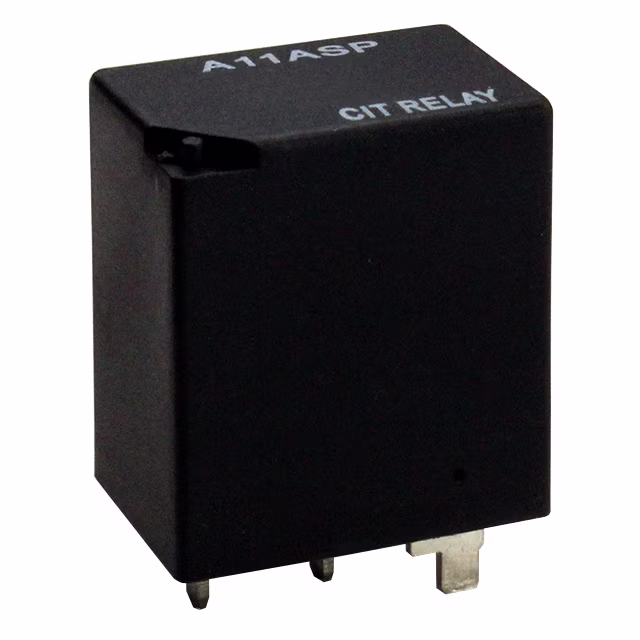

A11ASP24VDC1.5DRELAY AUTOMOTIVE SPST 30A 24V CIT Relay and Switch |
500 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A11ASQ48VDC1.2RRELAY AUTOMOTIVE SPST 30A 48V CIT Relay and Switch |
498 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|

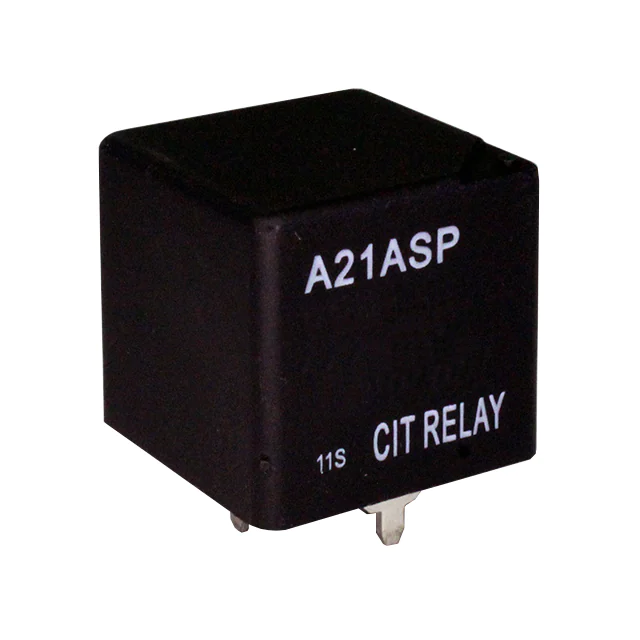

A21ASP24VDC1.6RRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
450 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A1M1CSQ12VDCRRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
308 |
|
Таблицы данных |
A1M | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|

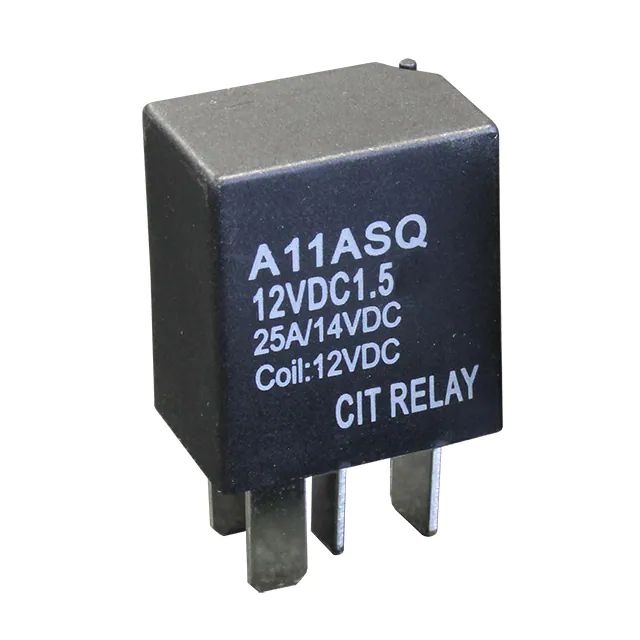

A11ASQ12VDC1.5RELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
739 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
