Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3K1CSP12VDC1.6RELAY AUTOMOTIVE SPDT 150A 12V CIT Relay and Switch |
210 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A3K1CSP12VDC1.6DRELAY AUTOMOTIVE SPDT 150A 12V CIT Relay and Switch |
306 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A3K1CSP24VDC1.6RELAY AUTOMOTIVE SPDT 150A 24V CIT Relay and Switch |
276 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

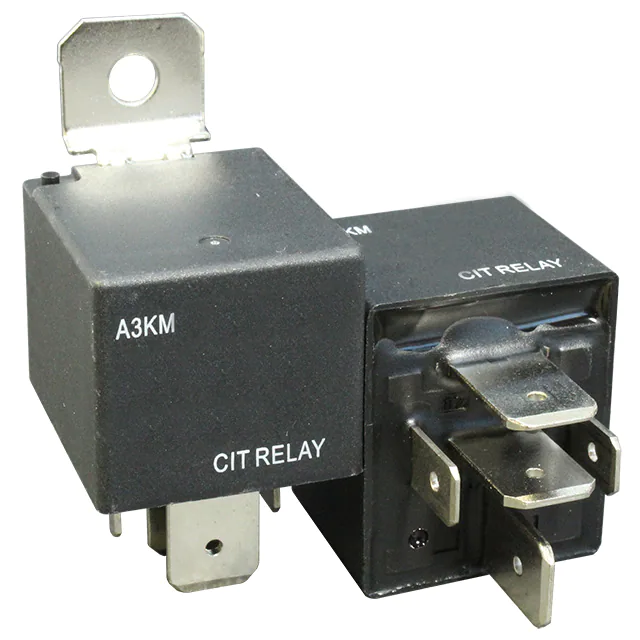

A3KM1CSQ24VDC1.6DRELAY AUTOMOTIVE SPDT 150A 24V CIT Relay and Switch |
280 |
|
Таблицы данных |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A11CSP48VDC1.2RRELAY AUTOMOTIVE SPDT 30A 48V CIT Relay and Switch |
490 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A1M1CSQ24VDCRELAY AUTOMOTIVE SPDT 40A 24V CIT Relay and Switch |
442 |
|
Таблицы данных |
A1M | Tube | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
A1M1CSQ24VDCRRELAY AUTOMOTIVE SPDT 40A 24V CIT Relay and Switch |
400 |
|
Таблицы данных |
A1M | Tube | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|

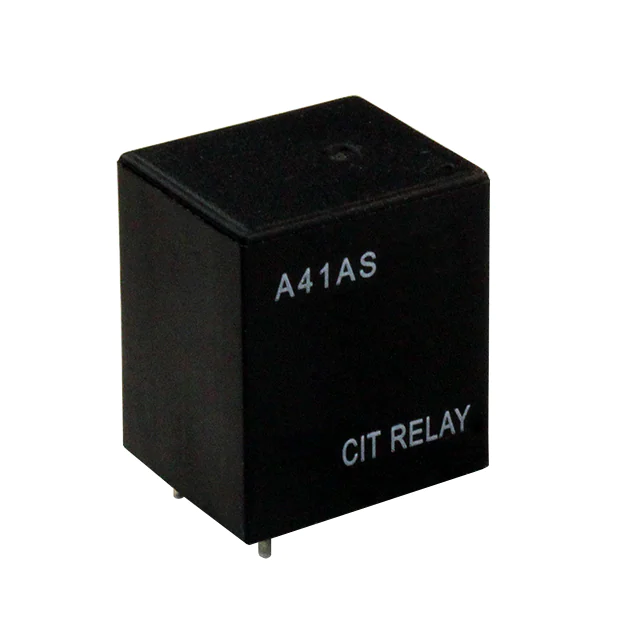

A41AS24VDCRELAY AUTOMOTIVE SPST 20A 24V CIT Relay and Switch |
143 |
|
Таблицы данных |
A4 | Tube | Active | Non Latching | 41.7 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

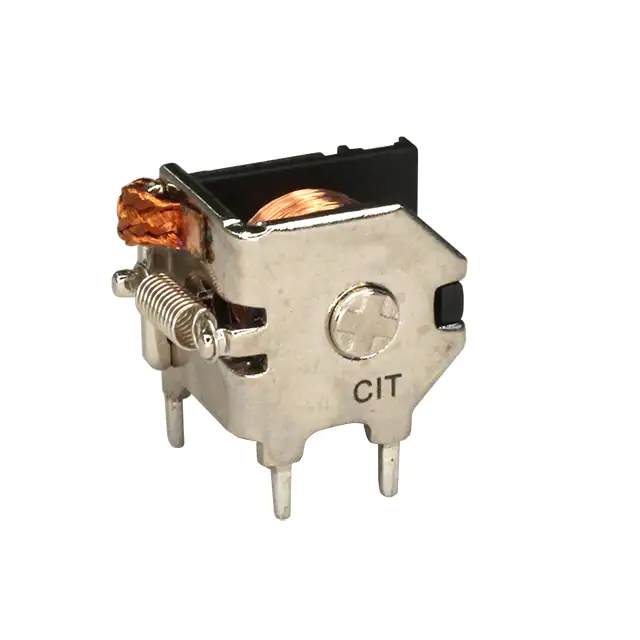

A51AO24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
194 |
|
Таблицы данных |
A5 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A11ASP48VDC1.2RELAY AUTOMOTIVE SPST 30A 48V CIT Relay and Switch |
484 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
