Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC784-1C-12S-XRELAY AUTOMOTIVE SPDT 35A 12V Picker Components |
0 |
|
Таблицы данных |
- | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -25°C ~ 125°C |
|
PC792A-1A-C-12S-N-XRELAY AUTOMOTIVE SPST 40A 12V Picker Components |
0 |
|
Таблицы данных |
- | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC784-1C-12C-R-XRELAY AUTOMOTIVE SPDT 35A 12V Picker Components |
0 |
|
Таблицы данных |
- | Tube | Active | Non Latching | 143 mA | 12VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -25°C ~ 125°C |
|

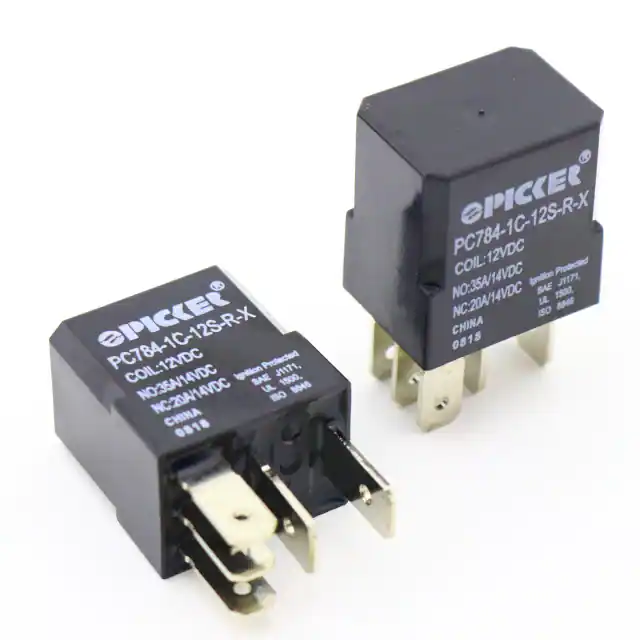

PC784-1C-12S-R-XRELAY AUTOMOTIVE SPDT 35A 12V Picker Components |
0 |
|
Таблицы данных |
- | Tube | Active | Non Latching | 143 mA | 12VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -25°C ~ 125°C |
|
PC792A-1A-C-24S-N-XRELAY AUTOMOTIVE SPST 20A 24V Picker Components |
0 |
|
Таблицы данных |
- | Bag | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | - | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC785-1C-12S-D-XRELAY AUTOMOTIVE SPDT 35A 12V Picker Components |
0 |
|
Таблицы данных |
- | Tube | Active | Non Latching | 110 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.2 VDC | 1.2 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Socketable | Plug In | -40°C ~ 125°C |
|
PC792E-1C-C1-12C-N-XRELAY AUTOMOTIVE SPDT 50A 12V Picker Components |
0 |
|
Таблицы данных |
- | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

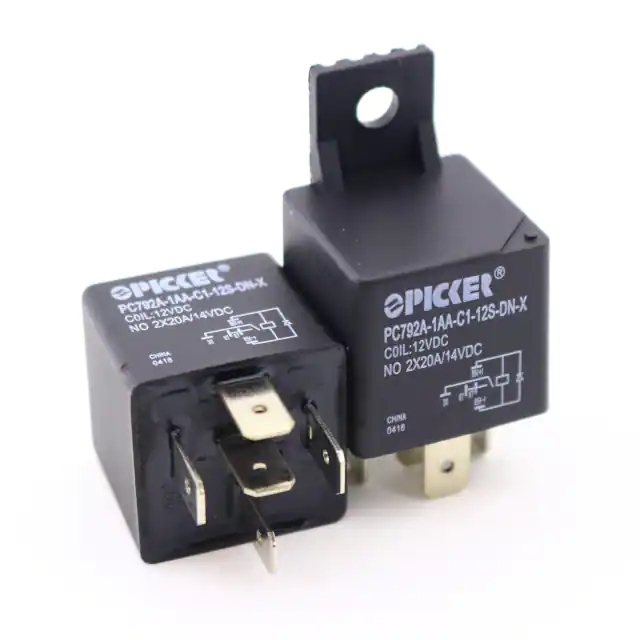

PC792A-1AA-C1-12S-DN-XRELAY AUTOMOTIVE SPST 40A 12V Picker Components |
0 |
|
Таблицы данных |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Diode, Sealed - Fully | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
PC792C-1A-C1-12C-N-XRELAY AUTOMOTIVE SPST 50A 12V Picker Components |
0 |
|
Таблицы данных |
- | Box | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792E-1C-C-12S-DN-XRELAY AUTOMOTIVE SPDT 50A 12V Picker Components |
0 |
|
Таблицы данных |
- | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
