| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC776-1X-24S-R-XRELAY AUTOMOTIVE SPST 130A 24V Picker Components |
10 |
|
Таблицы данных |
PC776 | Tray | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
PC792C-1C-C-12C-N-XRELAY AUTOMOTIVE SPDT 50A 12V Picker Components |
0 |
|
Таблицы данных |
- | Bag | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
PC775-1A-24C-XRELAY AUTOMOTIVE SPST 75A 24V Picker Components |
0 |
|
Таблицы данных |
PC775 | Tray | Active | Non Latching | 120 mA | 24VDC | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 15.6 VDC | 4.8 VDC | 7 ms | 5 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-12S-D-XRELAY AUTOMOTIVE SPST 130A 12V Picker Components |
3 |
|
Таблицы данных |
PC776 | Tray | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-12S-R-XRELAY AUTOMOTIVE SPST 130A 12V Picker Components |
5 |
|
Таблицы данных |
PC776 | Tray | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
PC537-1A-12S-XRELAY AUTOMOTIVE SPST 30A 12V Picker Components |
0 |
|
Таблицы данных |
- | Tube | Active | Non Latching | 47.2 mA | 12VDC | SPST-NO (1 Form A) | - | 28VDC - Max | 6.9 VDC | 1.5 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
PC565-1C-12-XRELAY AUTOMOTIVE SPDT 25A 12V Picker Components |
0 |
|
Таблицы данных |
- | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 25 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
PC537-1C-12H-XRELAY AUTOMOTIVE SPDT 30A 12V Picker Components |
0 |
|
Таблицы данных |
- | Bag | Active | Non Latching | 47.2 mA | 12VDC | SPDT (1 Form C) | - | 28VDC - Max | 6.9 VDC | 1.5 VDC | 4 ms | 1.5 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|

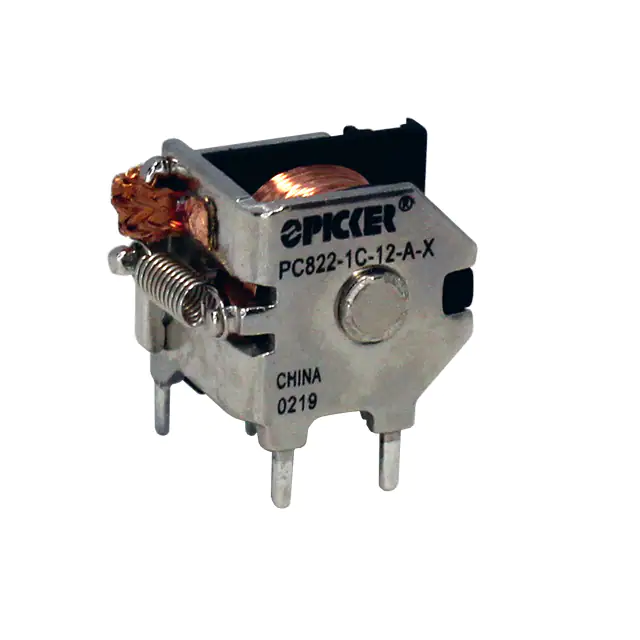

PC822-1C-12-A-XRELAY AUTOMOTIVE SPDT 45A 12V Picker Components |
0 |
|
Таблицы данных |
- | Tube | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
PC782-1C-12S-XRELAY AUTOMOTIVE SPDT 30A 12V Picker Components |
0 |
|
Таблицы данных |
- | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
