Преобразователи переменного и постоянного тока
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Рабочая температура | Особенности | Тип крепления | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGS-35B-24AC/DC CONVERTER 24V 36W |
0 |
|
Таблицы данных |
VGS-35B (36W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 36W | ITE (Commercial) | 1.5 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
VGS-25W-3-BAC/DC CONVERTER 3.3V 20W |
0 |
|
Таблицы данных |
VGS-25W (25W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 20W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|

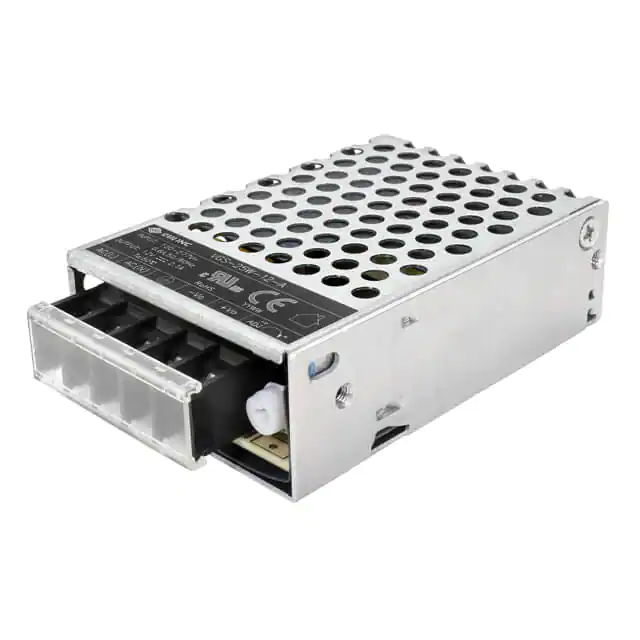

VGS-25W-12-AAC/DC CONVERTER 12V 25W |
0 |
|
Таблицы данных |
VGS-25W (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
VGS-25W-48-AAC/DC CONVERTER 48V 27W |
0 |
|
Таблицы данных |
VGS-25W (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 48V | - | - | - | - | - | 570 mA | - | - | - | - | - | 27W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
VGS-25W-12-BAC/DC CONVERTER 12V 25W |
0 |
|
Таблицы данных |
VGS-25W (25W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
VGS-25W-24-BAC/DC CONVERTER 24V 26W |
0 |
|
Таблицы данных |
VGS-25W (25W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 26W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
VGS-25W-24-AAC/DC CONVERTER 24V 26W |
0 |
|
Таблицы данных |
VGS-25W (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 26W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
VGS-25W-3-AAC/DC CONVERTER 3.3V 20W |
0 |
|
Таблицы данных |
VGS-25W (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 20W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
VGS-25W-15-BAC/DC CONVERTER 15V 26W |
0 |
|
Таблицы данных |
VGS-25W (25W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 26W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
VGS-25W-48-BAC/DC CONVERTER 48V 27W |
0 |
|
Таблицы данных |
VGS-25W (25W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 48V | - | - | - | - | - | 570 mA | - | - | - | - | - | 27W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
VGS-25W-5-BAC/DC CONVERTER 5V 25W |
0 |
|
Таблицы данных |
VGS-25W (25W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 5 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
VGS-25W-15-AAC/DC CONVERTER 15V 26W |
0 |
|
Таблицы данных |
VGS-25W (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 26W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
VGS-25W-5-AAC/DC CONVERTER 5V 25W |
0 |
|
Таблицы данных |
VGS-25W (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 5 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
LM100-23B15R2-CQAC/DC CONVERTER 15V 105W |
5 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 105W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM100-23B36R2-CQAC/DC CONVERTER 36V 101W |
5 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 36V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 101W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM100-23B54R2-CQAC/DC CONVERTER 54V 103W |
4 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 54V | - | - | - | - | - | 1.9 A | - | - | - | - | - | 103W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM100-23B12R2-CQAC/DC CONVERTER 12V 102W |
4 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 102W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM100-23B24R2-CQAC/DC CONVERTER 24V 108W |
3 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 108W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM100-23B05R2-CQAC/DC CONVERTER 5V 90W |
2 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 18 A | - | - | - | - | - | 90W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
PSK-3D-12-TAC/DC CONVERTER 12V 3W |
0 |
|
Таблицы данных |
PSK-3D (3W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 250 mA | - | - | - | - | - | 3W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.04" H (76.0mm x 31.5mm x 26.4mm) |
