БОМ
Преобразователи переменного и постоянного тока
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Рабочая температура | Особенности | Тип крепления | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM15-23B03-CAC/DC CONVERTER 3.3V 10W |
2 |
|
Таблицы данных |
LM15-23Bxx-C (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 3.3V | - | - | - | - | - | 3 A | - | - | - | - | - | 10W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
|
LM15-23B48-QAC/DC CONVERTER 48V 15W |
1 |
|
Таблицы данных |
LM15-23Bxx-Q (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 48V | - | - | - | - | - | 320 mA | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
|
LM15-23B48-CAC/DC CONVERTER 48V 15W |
1 |
|
Таблицы данных |
LM15-23Bxx-C (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 48V | - | - | - | - | - | 320 mA | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
LM35-23B05AC/DC CONVERTER 5V 35W |
0 |
|
Таблицы данных |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 7 A | - | - | - | - | - | 35W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
LM35-23B15AC/DC CONVERTER 15V 36W |
0 |
|
Таблицы данных |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
AMES75-15S277NZAC/DC CONVERTER 15V 75W |
4 |
|
Таблицы данных |
AMES75-277NZ (75W) | Box | Obsolete | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
AMES75-24S277NZ-PAC/DC CONVERTER 24V 77W |
4 |
|
Таблицы данных |
AMES75-277NZ (77W) | Box | Obsolete | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
AMES75-24S277NZ-QAC/DC CONVERTER 24V 77W |
4 |
|
Таблицы данных |
AMES75-277NZ (77W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
LM50-20B24AC/DC CONVERTER 24V 53W |
0 |
|
Таблицы данных |
LM50-20Bxx (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 53W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
LM100-23B36R2-QAC/DC CONVERTER 36V 101W |
5 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 36V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 101W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM100-23B36R2-CAC/DC CONVERTER 36V 101W |
5 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 36V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 101W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM100-23B15R2-CAC/DC CONVERTER 15V 105W |
3 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 105W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM100-23B48R2-CAC/DC CONVERTER 48V 110W |
3 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 48V | - | - | - | - | - | 2.3 A | - | - | - | - | - | 110W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM100-23B54R2-QAC/DC CONVERTER 54V 103W |
3 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 54V | - | - | - | - | - | 1.9 A | - | - | - | - | - | 103W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM100-23B05R2-CAC/DC CONVERTER 5V 90W |
3 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 18 A | - | - | - | - | - | 90W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM100-23B12R2-CAC/DC CONVERTER 12V 102W |
2 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 102W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM100-23B12R2-QAC/DC CONVERTER 12V 102W |
2 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 102W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM100-23B05R2-QAC/DC CONVERTER 5V 90W |
0 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 18 A | - | - | - | - | - | 90W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
AMES75-15SNZ-PAC/DC CONVERTER 15V 75W |
0 |
|
Таблицы данных |
AMES75-NZ | Active | Enclosed | 1 | 90 ~ 305 VAC, 127 ~ 430 VDC | 13.5 ~ 18V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | |
|

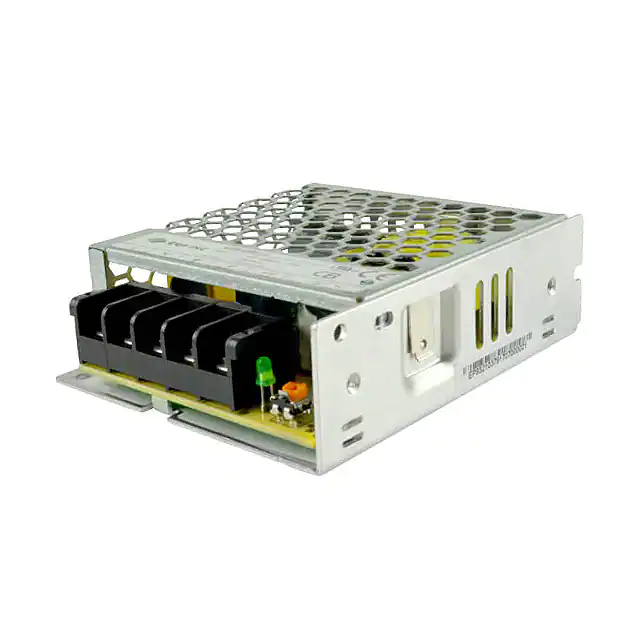

VGS-35B-12AC/DC CONVERTER 12V 36W |
0 |
|
Таблицы данных |
VGS-35B (36W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 3 A | - | - | - | - | - | 36W | ITE (Commercial) | 1.5 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
