БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

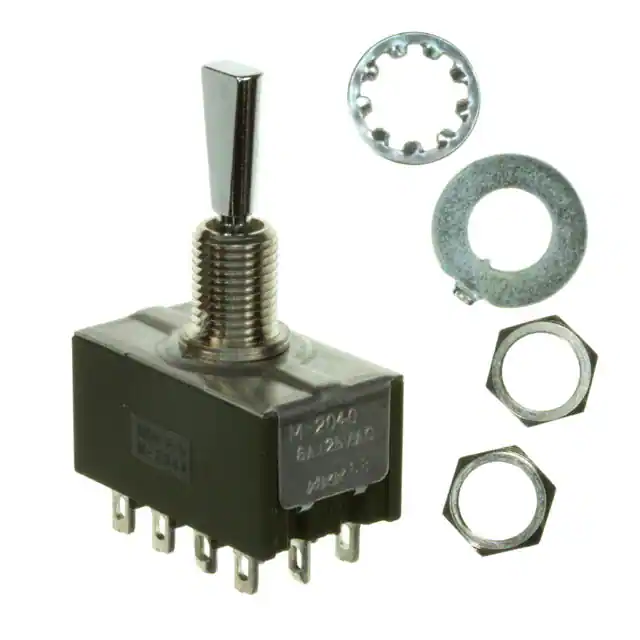

M2044ES1W01SWITCH TOGGLE DP3T 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2022LL2W13-CSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Red Cap | -30°C ~ 85°C |
|
4-1571920-0SWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Таблицы данных |
MTA Green | Bulk | Obsolete | Panel Mount | 4PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
S7F-AT402HSWITCH TOGGLE DPDT 20A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S7F-AT402ASWITCH TOGGLE DPDT 20A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S6F-AT402ASWITCH TOGGLE DPDT 20A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 70°C |
|
|
S6F-AT402HSWITCH TOGGLE DPDT 20A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 70°C |
|
|
S7F-AT402CSWITCH TOGGLE DPDT 20A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S6F-AT402CSWITCH TOGGLE DPDT 20A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 70°C |
|
|
M2013ES1W01/3SWITCH TOGGLE SPDT 6A 125V |
11 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
|

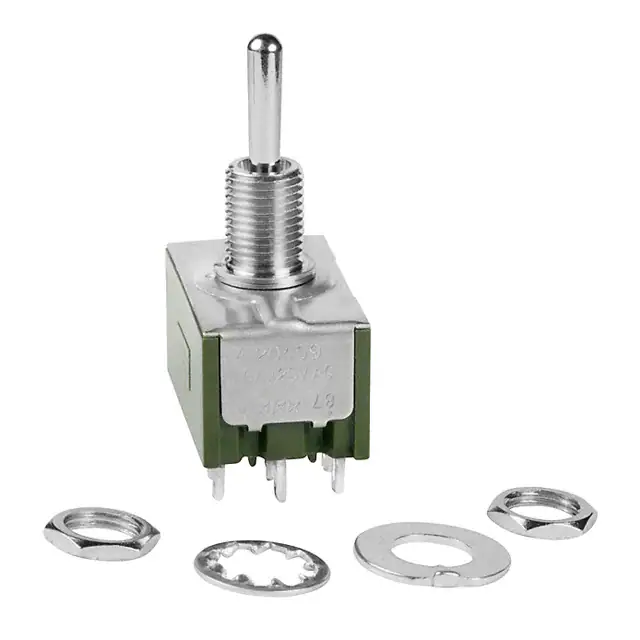

M2047SS1W01SWITCH TOGGLE DP3T 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
S7F-AT401SSWITCH TOGGLE DPDT 20A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S6F-AT401SSWITCH TOGGLE DPDT 20A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 70°C |
|
1NT1-1SWITCH TOGGLE SPDT 15A 125V |
0 |
|
Таблицы данных |
NT | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
1MT1-8SWITCH TOGGLE SPDT 5A 28V |
0 |
|
Таблицы данных |
MT | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 5A (DC) | - | 28 V | Standard Round | 16.87mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 12.45mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
S31F-AT401ASWITCH TOGGLE 3PST 20A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | 3PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S31F/CUL-AT401ASWITCH TOGGLE 3PST 20A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | 3PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S31F/CUL-AT401HSWITCH TOGGLE 3PST 20A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | 3PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S31F-AT401HSWITCH TOGGLE 3PST 20A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | 3PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

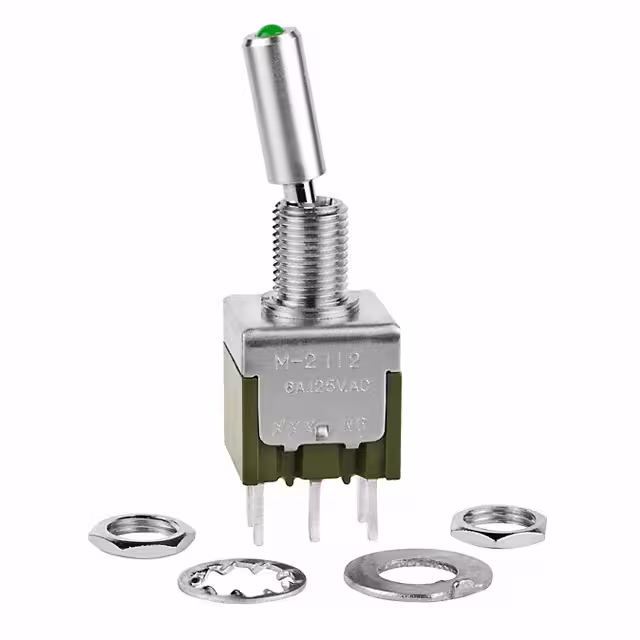

M2112TFW02SWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green | 2.2 VDC | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
