Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GTS447I101HRSWITCH TOGGLE SPDT 16A 277V |
0 |
|
Таблицы данных |
GTS447 | Bulk | Active | Panel Mount | SPDT | On-Mom | 16A (AC) | 277 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
GTS447I301HRSWITCH TOGGLE SPDT 16A 277V |
0 |
|
Таблицы данных |
GTS447 | Bulk | Active | Panel Mount | SPDT | On-Mom | 16A (AC) | 277 V | - | Flatted | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
GTS448S101AHRSWITCH TOGGLE DPST-NO 16A 250V |
0 |
|
Таблицы данных |
GTS448 | Bulk | Active | Panel Mount | DPST-NO | Off-Mom | 16A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
GTS448P101AHRSWITCH TOGGLE DPDT 12A 250V |
0 |
|
Таблицы данных |
GTS448 | Bulk | Active | Panel Mount | DPDT | On-Mom | 12A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|

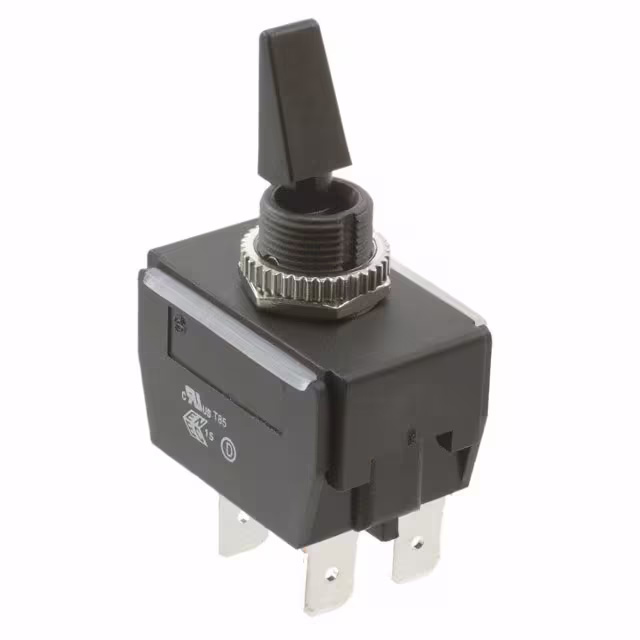

GTS448Q301AHRSWITCH TOGGLE DPST-NC 16A 250V |
0 |
|
Таблицы данных |
GTS448 | Bulk | Active | Panel Mount | DPST-NC | On-Mom | 16A (AC) | 250 V | - | Flatted | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|

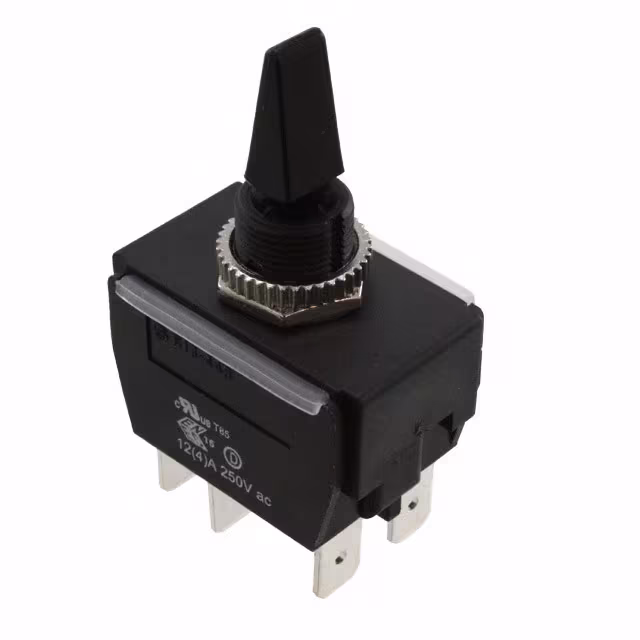

GTS448E301AHRSWITCH TOGGLE DPDT 12A 250V |
0 |
|
Таблицы данных |
GTS448 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 12A (AC) | 250 V | - | Flatted | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
11TS95801-2-TNSWITCH TOGGLE 20A 125V |
0 |
|
- |
TS | Bulk | Obsolete | Panel Mount | - | - | 20A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | - | Circular - 12.40mm Dia | - | - | - | -54°C ~ 71°C |
|
AML25GBF8CA04GRSWITCH TOGGLE SP3T 3A 125V |
0 |
|
Таблицы данных |
AML25 | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Paddle | - | Illuminated | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | Jumper needed to achieve triple throw | - |
|

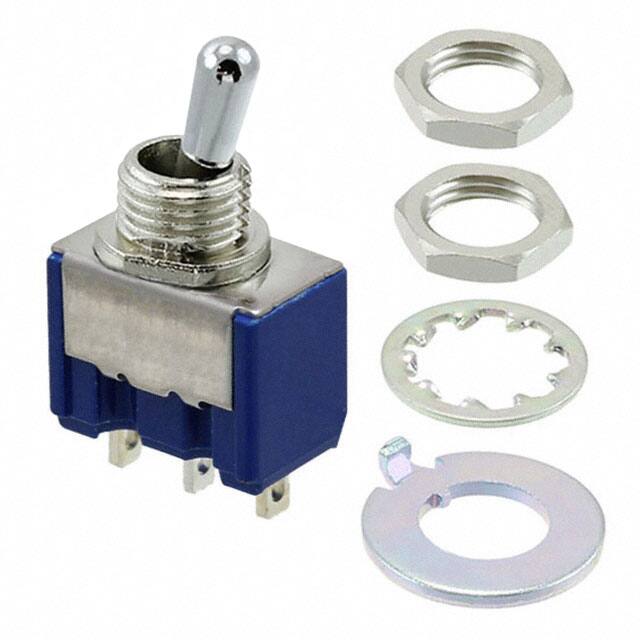

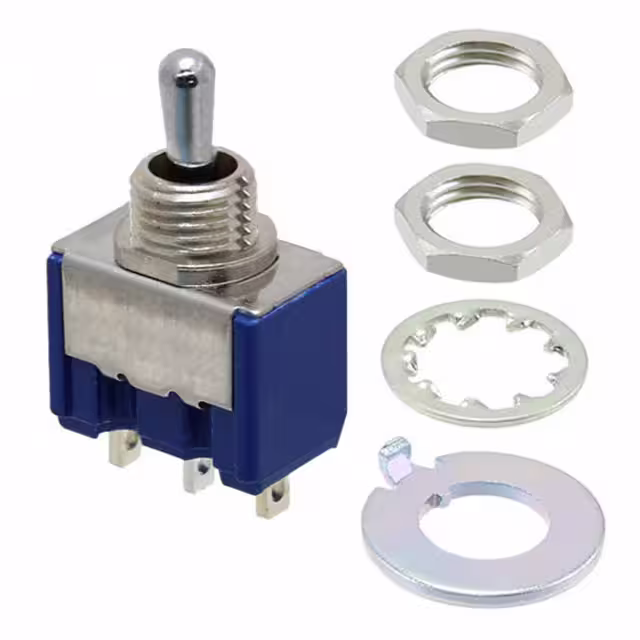

8B1021-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
8B | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
|
8B1051-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
8B | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8B1061-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
8B | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|

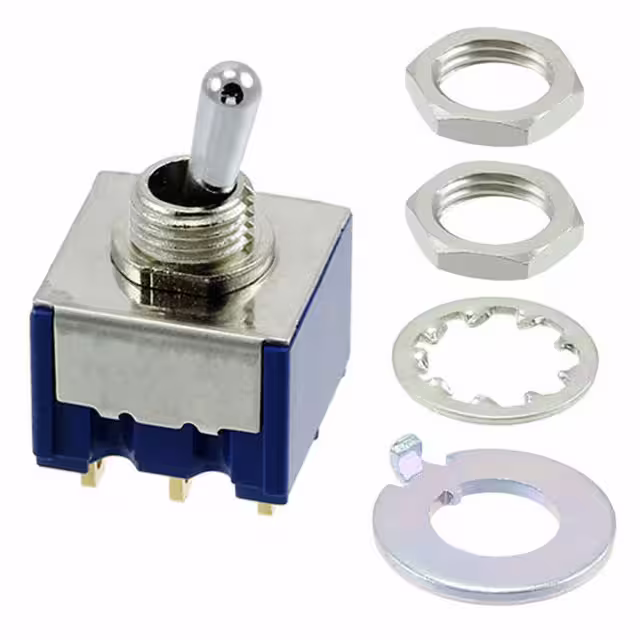

8B2041-ZSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
8B | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|

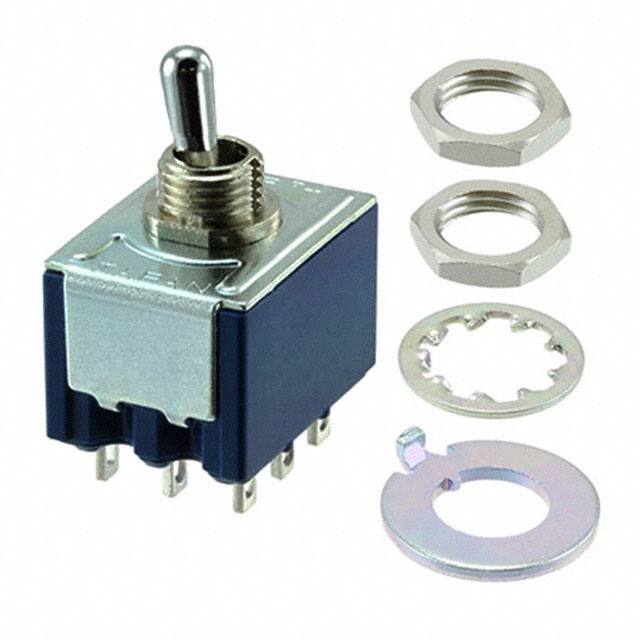

8B3021-ZSWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Таблицы данных |
8B | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
26ET31-2-GSWITCH TOGGLE DPDT 4A 28V |
0 |
|
Таблицы данных |
ET | Bulk | Active | Panel Mount | DPDT | On-Mom | 4A (DC) | - | 28 V | Locking Lever | 25.90mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Magnetic Hold | -65°C ~ 71°C |
|
|
12TW1-261SWITCH TOGGLE DPST-NO 5A 125V |
0 |
|
Таблицы данных |
TW | Bulk | Active | Panel Mount | DPST-NO | Off-Mom | 5A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
12TS15-5SWITCH TOGGLE DPDT 20A 125V |
0 |
|
Таблицы данных |
TS | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
11TS95-5SWITCH TOGGLE SPDT 20A 125V |
0 |
|
Таблицы данных |
TS | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
|
AML35FBC4AC01SWITCH TOGGLE DPST 15A 125V |
0 |
|
Таблицы данных |
AML35 | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Paddle | - | Illuminated | Neon, Red | 250 VAC | Solder, Quick Connect - 0.187" (4.7mm) | Rectangular - 28.98mm x 19.05mm | - | - | - | - |
|
|
AML23GBA2CA04SWITCH TOGGLE SP3T 3A 125V |
0 |
|
Таблицы данных |
AML23 | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Paddle | - | Illuminated | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | Jumper needed to achieve triple throw | - |
|
|
AML23EBA2DA04SWITCH TOGGLE DPDT 100MA 125V |
0 |
|
Таблицы данных |
AML23 | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On-On | 100mA (AC/DC) | 125 V | 125 V | Paddle | - | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | - | - |
