Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

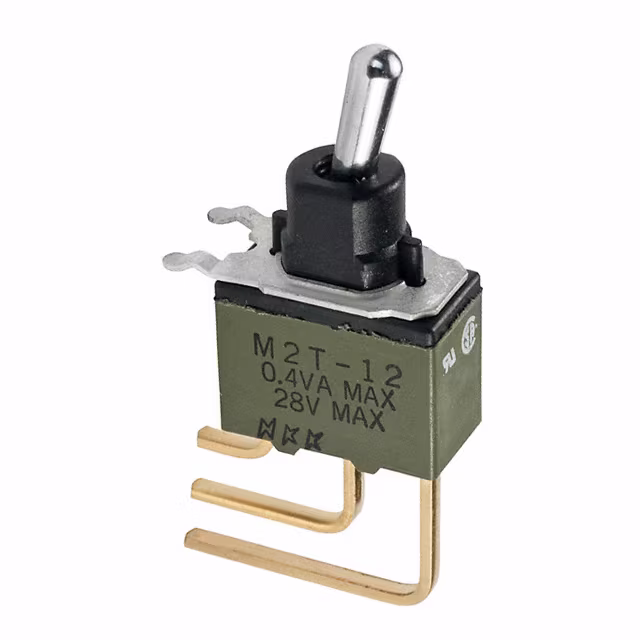

M2T12S4A5G40SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T13S4A5G40SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

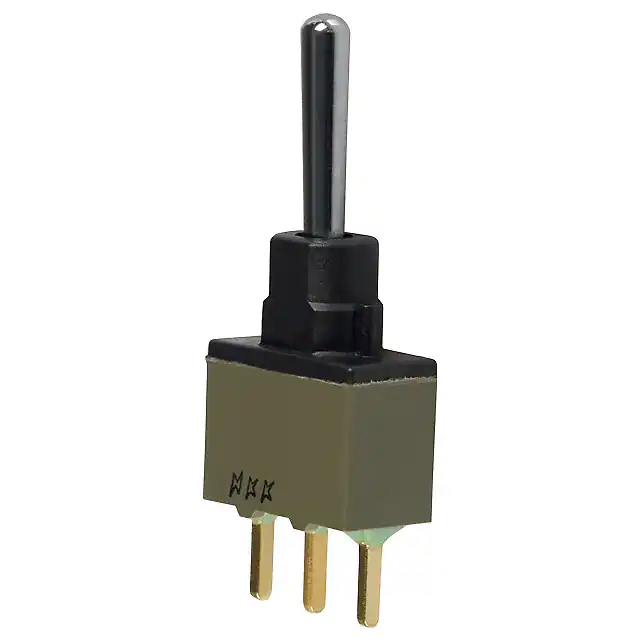

M2T12SA5G03SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13SA5G03SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

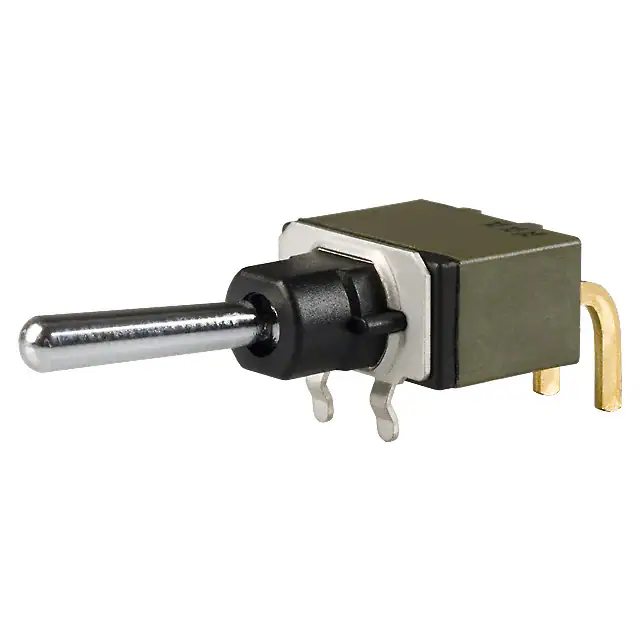

M2T12SA5G30SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
S732SWITCH TOGGLE DPDT 50A 125V |
0 |
|
Таблицы данных |
S | Bulk | Obsolete | Panel Mount | DPDT | On-On | 50A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
T211STKCQESWITCH TOGGLE SP3T 2A 120V |
0 |
|
Таблицы данных |
T | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 2A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
ET24MD1AVBESWITCH TOGGLE SP3T 0.4VA 20V |
0 |
|
Таблицы данных |
ET | Tray | Obsolete | Through Hole, Right Angle, Vertical | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

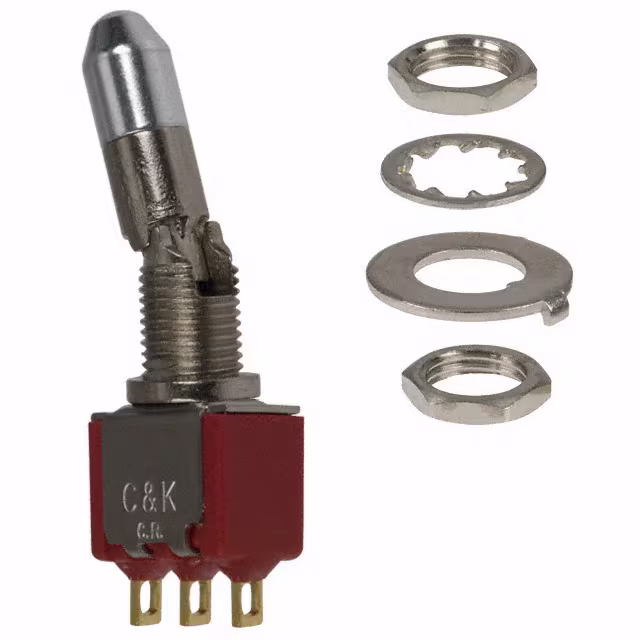

7107K2ZQESWITCH TOGGLE SPDT 5A 120V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GT12MAKESWITCH TOGGLE SPST 0.4VA 20V |
0 |
|
- |
GT | Bulk | Obsolete | Through Hole, Right Angle | SPST | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.81mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
GT12MCKESWITCH TOGGLE SPST 0.4VA 20V |
0 |
|
- |
GT | Bulk | Obsolete | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.81mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022LL3W01SWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
LT-1564-623-024SWITCH TOGGLE SPDT 15A 125V |
0 |
|
Таблицы данных |
LT | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Amber/Green | 24 VAC | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

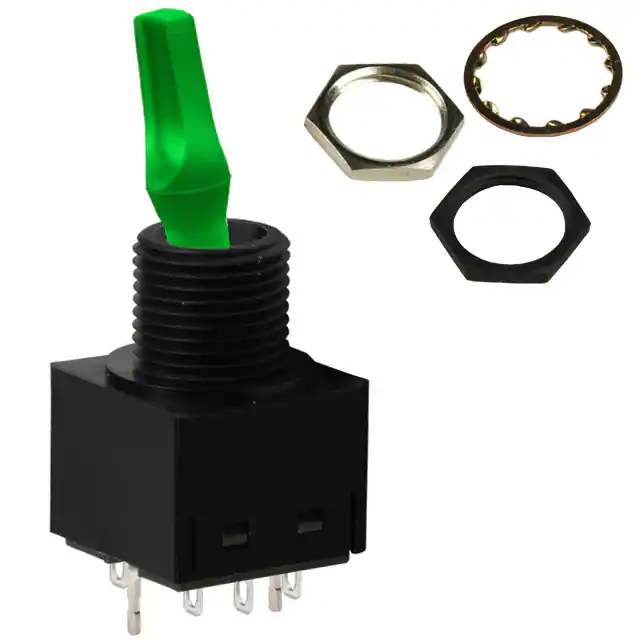

TL22DNAW016FSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 12 V | Flatted | 17.50mm | Illuminated | LED, Green | 3.5 VDC | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP65 - Dust Tight, Water Resistant | Epoxy Sealed Terminals | -10°C ~ 55°C |
|

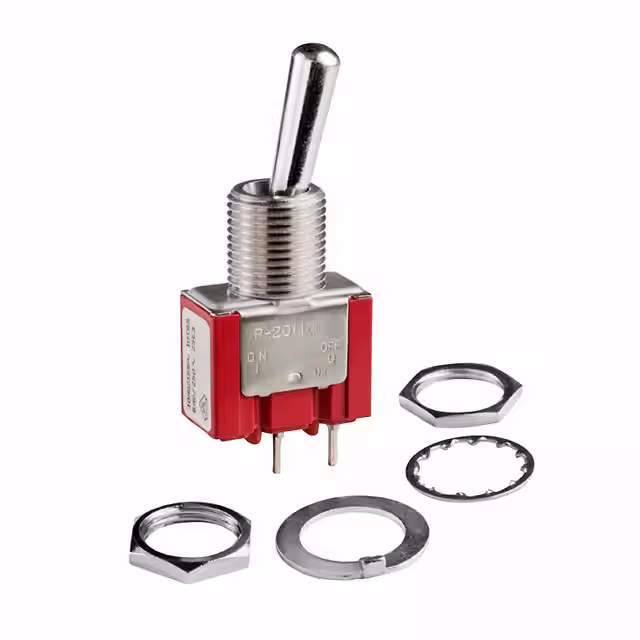

P2011BP/USWITCH TOGGLE SPST 10A 125V |
0 |
|
Таблицы данных |
P | Bulk | Obsolete | Panel Mount | SPST | On-Off | 10A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 85°C |
|

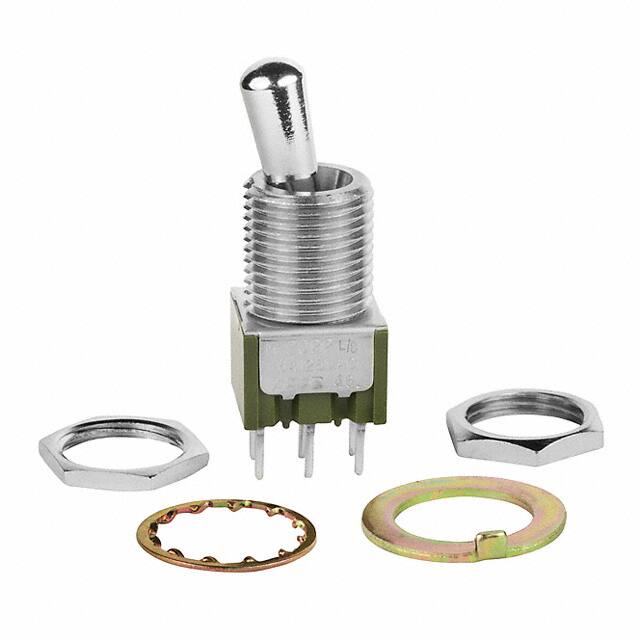

M2022BB1W03SWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
CLS-TC11A12253RSWITCH TOGGLE SPST 20A 12V |
0 |
|
Таблицы данных |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | 23.20mm | Illuminated | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | - | - | - | - |
|
CLS-TC11A12252YSWITCH TOGGLE SPST 20A 12V |
0 |
|
Таблицы данных |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | 26.27mm | Illuminated | LED, Yellow | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | - | - | - | - |
|
CLS-TC11A12252RSWITCH TOGGLE SPST 20A 12V |
0 |
|
Таблицы данных |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | 26.27mm | Illuminated | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | - | - | - | - |
|
CLS-TC11A12252GSWITCH TOGGLE SPST 20A 12V |
0 |
|
Таблицы данных |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | 26.27mm | Illuminated | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | - | - | - | - |
