Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
104TL1-111ASWITCH TOGGLE 4PDT 15A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Obsolete | Panel Mount | 4PDT | On-On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
12TW8-70ESWITCH TOGGLE DPDT 5A 125V |
0 |
|
Таблицы данных |
TW | Bulk | Active | Panel Mount | DPDT | Mom-On-Mom | 5A (AC) | 125 V | - | Locking Lever | 29.46mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
102TL2-72LSWITCH TOGGLE DPDT 11A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Obsolete | Panel Mount | DPDT | Mom-On-Mom | 11A (AC), 18A (DC) | 125 V | 28 V | Locking Lever | 26.67mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
1224513VX987FSWITCH TOGGLE DPDT 4A 125V |
0 |
|
Таблицы данных |
12000 | Bulk | Active | Panel Mount | DPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Locking Lever | 20.60mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

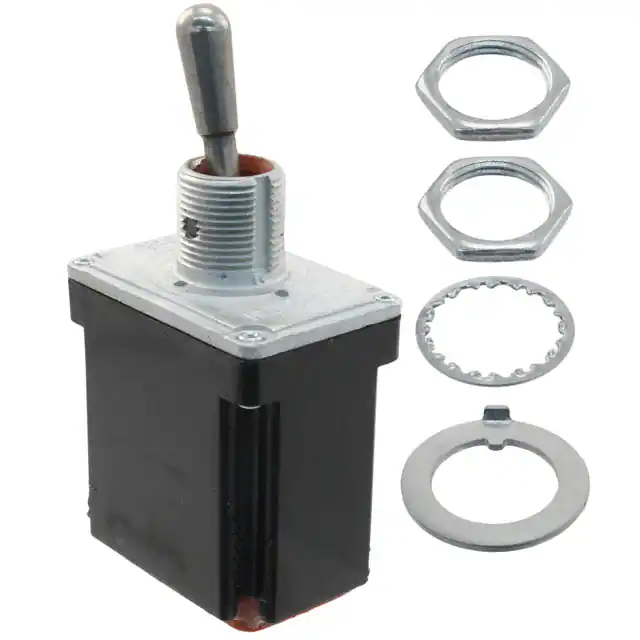

102TL2-10SWITCH TOGGLE SP3T 7.5A 115V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | SP3T | On-On-On | 7.5A (AC/DC) | 115 V | 30 V | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Jumper needed to achieve triple throw | -65°C ~ 71°C |
|
|
102TL2887-3SWITCH TOGGLE DPDT 100MA 115V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | DPDT | On-On | 100mA (AC/DC) | 115 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
12145AG03813VTOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DPDT | On-Mom | 4A (DC) | - | 30 V | Locking Lever | 19.38mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
12146AGK0371VTOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DP3T | On-On | 4A (DC) | - | 30 V | Locking Lever | 19.38mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
M3950/15-29A010TOGGLE SWITCH 12X778 MIL GRADE |
0 |
|
- |
- | Bulk | Active | Through Hole | 3PDT | On-Off-On | 4A (AC/DC) | 125 V | 28 V | Standard Round | 17.30mm | Non-Illuminated | - | - | PC Pin | - | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
102TL1-5SWITCH TOGGLE DPDT 10A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
102TL1-6SWITCH TOGGLE DPST-NO 10A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | DPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
112TW401-7SWITCH TOGGLE DPDT 5A 125V |
0 |
|
Таблицы данных |
TW | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Flatted | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
1214811VX778TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
Таблицы данных |
12000X778 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
13AT2SWITCH TOGGLE DPDT 5A 250V |
0 |
|
Таблицы данных |
AT | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 250 V | 30 V | Standard Round | 17.53mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
104TL1-1SWITCH TOGGLE 4PDT 15A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
13AT66SWITCH TOGGLE DPDT 5A 250V |
0 |
|
Таблицы данных |
AT | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 250 V | 30 V | Flatted | 11.18mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
13AT275-T2SWITCH TOGGLE 3PDT 5A 115V |
0 |
|
Таблицы данных |
AT | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 5A (AC/DC) | 115 V | 28 V | Standard Round | 17.53mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
6664038KTOGGLE SWITCH 6000 MIL GRADE |
0 |
|
- |
6000 | Bulk | Active | Panel Mount | 4P3T | On-On-On | 10A (AC), 6.5A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
4TL66-1LSWITCH TOGGLE 4PDT 15A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
11TW401-61SWITCH TOGGLE SPST-NO 5A 125V |
0 |
|
Таблицы данных |
TW | Bulk | Obsolete | Panel Mount | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Flatted | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
