БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12149AGK3VX629SWITCH TOGGLE DPDT 4A 125V |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 4A (AC/DC) | 125 V | 30 V | Locking Lever | 20.60mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
|
|
12146DGTOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DP3T | On-On | 100mA (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
4TL62-7SWITCH TOGGLE 4PDT 10A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | 4PDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Flatted | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
12246AD2GK0382VTOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
Таблицы данных |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12149AD2G0383VX408TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 4A (DC) | - | 30 V | Locking Lever | 19.38mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
4TL62-3SWITCH TOGGLE 4PDT 15A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | 4PDT | On-On | 15A (AC) | 125 V | - | Flatted | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

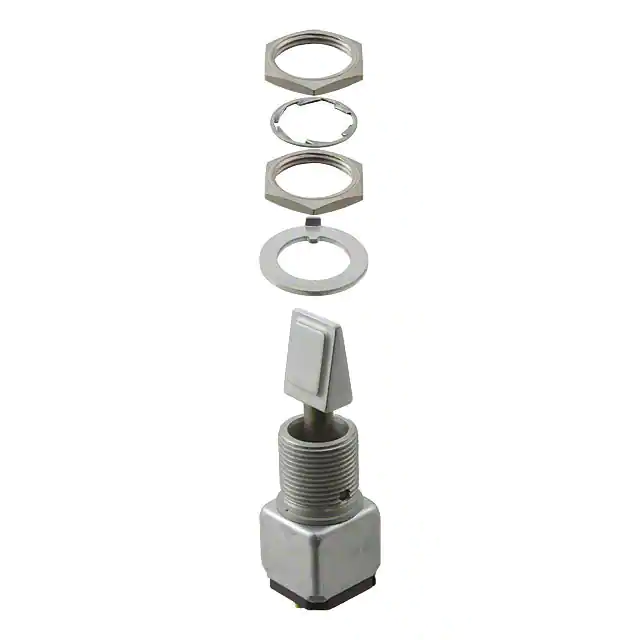

11TW418-7SWITCH TOGGLE SPDT 5A 125V |
0 |
|
Таблицы данных |
TW | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Flatted | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
12146AG2VX408SWITCH TOGGLE DPDT 4A 125V |
0 |
|
Таблицы данных |
12000 | Bulk | Active | Panel Mount | DPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Front Panel Sealing | -40°C ~ 85°C |
|
|
102TL2-50KSWITCH TOGGLE DPDT 7.5A 115V |
0 |
|
Таблицы данных |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On-Mom | 7.5A (AC/DC) | 115 V | 30 V | Locking Lever | 26.67mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
13AT1-TSWITCH TOGGLE DPDT 5A 250V |
0 |
|
Таблицы данных |
AT | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 250 V | 30 V | Standard Round | 17.53mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
1TL887-1SWITCH TOGGLE SPDT 15A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
12167AD2X545TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | 4PDT | Mom-Off-Mom | 4A (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
AML25GBC2DA04YYSWITCH TOGGLE SP3T 0.1A 125V |
0 |
|
Таблицы данных |
AML25 | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 100mA (AC/DC) | 125 V | 125 V | Paddle | - | Illuminated | LED, Yellow | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | Jumper needed to achieve triple throw | - |
|
|
12247X778SWITCH TOGGLE DPDT 4A 28VDC |
0 |
|
- |
12000X778 | Bulk | Active | Panel Mount | 4PDT | Mom-Off-Mom | 4A (DC) | - | 28 V | Standard Round | 17.30mm | Non-Illuminated | - | - | PC Pin | Circular - 12.00mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
12248X778TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
Таблицы данных |
12000X778 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | PC Pin | Circular - 12.00mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
1224712X778TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
Таблицы данных |
12000X778 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | PC Pin | Circular - 12.00mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
12245X778TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
Таблицы данных |
12000X778 | Bulk | Active | Panel Mount | DPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | PC Pin | Circular - 12.00mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
12244X778TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
Таблицы данных |
12000X778 | Bulk | Active | Panel Mount | DP3T | On-On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | PC Pin | Circular - 12.00mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
12149AGK0383VTOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 4A (DC) | - | 30 V | Locking Lever | 19.38mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
664903KB3VTOGGLE SWITCH 6000 MIL GRADE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
