БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1NT20-7NSWITCH TOGGLE SPDT 10A 125V |
0 |
|
Таблицы данных |
NT | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Black Actuator | - |
|
|
1NT20-7ESWITCH TOGGLE SPDT 10A 125V |
0 |
|
Таблицы данных |
NT | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Black Actuator | - |
|
|
5249MADBTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
1520237-1SWITCH TOGGLE DPST 16A 125V |
0 |
|
Таблицы данных |
- | Bulk | Active | Panel Mount | DPST | On-Off | 16A (AC) | 125 V | - | Standard Round | 17.30mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
|
IM251-63SWITCH TOGGLE 4PDT 15A 125V |
0 |
|
- |
I | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

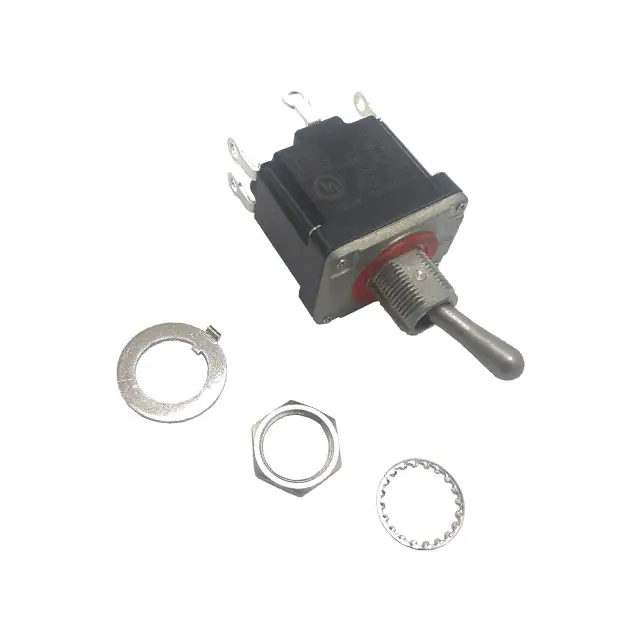

PT201SZQSWITCH TOGGLE DPDT 15A 277V |
0 |
|
Таблицы данных |
PT | Tray | Active | Panel Mount | DPDT | On-On | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
|
5646ADGB2X408TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
TT41NGPC9T1/4SWITCH TOGGLE 4PDT 3A 125V |
0 |
|
Таблицы данных |
TT | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 3A (AC/DC) | 125 V | 28 V | Standard Round | 10.69mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
A232K12KAQSWITCH TOGGLE SP3T 6A 125V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount, Right Angle | SP3T | On-On-On | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A233P41DZQSWITCH TOGGLE SP3T 6A 125V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 6.35mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A423P41YZQSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | 4PDT | On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 6.35mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A431S1YZQSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | 4PDT | On-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
IL256-52/HDW BULKSWITCH TOGGLE 4PDT 15A 125V |
0 |
|
- |
I | Bulk | Active | Panel Mount | 4PDT | On-On | 15A (AC) | 125 V | - | Standard Round | 10.31mm | Non-Illuminated | - | - | PC Pin | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
IL251-NBL8SWITCH TOGGLE 4PDT 15A 125V |
0 |
|
- |
I | Bulk | Active | Panel Mount | 4PDT | On-On | 15A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5266MABSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Таблицы данных |
5000M | Bulk | Active | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5662AB9SWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Panel Mount | 4PDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5667AB9SWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Panel Mount | 4PDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
STJ2E1-R8SWITCH TOGGLE DPDT 16A 24V |
0 |
|
- |
ST | Bulk | Active | Panel Mount | DPDT | On-Off-On | 16A (DC) | - | 24 V | Paddle | 22.35mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STJ251-R8SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
ST | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Paddle | 22.35mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
631H/2T2VTOGGLE SWITCH 600H HIGH POWER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
