БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IK251-B3SWITCH TOGGLE 4PST 15A 125V |
0 |
|
- |
I | Bulk | Active | Panel Mount | 4PST | On-Off | 15A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2581-633-018SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Green | 18 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

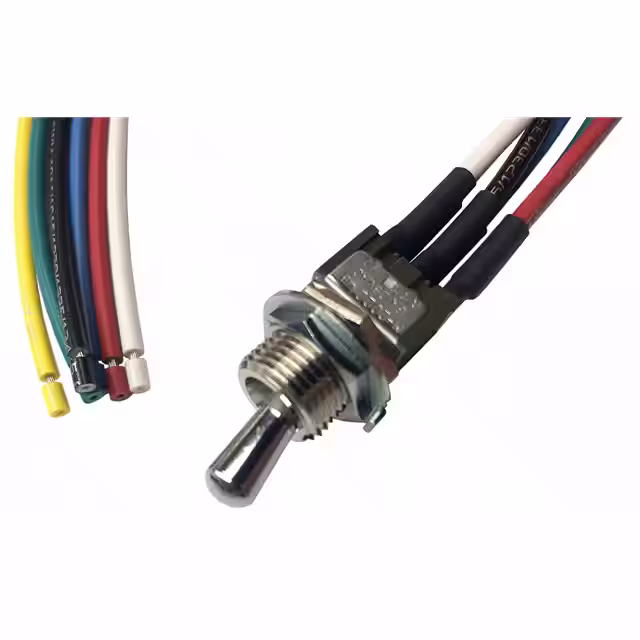

M2022BB1W01/CUL-WLSWITCH TOGGLE DPDT 6A 125V |
2 |
|
Таблицы данных |
M | Box | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
5247Y6CDB4NTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
IK251-78SWITCH TOGGLE 4PST 15A 125V |
0 |
|
- |
I | Bulk | Active | Panel Mount | 4PST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

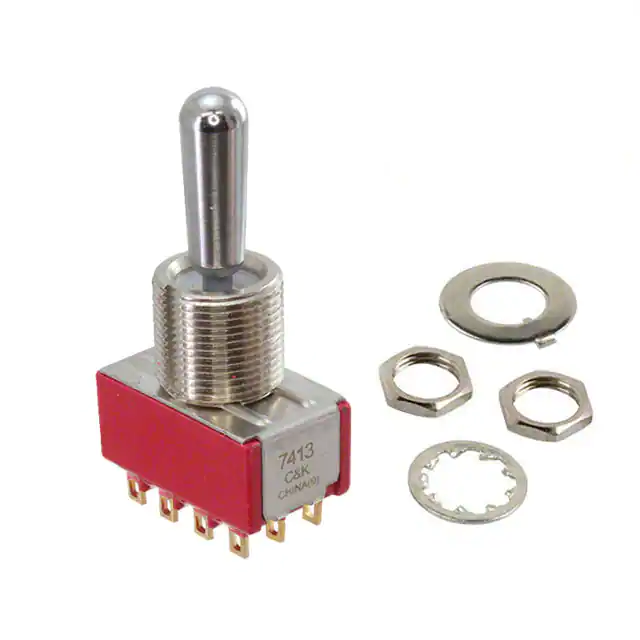

7413TCWZGESWITCH TOGGLE DP3T 5A 120V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | DP3T | On-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
21146NASWITCH TOGGLE DPDT 4A 125V |
0 |
|
Таблицы данных |
21000N | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
A223M1D9CBSWITCH TOGGLE DPDT 0.5VA 28V |
0 |
|
Таблицы данных |
A | Bulk | Active | Through Hole | DPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A323S1YZ3QSWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
WT223M1D1ABSWITCH TOGGLE DPDT 0.5VA 28V |
0 |
|
Таблицы данных |
WT | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 7.60mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
5632MATOGGLE SWITCH 5000 MINIATURE |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Panel Mount | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
5249WAB9ULCSATOGGLE SWITCH 5000 MINIATURE |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
5237MABTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Таблицы данных |
5000M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
LT-2580-501-024SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 24 VAC/DC | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2581-611-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2581-604-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | - | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2581-511-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2581-644-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Blue | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2581-522-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Amber | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2581-601-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
Таблицы данных |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
