БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT-2564-711-250SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Neon, Red | 250 VAC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
MN33LL4G03BUSHING MOUNT MINIATURE TOGGLE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5446WWCDBULTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
LT-2581-701-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2581-755-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Clear | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2581-704-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | - | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2571-701-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2581-711-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
MN23WBW01BUSHING MOUNT MINIATURE TOGGLE |
0 |
|
- |
M | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 20.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
7401K2ZGESWITCH TOGGLE 4PDT 5A 120V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A232P11H3ZQSWITCH TOGGLE DPDT 6A 28V |
0 |
|
- |
A | Bulk | Active | Panel Mount | DPDT | On-On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 21.34mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | - | - |
|
|
LT-2571-755-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Clear | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

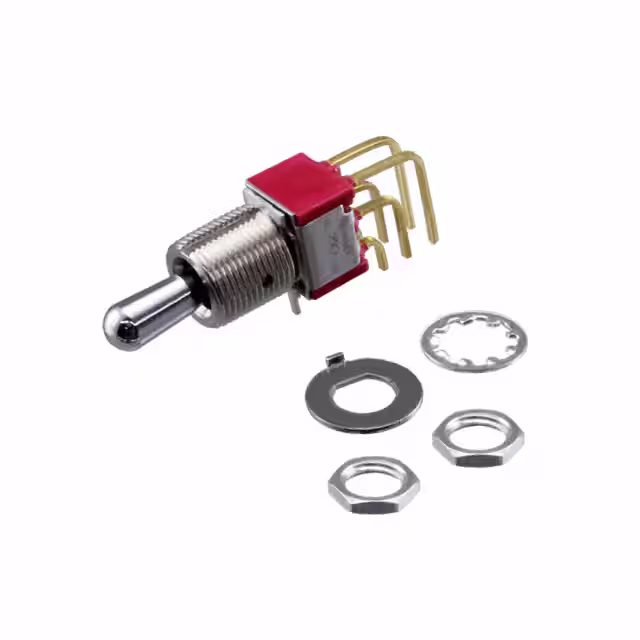

7211T1PAV2BESWITCH TOGGLE SP3T 0.4VA 20V |
0 |
|
Таблицы данных |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Anti-Rotation | 12.37mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
1520237-4SWITCH TOGGLE SPST 8A 125V |
0 |
|
Таблицы данных |
- | Bulk | Active | Panel Mount | SPST | On-Off | 8A (AC) | 125 V | - | Standard Round | 20.27mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
|
A221T11TCQSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 11.89mm | Non-Illuminated | - | - | PC Pin | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223P31Y9V30BSWITCH TOGGLE DPDT 0.5VA 28V |
0 |
|
Таблицы данных |
A | Bulk | Active | Through Hole | DPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223P41DZQSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 6.35mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A231P32Y5ZQSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A234T1TZQSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A235P31H3ZQSWITCH TOGGLE SP3T 6A 125V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | SP3T | Mom-On-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
