Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A231P31DZBSWITCH TOGGLE DPDT 0.5VA 28V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 0.5VA (AC/DC) | 28 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A231P31HZBSWITCH TOGGLE DPDT 0.5VA 28V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 0.5VA (AC/DC) | 28 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
WT223M1D9V30GSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
WT | Bulk | Active | Through Hole | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 7.60mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
WT226S1D1CGSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
WT | Bulk | Active | Through Hole | DPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 12.90mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
5236Y4AKBX902TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
31NT91-61SWITCH TOGGLE SPST-NO 10A 125V |
0 |
|
Таблицы данных |
NT | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|

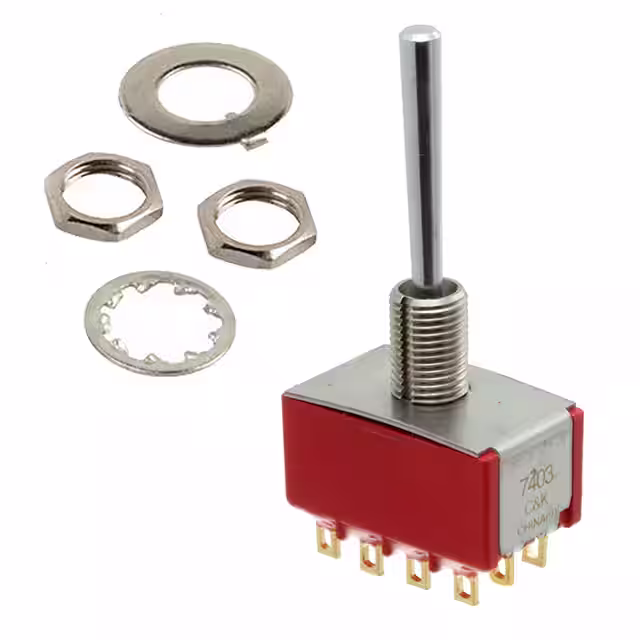

7403LYZGESWITCH TOGGLE 4PDT 5A 120V |
1 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 21.34mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5249WCDB16X404SWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
6GM5U-73SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5242WA7TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
7405SYZGESWITCH TOGGLE 4PDT 5A 120V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | 4PDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7408SYZGESWITCH TOGGLE 4PDT 5A 120V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | 4PDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
LT-2581-113-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Green/Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2581-144-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Blue | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2581-111-012SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
MTL406PASWITCH TOGGLE DP3T 6A 125V |
0 |
|
Таблицы данных |
MTL Green | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Locking Lever | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -20°C ~ 80°C |
|
|
5244MTHCDBTOGGLE SWITCH 5000 MINIATURE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MNL12LCFW01LED TIPPED TOGGLE |
0 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -10°C ~ 55°C |
|
7401SYZGESWITCH TOGGLE 4PDT 5A 120V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
644H2RTOGGLE SWITCH 600H HIGH POWER |
0 |
|
Таблицы данных |
600H | Bulk | Active | Panel Mount | DP3T | Mom-On-Mom | 15A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
