БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN23BB1G01-AT402SBUSHING MOUNT MINIATURE TOGGLE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN18B2B1W01-VB-AT401ASWITCH TOGGLE |
0 |
|
- |
M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
MN12B2B1G03-AT401ABUSHING MOUNT MINIATURE TOGGLE |
0 |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
T103KZBESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Таблицы данных |
T | Tray | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 16.26mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
D22025LBSWITCH TOGGLE DPDT 0.4VA 48V |
0 |
|
Таблицы данных |
D2 | Bulk | Active | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|
|
TL46WW00500SWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
SW236AD7SWITCH TOGGLE SPDT 4A 30V |
0 |
|
Таблицы данных |
S | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 4A (DC) | - | 30 V | Standard Round | 7.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
|
7201P3YZGE22SWITCH TOGGLE DPDT 5A 120V |
0 |
|
Таблицы данных |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
|
|
LT-1511-530-012/2 HEXSWITCH TOGGLE SPST 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Green | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

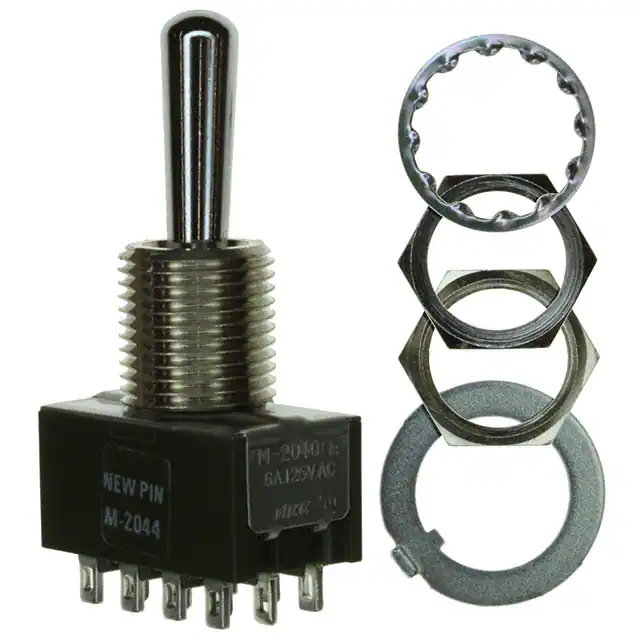

M2044B2B1W01SWITCH TOGGLE DP3T 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
MTM206NPCSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
MTM Green | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 6.90mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
5232MIWRADTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Panel Mount | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5657AB9SWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Panel Mount | 3PDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5658AB9SWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Panel Mount | 3PDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5546AB8TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
637HTTOGGLE SWITCH 600H HIGH POWER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

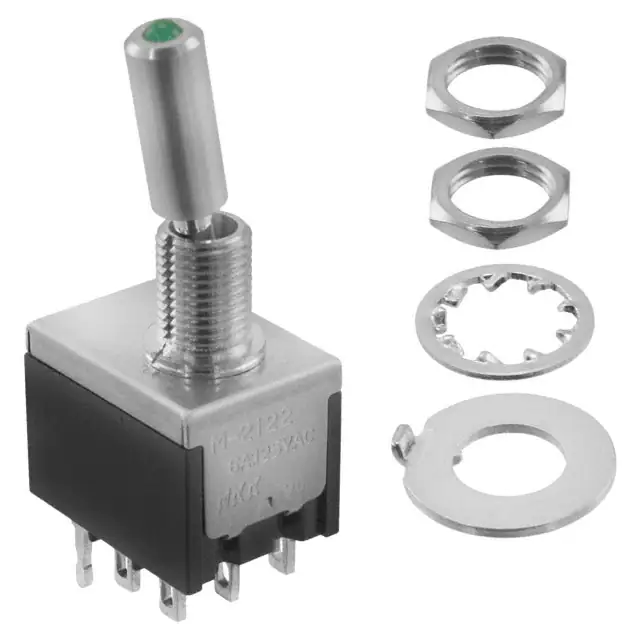

M2122TFW01SWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green | 2.2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
12TS95-7SWITCH TOGGLE DPDT 20A 125V |
0 |
|
Таблицы данных |
TS | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
|
21137NASWITCH TOGGLE SPDT 4A 125V |
0 |
|
Таблицы данных |
21000N | Bulk | Active | Panel Mount, Right Angle | SPDT | Mom-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
2NT1-2SWITCH TOGGLE DPST 15A 125V |
0 |
|
Таблицы данных |
NT | Bulk | Obsolete | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
