БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A126S1YCQSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | SPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
6FA53-78/TABS/2 HEXSWITCH TOGGLE SPST-NC 15A 125V |
0 |
|
- |
F | Bulk | Active | Panel Mount | SPST-NC | Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
7213MDZQESWITCH TOGGLE SP3T 5A 120V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
7103K9V3BESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5244WTH1RAB16X404TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DP3T | On-On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
2FA53-E3/TABSSWITCH TOGGLE SPST 15A 125V |
0 |
|
- |
F | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 50.80mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
7201SDZQISWITCH TOGGLE DPDT 5A 120V |
0 |
|
Таблицы данных |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Potted | -30°C ~ 85°C |
|
|
7203P4YCQESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
CA204-52SWITCH TOGGLE SPST 20A 125V |
0 |
|
- |
C | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 10.31mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
7205P3HZQESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN29BB1W03BUSHING MOUNT MINIATURE TOGGLE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A123S1CWCQSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
7207SCWZQESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Таблицы данных |
7000 | Tray | Active | Panel Mount | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E201SF1AV2BESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Таблицы данных |
E | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | ESD Conductive Bushing | -30°C ~ 85°C |
|
M2042SS1W03SWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7215SD9AQESWITCH TOGGLE SP3T 5A 120V |
0 |
|
Таблицы данных |
7000 | Tray | Active | Through Hole, Right Angle | SP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

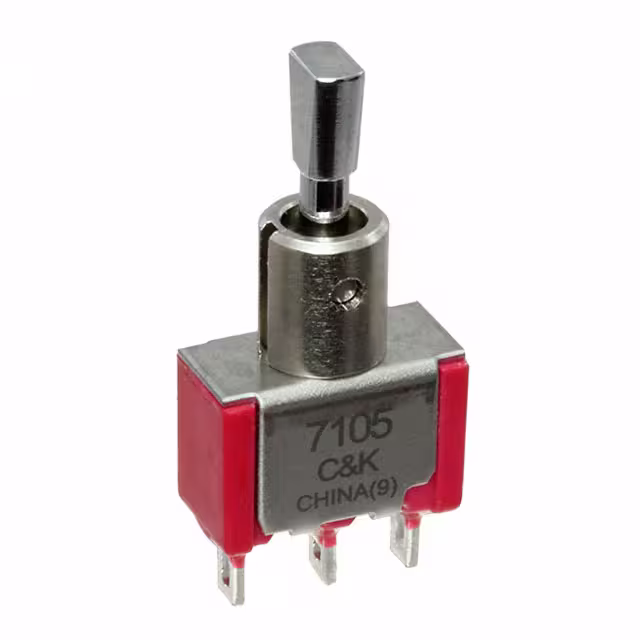

7105P4D9ZQESWITCH TOGGLE SPDT 5A 120V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | Solder Lug | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5636AGBSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Matte Black Finish | -40°C ~ 85°C |
|
T103SCFZQESWITCH TOGGLE SPDT 2A 120V |
0 |
|
Таблицы данных |
T | Tray | Active | Panel Mount | SPDT | On-Off-On | 2A (AC/DC) | 120 V | 28 V | Standard Round | 7.11mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7203K2CGESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
