Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW-T4-2B-E-TA1-01SWITCH TOGGLE SPDT 12A 125V |
194 |
|
Таблицы данных |
SW | Box | Active | Panel Mount | SPDT | On-On | 12A (AC) | 125 V | - | Standard Round with Cap | 16.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | IP68 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|

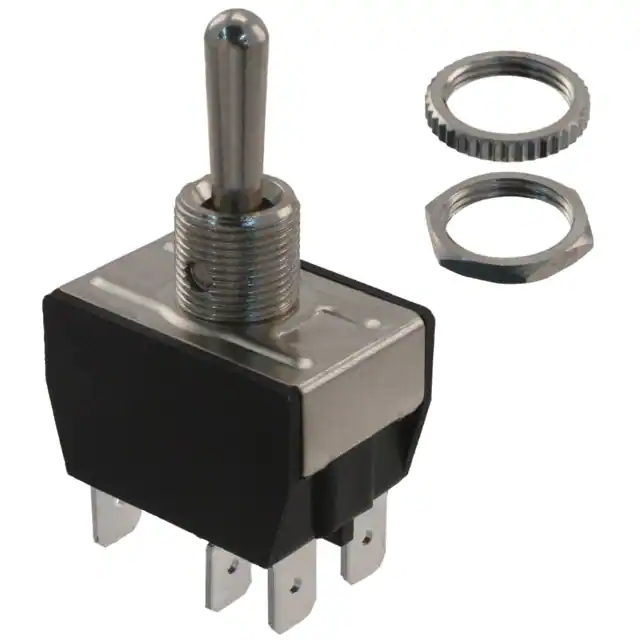

C3970BASWITCH TOGGLE DPDT 16A 125V |
0 |
|
Таблицы данных |
3900 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 16A (AC), 14A (DC) | 125 V | 36 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|

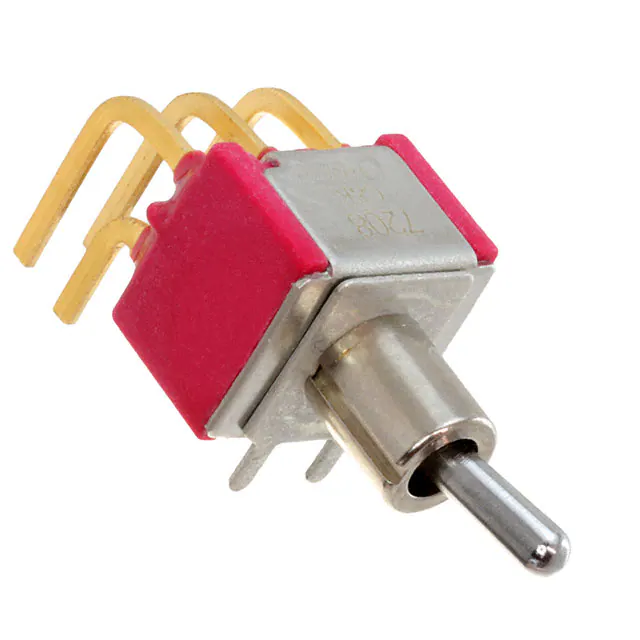

7208MD9ABESWITCH TOGGLE DPDT 0.4VA 20V |
399 |
|
Таблицы данных |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

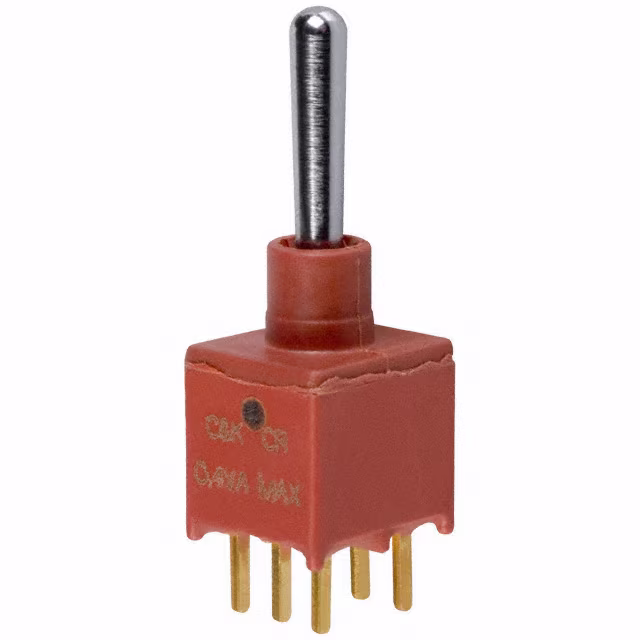

ET23SD1CBESWITCH TOGGLE DPDT 0.4VA 20V |
176 |
|
Таблицы данных |
ET | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

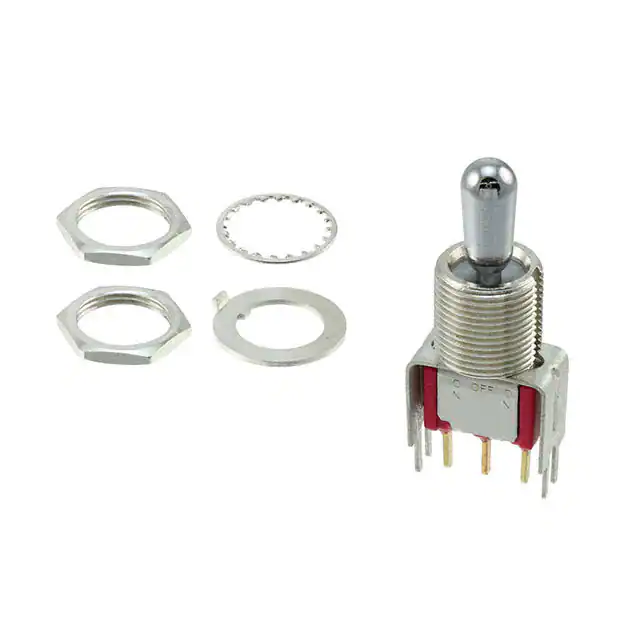

7103T1CWV3GESWITCH TOGGLE SPDT 5A 120V |
1,103 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

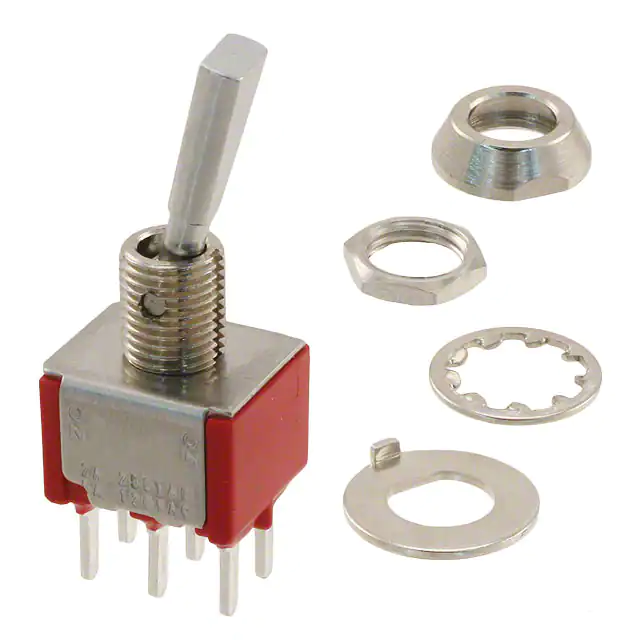

7201P3DCQESWITCH TOGGLE DPDT 5A 120V |
101 |
|
Таблицы данных |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E203MD1AV2BESWITCH TOGGLE DPDT 0.4VA 20V |
176 |
|
Таблицы данных |
E | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

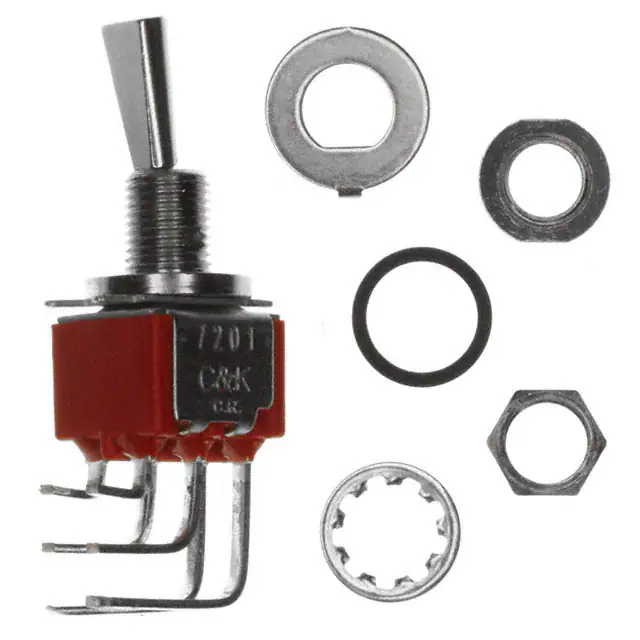

7201P3CWAV2SESWITCH TOGGLE DPDT 5A 120V |
103 |
|
Таблицы данных |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1825219-6SWITCH TOGGLE SPDT 0.4VA 20V |
210 |
|
Таблицы данных |
TT | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.61mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TT11EGPC1SWITCH TOGGLE SPDT 0.4VA 20V |
272 |
|
Таблицы данных |
TT | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.61mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7203P4DCBE22SWITCH TOGGLE DPDT 0.4VA 20V |
329 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
|
4TL1-6SWITCH TOGGLE 4PST-NO 10A 125V |
18 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | 4PST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

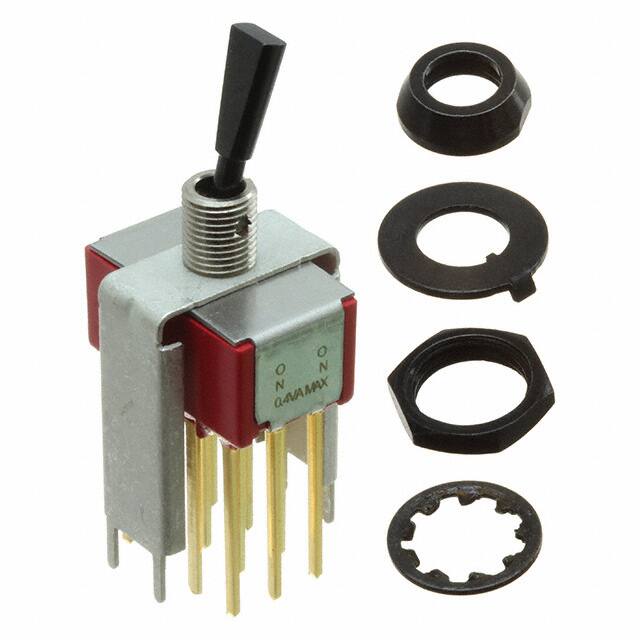

7401P3DV8BE2SWITCH TOGGLE 4PDT 0.4VA 20V |
104 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
|
7303P3Y9V7GESWITCH TOGGLE 3PDT 5A 120V |
2,149 |
|
Таблицы данных |
7000 | Tray | Active | Through Hole | 3PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7-6437630-4SWITCH TOGGLE SPDT 20A 125V |
430 |
|
Таблицы данных |
AW | Bulk | Active | Panel Mount | SPDT | On-Mom | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
7411MD9AV2BESWITCH TOGGLE DP3T 0.4VA 20V |
117 |
|
Таблицы данных |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | DP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

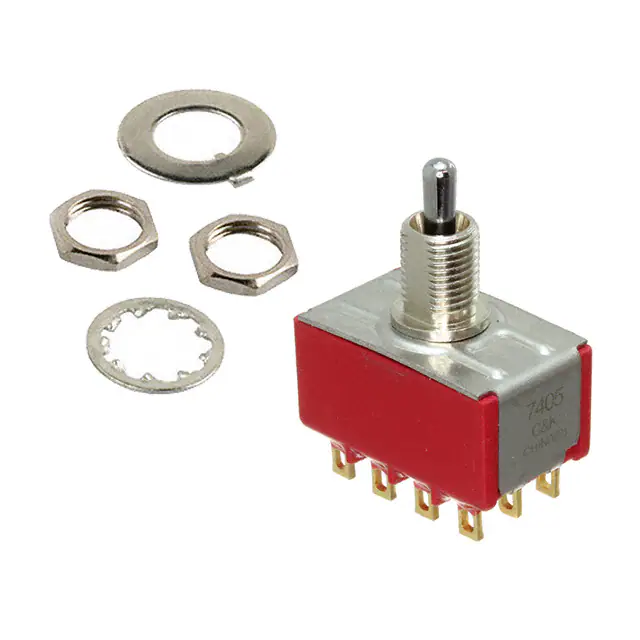

7405MHZBESWITCH TOGGLE 4PDT 0.4VA 20V |
189 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | 4PDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2MT1-7SWITCH TOGGLE DPDT 5A 28V |
5 |
|
Таблицы данных |
MT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (DC) | - | 28 V | Standard Round | 16.87mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 12.45mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
1-6437630-1SWITCH TOGGLE DPDT 20A 125V |
480 |
|
Таблицы данных |
AW | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Sealed | -20°C ~ 70°C |
|
|
11148AGSWITCH TOGGLE DPDT 4A 125V |
44 |
|
Таблицы данных |
11000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
