БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

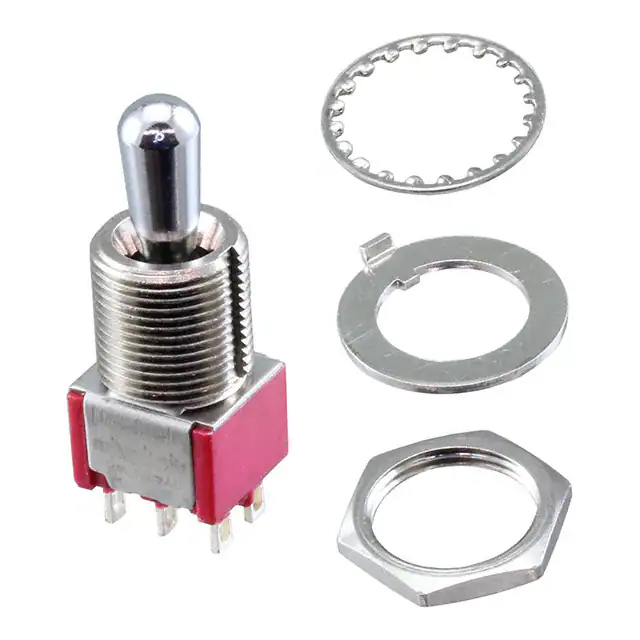

7211T1ZQESWITCH TOGGLE SP3T 5A 120V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
SW236A13SWITCH TOGGLE SPDT 5A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
|
5248ABSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
7109P3YZGISWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
3-1571920-8SWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Таблицы данных |
MTA Green | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
M2022LL1G03SWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A127S1YZBSWITCH TOGGLE SPDT 0.5VA 28V |
0 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A121S1D9AV2BSWITCH TOGGLE SPDT 0.5VA 28V |
0 |
|
Таблицы данных |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
M2024LL3W01SWITCH TOGGLE SP3T 6A 125V |
0 |
|
Таблицы данных |
M | Tray | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
S301T/CSWITCH TOGGLE SPST 15A 125V |
0 |
|
Таблицы данных |
S300 | Bulk | Obsolete | Panel Mount | SPST | On-Off | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
MN23SS2W13SWITCH TOGGLE |
0 |
|
- |
M | Bulk | Active | Through Hole | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
7101K19AW4BESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
S3901BESWITCH TOGGLE SPST-NO 16A 125V |
0 |
|
Таблицы данных |
3900 | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 16A (AC), 14A (DC) | 125 V | 36 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | - |
|
|
5236MIWRCDBSWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Таблицы данных |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
T102SH9CQESWITCH TOGGLE SPST 2A 120V |
0 |
|
Таблицы данных |
T | Tray | Active | Through Hole | SPST | On-Off | 2A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201SPY1ZQESWITCH TOGGLE DPDT 5A 28V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
1004P6T9B1M7RESWITCH TOGGLE DP3T 0.4VA 20V |
0 |
|
Таблицы данных |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | DP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 21.34mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
2FC53-78/TABS/HDW ASSMSWITCH TOGGLE SPDT 15A 125V |
0 |
|
- |
F | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
2GC51-78SWITCH TOGGLE SPDT 15A 125V |
0 |
|
- |
G | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2FB41-73SWITCH TOGGLE SPDT |
0 |
|
- |
F | Bulk | Active | Panel Mount | SPDT | On-On | - | - | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
