Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN11BB1W03BUSHING MOUNT MINIATURE TOGGLE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN11SD3W01-BBSWITCH TOGGLE |
0 |
|
- |
M | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
MN11SD3W01-CBSWITCH TOGGLE |
0 |
|
- |
M | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
MN11SD3W01-CCSWITCH TOGGLE |
0 |
|
- |
M | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
TL36Y004000TOGGLE SWITCH SMT TL PCB MOUNT |
0 |
|
- |
TL | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
E103SYCQESWITCH TOGGLE SPDT 7.5A 125V |
0 |
|
Таблицы данных |
E | Bulk | Active | Panel Mount | SPDT | On-Off-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

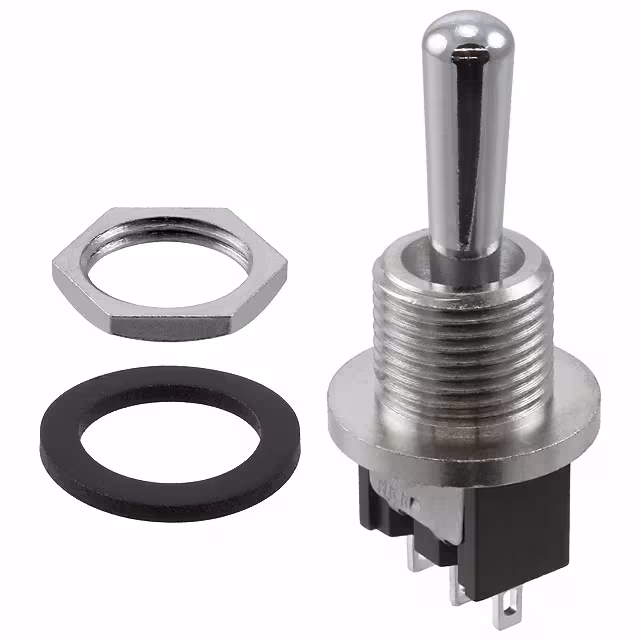

M2019B2B3W01SWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ADP1NM6RTSWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Таблицы данных |
34A | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 16.26mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
M2042ES2W40SWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET01MD1AQESWITCH TOGGLE SPDT 3A 120V |
0 |
|
Таблицы данных |
ET | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ET01LD1V31BESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Таблицы данных |
ET | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 8.13mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | - | -30°C ~ 85°C |
|
|
B23AH-GASWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Таблицы данных |
B | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.01mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1571927-2SWITCH TOGGLE SPDT 6A 125V |
0 |
|
- |
MTL Green | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Locking Lever | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
U11SY9V8QESWITCH TOGGLE SPDT 5A 120V |
0 |
|
Таблицы данных |
7000 | Tray | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
E107SYCBESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Таблицы данных |
E | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ST34TE00SWITCH TOGGLE 3PDT 24A 125V |
0 |
|
Таблицы данных |
ST3 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 24A (AC) | 125 V | - | Standard Round | 21.70mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
7101SPYAV2GESWITCH TOGGLE SPDT 5A 120V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A18KVSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
A | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Lever for Cap | 5.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
B1RKV-AHSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
B | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Gray Actuator | -30°C ~ 85°C |
|
|
A15KH-AASWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Actuator | -30°C ~ 85°C |
