БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100AWDP1T1B1M2REHSWITCH TOGGLE DPDT 0.4VA 20V |
641 |
|
Таблицы данных |
100A | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

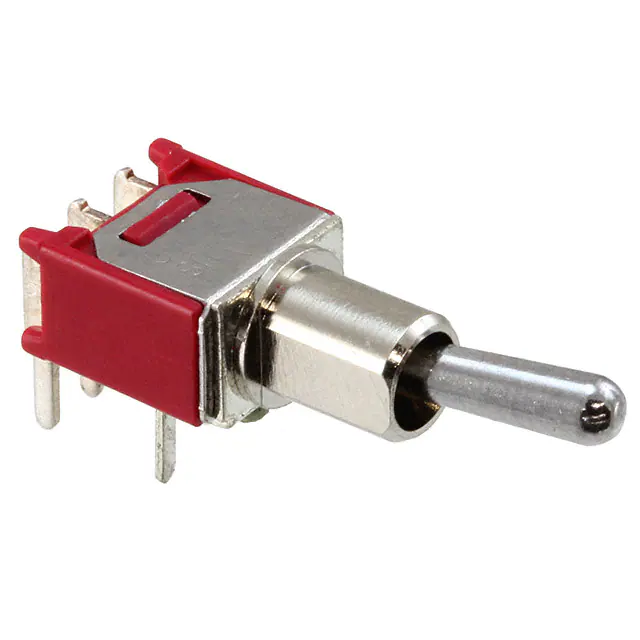

200MSP2T3B2M6QESWITCH TOGGLE SPDT 3A 120V |
211 |
|
Таблицы данных |
200 | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Standard Round | 7.37mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
SW-T2-4B-A-T1-S-03SWITCH TOGGLE DPDT 5A 125V |
241 |
|
Таблицы данных |
SW | Box | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.60mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
100DP1T2B4VS2QESWITCH TOGGLE DPDT 5A 120V |
149 |
|
Таблицы данных |
100 | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP4T2B4M6RESWITCH TOGGLE SPDT 0.4VA 20V |
594 |
|
Таблицы данных |
100 | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP2T1B9VS2REHSWITCH TOGGLE SPDT 0.4VA 20V |
158 |
|
Таблицы данных |
100 | Tray | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T1B2M6CESWITCH TOGGLE DPDT 3A 120V |
124 |
|
Таблицы данных |
200 | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

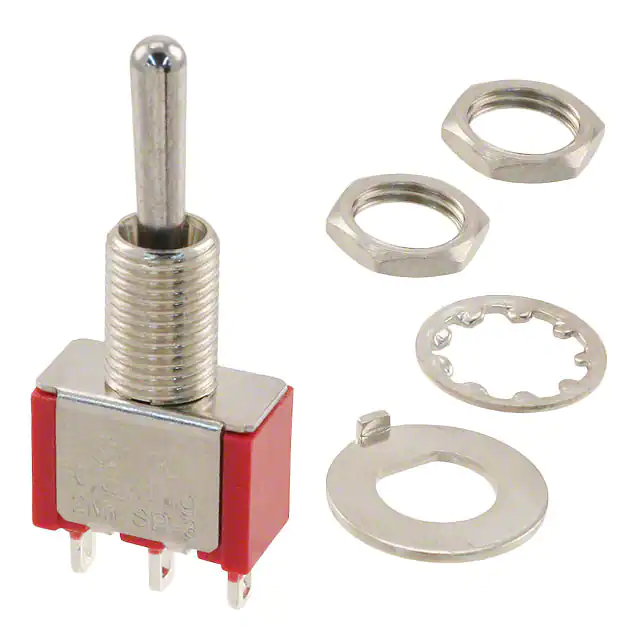

2M1-SP3-T1-B1-M1QESWITCH TOGGLE SPDT 5A 125V |
240 |
|
Таблицы данных |
2M | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

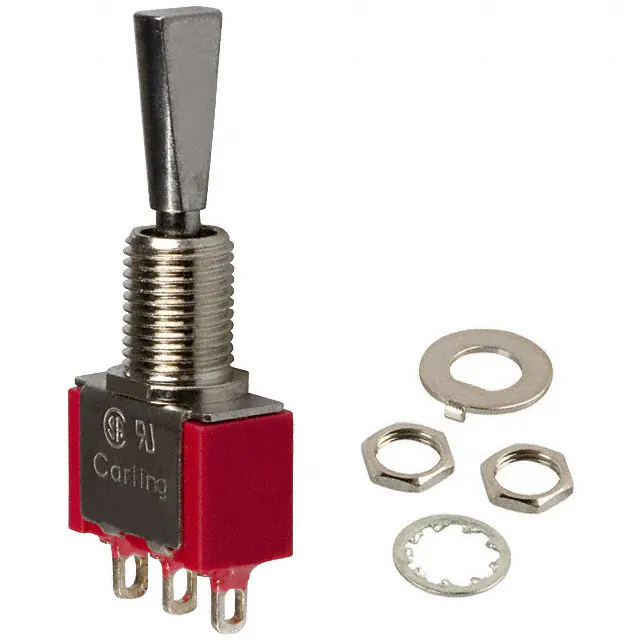

2M1-SP2-T6-B1-M1QESWITCH TOGGLE SPDT 5A 125V |
439 |
|
Таблицы данных |
2M | Bulk | Active | Panel Mount | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Flatted | 12.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

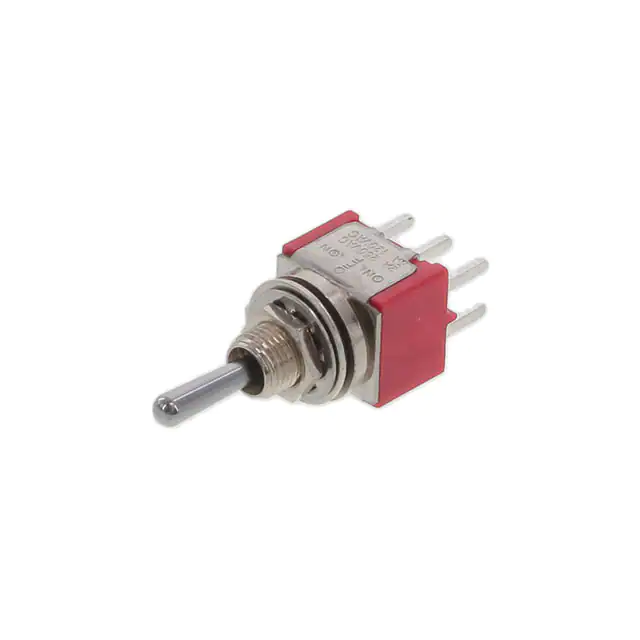

100DP3T1B9M2QEHSWITCH TOGGLE DPDT 5A 120V |
910 |
|
Таблицы данных |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

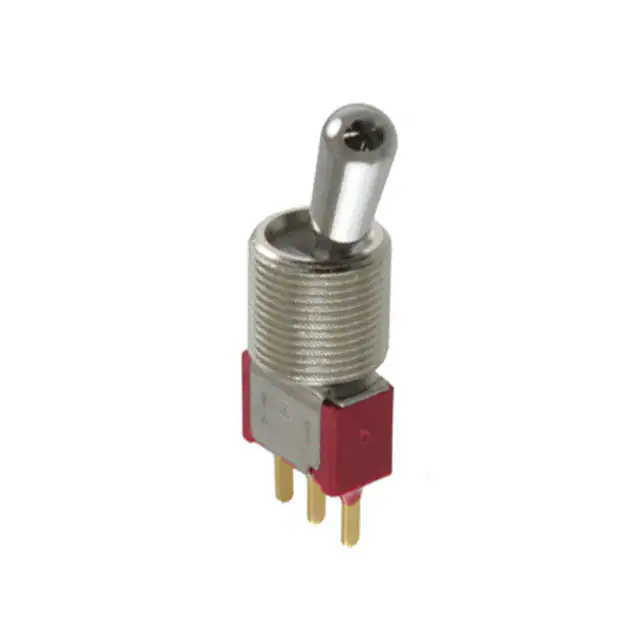

100SP1T7B13M3RESWITCH TOGGLE SPDT 0.4VA 20V |
283 |
|
Таблицы данных |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.00mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
6-1825136-2SWITCH TOGGLE SPDT 0.4VA 20V |
226 |
|
Таблицы данных |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ATE1D-5M3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
1,096 |
|
Таблицы данных |
ATE | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|

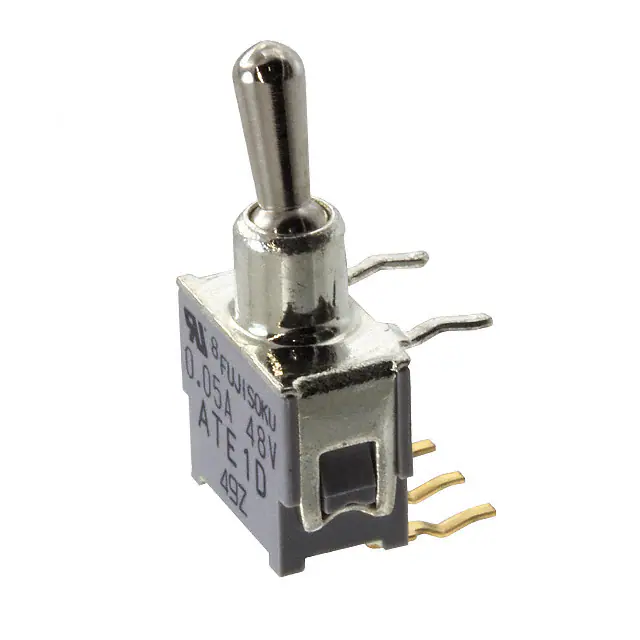

ATE1D-6M3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
313 |
|
Таблицы данных |
ATE | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
5-1825137-0SWITCH TOGGLE SPDT 0.4VA 20V |
478 |
|
Таблицы данных |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T2B2M2RESWITCH TOGGLE DPDT 0.4VA 20V |
144 |
|
Таблицы данных |
200 | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

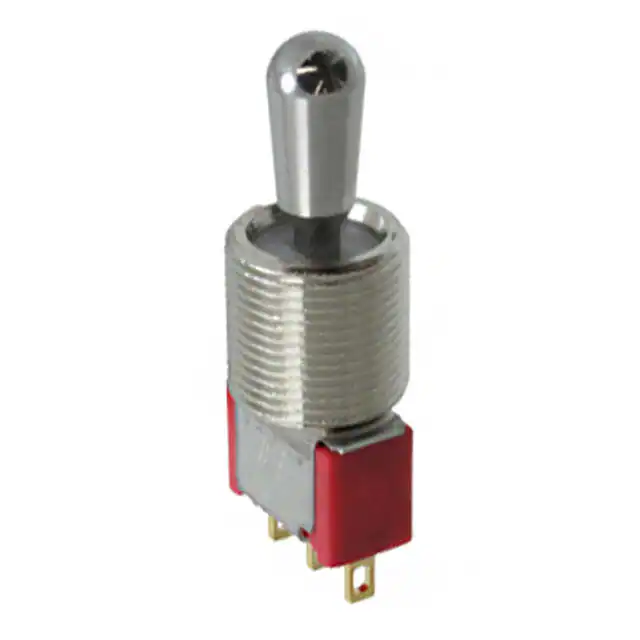

100SP3T7B13M1RESWITCH TOGGLE SPDT 0.4VA 20V |
160 |
|
Таблицы данных |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ATE1G-2M3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
334 |
|
Таблицы данных |
ATE | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
TMS1T5B2M2RESWITCH TOGGLE SPDT 0.4VA 20V |
226 |
|
Таблицы данных |
- | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
100DP1T1B4VS2RESWITCH TOGGLE DPDT 0.4VA 20V |
476 |
|
Таблицы данных |
100 | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
