БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

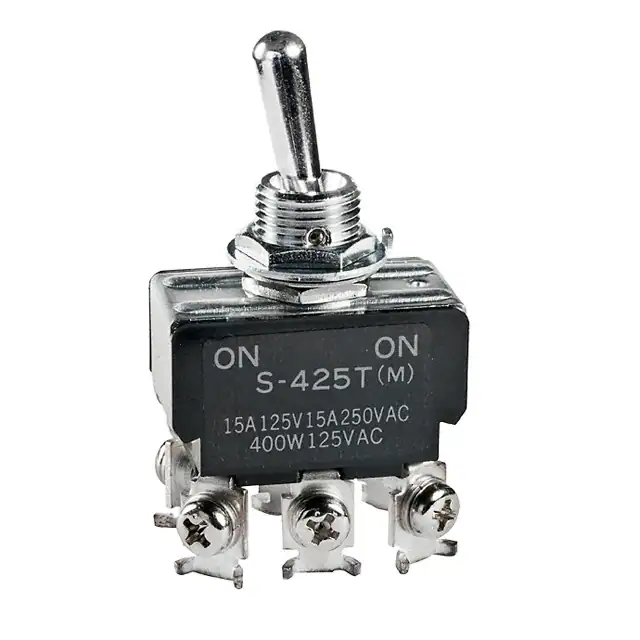

S425TSWITCH TOGGLE DPDT 15A 125V |
3 |
|
Таблицы данных |
S400 | Bulk | Active | Panel Mount | DPDT | On-Mom | 15A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
651NH/2SWITCH TOGGLE 3PST 15A 250V |
0 |
|
Таблицы данных |
600NH | Bulk | Active | Panel Mount | 3PST | On-Off | 15A (AC) | 250 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
S3AW-WLSWITCH TOGGLE SPDT 15A 125V |
0 |
|
Таблицы данных |
S | Box | Active | Panel Mount | SPDT | On-Off-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
11NT1-2SWITCH TOGGLE SPST 15A 125V |
3 |
|
Таблицы данных |
NT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -65°C ~ 71°C |
|
7-6437630-0SWITCH TOGGLE SPDT 20A 125V |
0 |
|
Таблицы данных |
AW | Bulk | Active | Panel Mount | SPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
631H/21VSWITCH TOGGLE SPST 15A 250V |
3 |
|
Таблицы данных |
600H | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 250 V | - | Locking Lever | 19.40mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | - | - | -20°C ~ 55°C |
|
5647MABSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
5000M | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

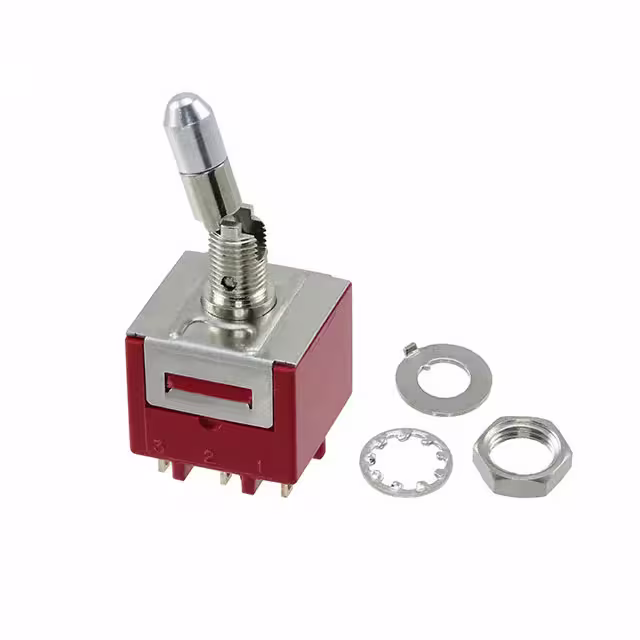

9201KZQESWITCH TOGGLE DPDT 6A 120V |
4 |
|
Таблицы данных |
9000 | Tray | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Locking Lever | 16.51mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M83731/10-211SWITCH TOGGLE DPDT 5A 115V |
0 |
|
Таблицы данных |
M83731 | Tray | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 115 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|
12TW1-7SWITCH TOGGLE DPDT 5A 125V |
0 |
|
Таблицы данных |
TW | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
AML25GBF2CA01RGSWITCH TOGGLE DPDT 3A 125V |
0 |
|
Таблицы данных |
AML25 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Paddle | - | Illuminated | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | - | - |
|
25ET61-TSWITCH TOGGLE SPDT 4A 28V |
0 |
|
Таблицы данных |
ET | Bulk | Active | Panel Mount | SPDT | On-Mom | 4A (DC) | - | 28 V | Standard Round | 17.53mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Magnetic Hold | -65°C ~ 71°C |
|

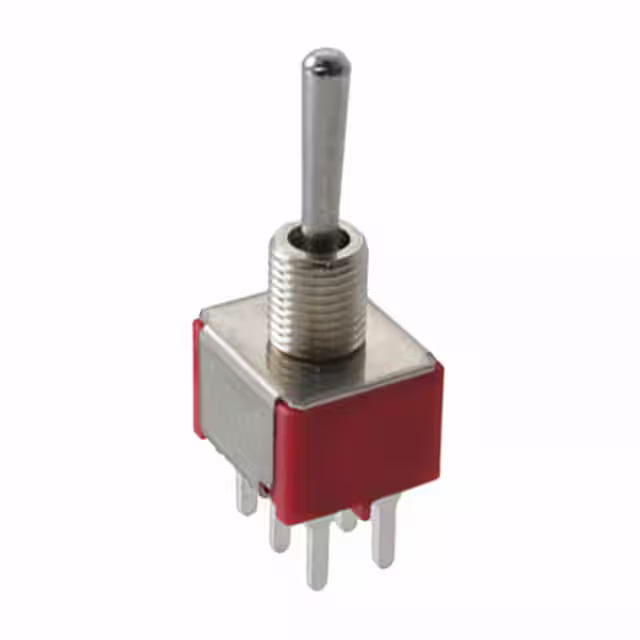

100DP3T1B3M2QESWITCH TOGGLE DPDT 5A 120V |
6 |
|
Таблицы данных |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

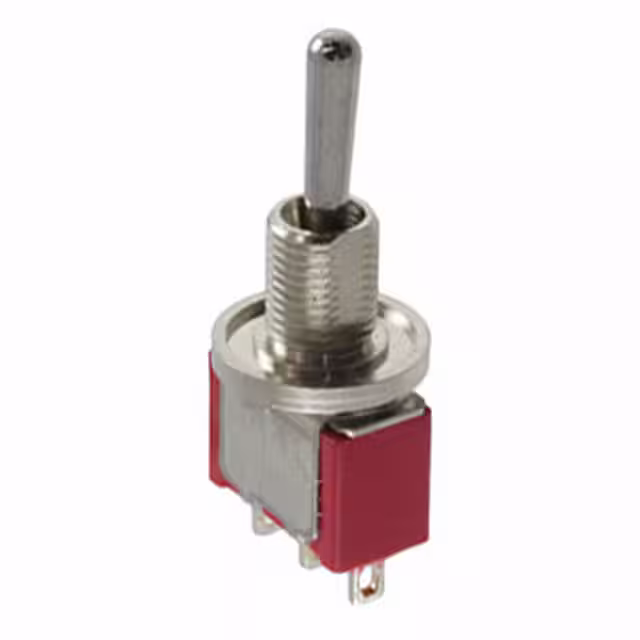

100SP3T1B9M1QESWITCH TOGGLE SPDT 5A 120V |
2 |
|
Таблицы данных |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

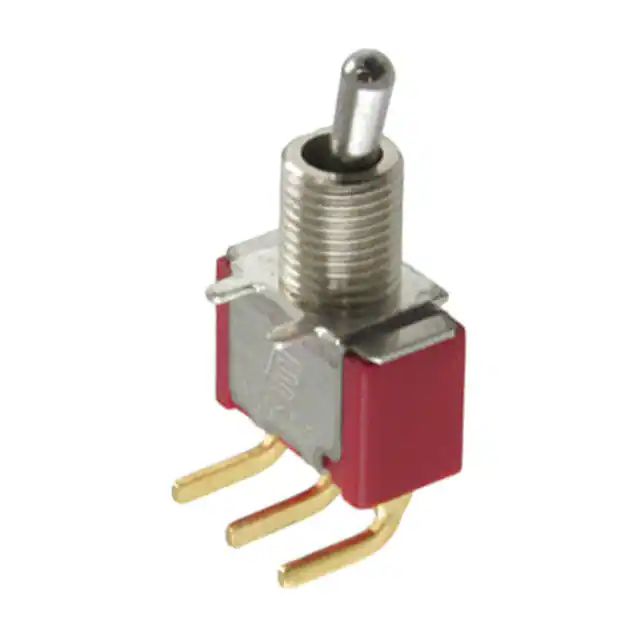

100SP1T2B3M6RESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Таблицы данных |
100 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103MD9CQESWITCH TOGGLE SPDT 5A 120V |
24 |
|
Таблицы данных |
7000 | Bulk | Active | Through Hole | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWSP1T1B1M7REHSWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Таблицы данных |
100A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2M1-DP1-T2-B4-M6RESWITCH TOGGLE DPDT 0.4VA 20V |
2 |
|
Таблицы данных |
2M | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

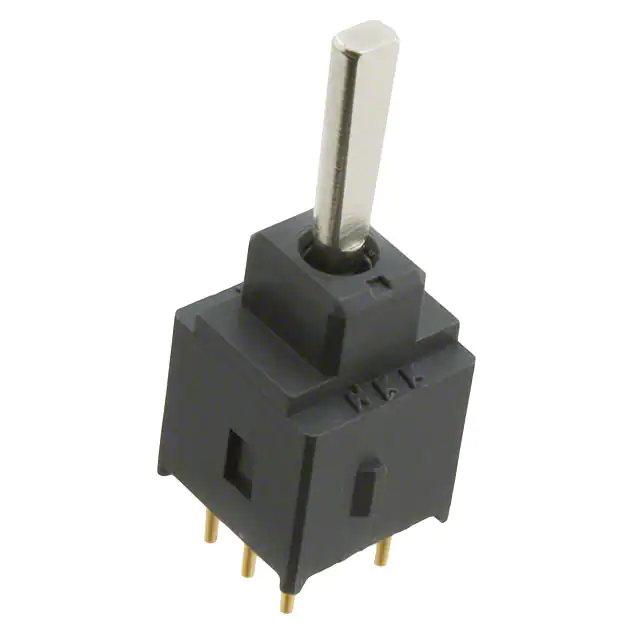

A23EPSWITCH TOGGLE DPDT 0.4VA 28V |
10 |
|
Таблицы данных |
A | Tray | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
7101DSWITCH TOGGLE SPDT 6A 125V |
11 |
|
Таблицы данных |
7100 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC) | 125 V | - | Standard Round | 14.27mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | - | -10°C ~ 65°C |
