Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

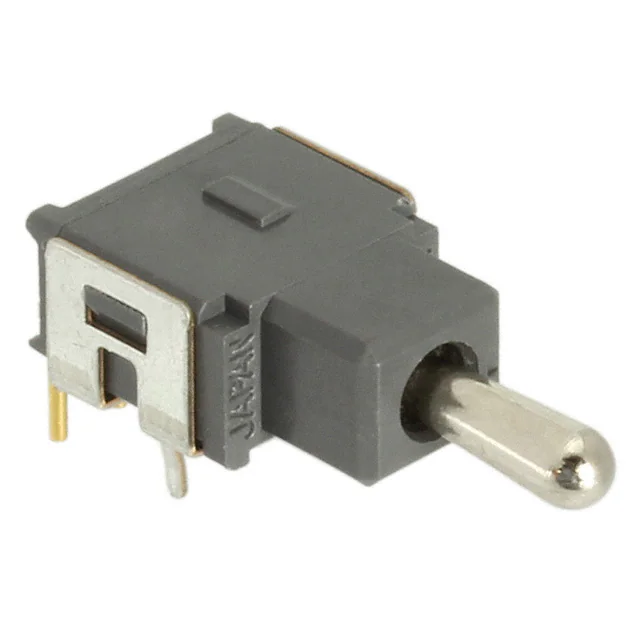

A1SJHSWITCH TOGGLE SPDT 0.4VA 28V |
3 |
|
Таблицы данных |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
G19AVSWITCH TOGGLE SPDT 0.4VA 28V |
28 |
|
Таблицы данных |
G | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
8GA2012-ZSWITCH TOGGLE DPDT 6A 125V |
48 |
|
Таблицы данных |
8GA | Bulk | Active | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -30°C ~ 85°C |
|

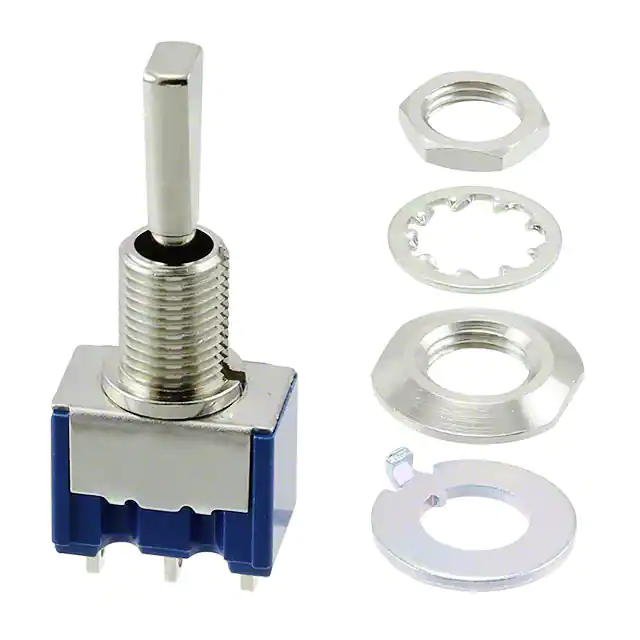

8C1021-ZSWITCH TOGGLE SPDT 6A 125V |
47 |
|
Таблицы данных |
8C | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|

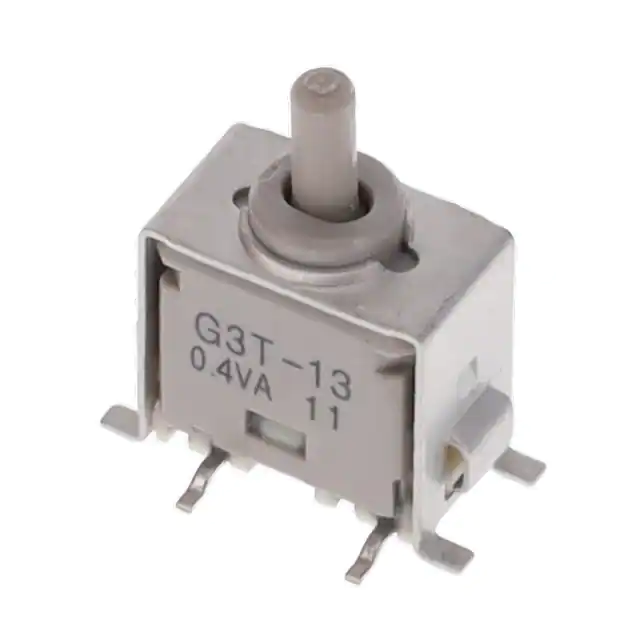

G3T13ABSWITCH TOGGLE SPDT 0.4VA 28V |
56 |
|
Таблицы данных |
G3T | Bulk | Active | Surface Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

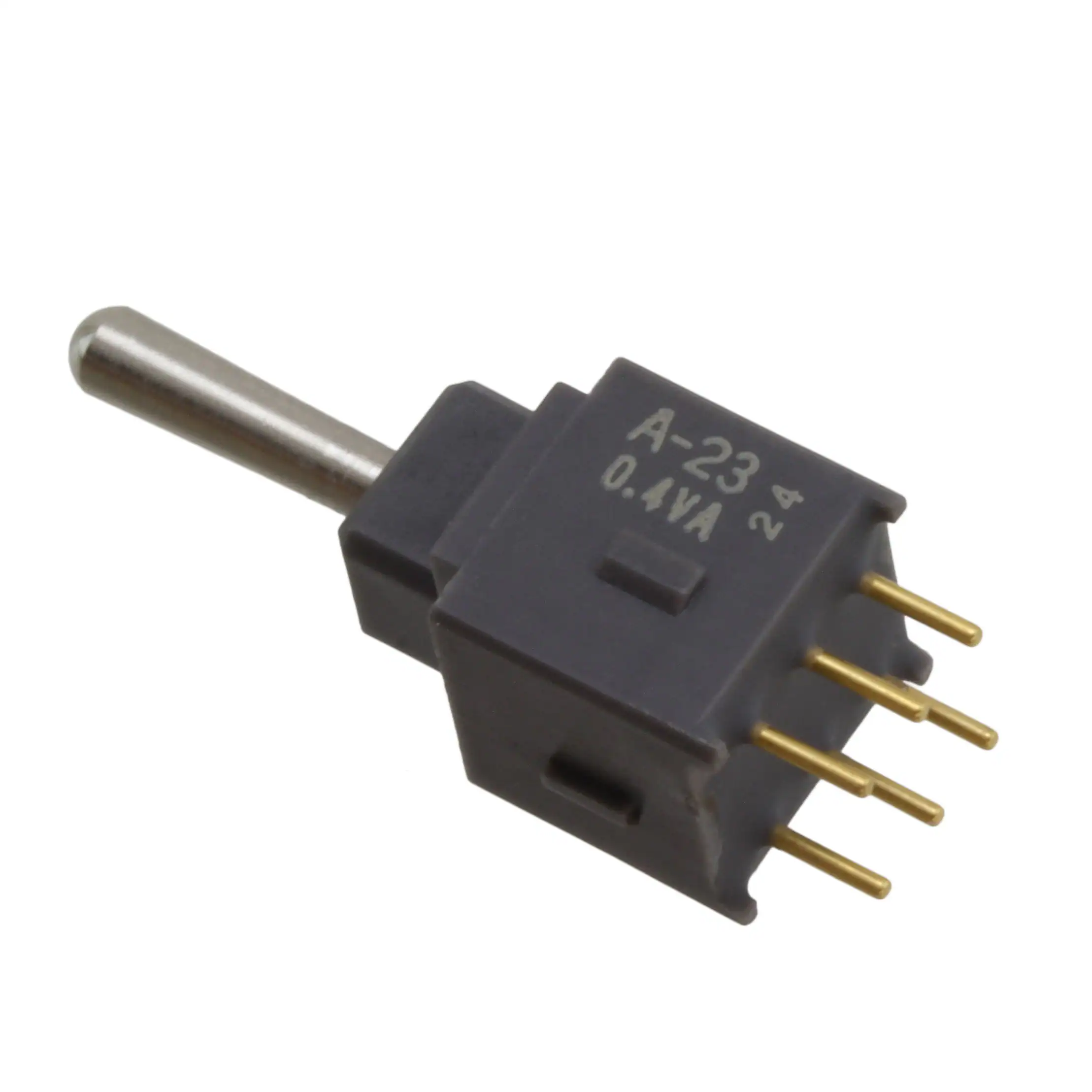

A23APSWITCH TOGGLE DPDT 0.4VA 28V |
55 |
|
Таблицы данных |
A | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

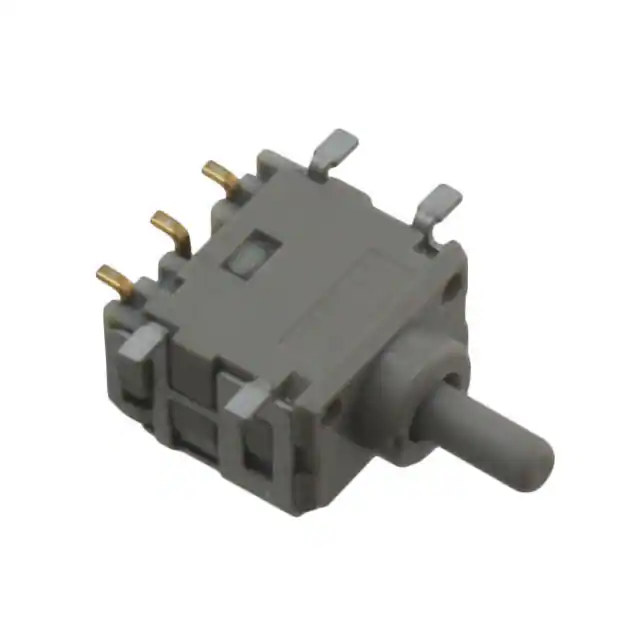

G3T13AHSWITCH TOGGLE SPDT 0.4VA 28V |
61 |
|
Таблицы данных |
G3T | Tray | Active | Surface Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

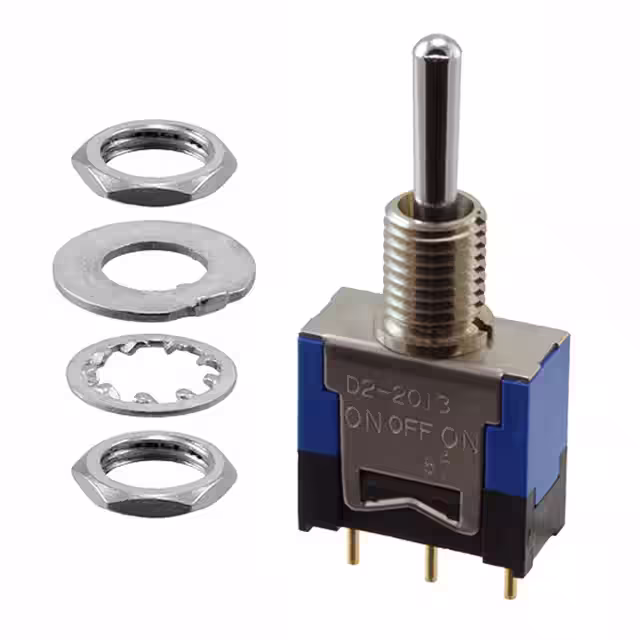

D22013PSWITCH TOGGLE SPDT 0.4VA 48V |
75 |
|
Таблицы данных |
D2 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|

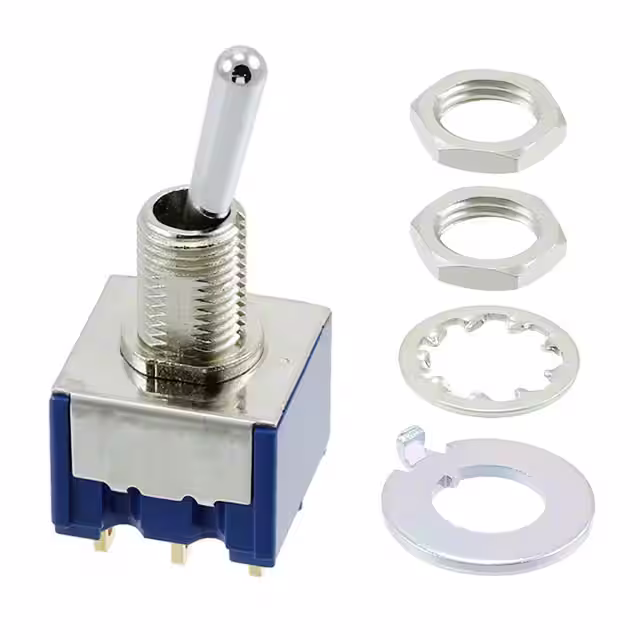

8A2011C-ZSWITCH TOGGLE DPDT 25MA 20V |
95 |
|
Таблицы данных |
8A | Bulk | Active | Panel Mount | DPDT | On-On | 25mA (DC) | - | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
5639ASWITCH TOGGLE SPDT 6A 125V |
36 |
|
Таблицы данных |
5000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|

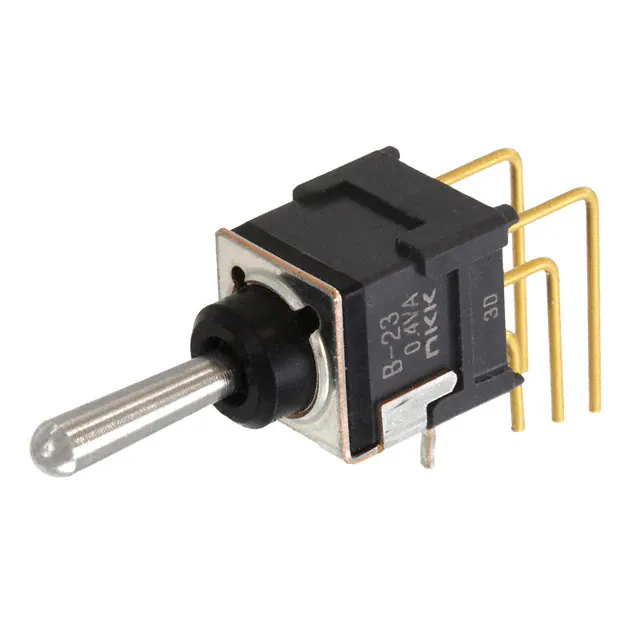

B23AVSWITCH TOGGLE DPDT 0.4VA 28V |
69 |
|
Таблицы данных |
B | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A22APSWITCH TOGGLE DPDT 0.4VA 28V |
45 |
|
Таблицы данных |
A | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

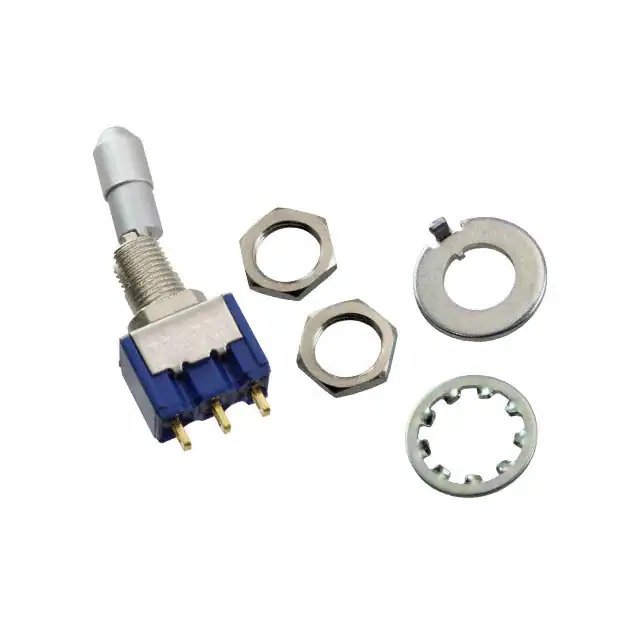

8E1021C-ZSWITCH TOGGLE SPDT 25MA 20V |
83 |
|
Таблицы данных |
8E | Bulk | Active | Panel Mount | SPDT | On-Off-On | 25mA (DC) | - | 20 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|

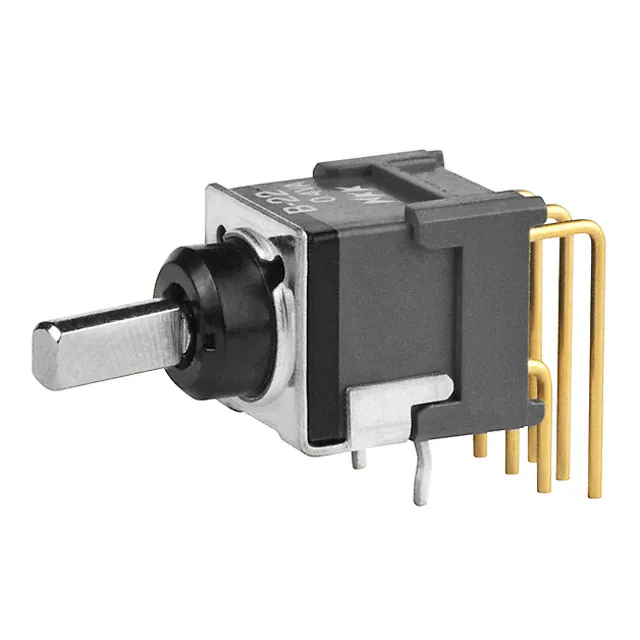

B22HHSWITCH TOGGLE DPDT 0.4VA 28V |
17 |
|
Таблицы данных |
B | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2M1-SP3-T8-B0-M2QESWITCH TOGGLE SPDT 5A 125V |
49 |
|
Таблицы данных |
2M | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Anti-Rotation | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET110D12-ZSWITCH TOGGLE SPDT 10A 125V |
37 |
|
Таблицы данных |
ET | Bulk | Active | Panel Mount | SPDT | On-On | 10A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

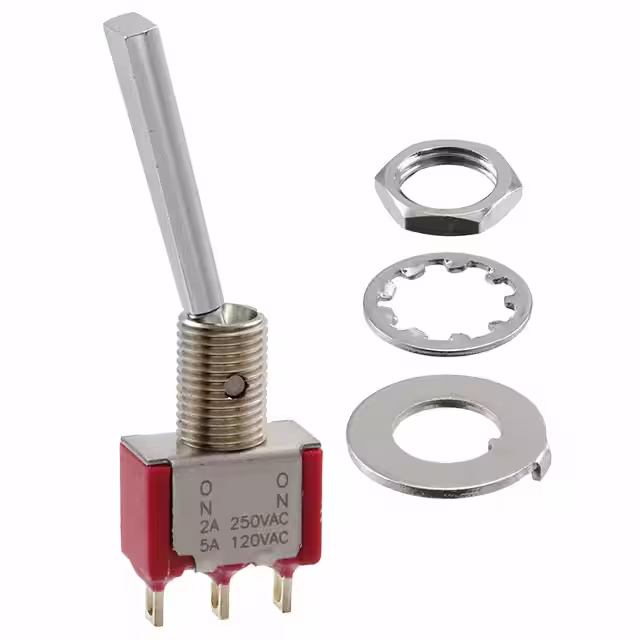

7101P1YZQESWITCH TOGGLE SPDT 5A 120V |
31 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

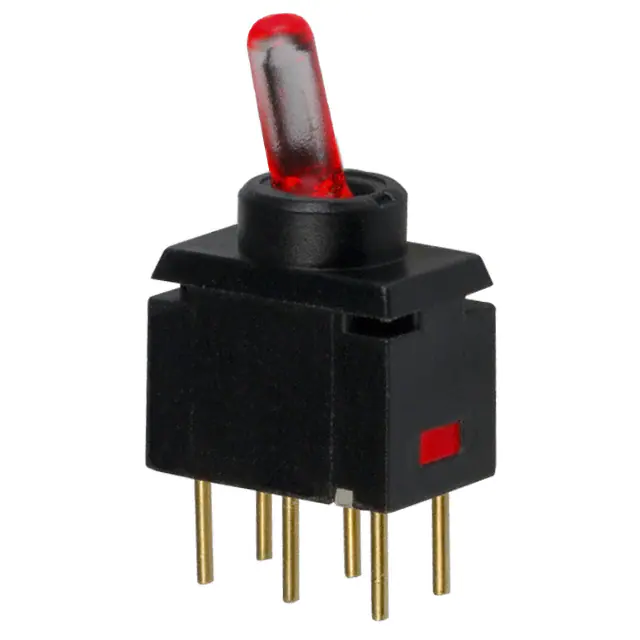

G12JPCSWITCH TOGGLE SPDT 0.4VA 28V |
24 |
|
Таблицы данных |
G | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Illuminated | LED, Red | 2 VDC | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

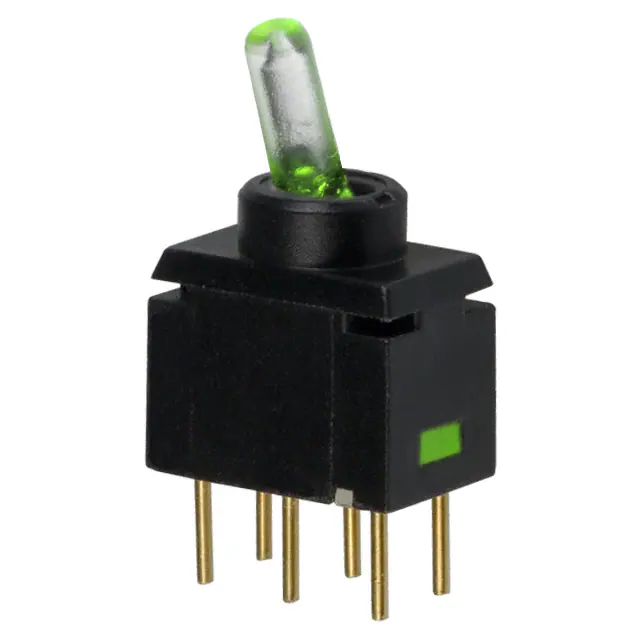

G12JPFSWITCH TOGGLE SPDT 0.4VA 28V |
40 |
|
Таблицы данных |
G | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Illuminated | LED, Green | 2.1 VDC | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
21236NASWITCH TOGGLE SPDT 4A 125V |
34 |
|
Таблицы данных |
21000N | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | - | -40°C ~ 85°C |
