БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2013SA2G30SWITCH TOGGLE SPDT 0.4VA 28V |
250 |
|
Таблицы данных |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A101SYZQ04SWITCH TOGGLE SPDT |
1,695 |
|
Таблицы данных |
- | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
1825139-7SWITCH TOGGLE DPDT 5A 120V |
165 |
|
Таблицы данных |
Gemini A | Bag | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.19mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
A203SDZQ04SWITCH TOGGLE DPDT |
165 |
|
Таблицы данных |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.19mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
A207SYZQ04SWITCH TOGGLE DPDT |
233 |
|
Таблицы данных |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
3-1825136-1A101SCWZQ04 |
282 |
|
Таблицы данных |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
A215SYZQ04SWITCH TOGGLE DP3T |
185 |
|
Таблицы данных |
Gemini A | Bulk | Active | Panel Mount | SP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
TA2-1A-DC-6-LSWITCH TOGGLE SPST 20A 125V |
396 |
|
Таблицы данных |
TA2 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 34.80mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | - | - | 0°C ~ 65°C |
|
|
FTD09G04SWITCH TOGGLE SPDT |
462 |
|
Таблицы данных |
- | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -20°C ~ 70°C |
|
|
FTD59G04Toggle Switch, SPDT, On-on, 0.4A |
515 |
|
Таблицы данных |
Gemini A | Tray | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 15.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -20°C ~ 70°C |
|
|
FTT0904Toggle Switch, DPDT, On-off-(on) |
308 |
|
Таблицы данных |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 6A (AC) | 250 V | - | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -20°C ~ 70°C |
|
4-6437630-1FTT0904=MINIATURE TOGGLE |
308 |
|
Таблицы данных |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 6A (AC) | 250 V | - | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -20°C ~ 70°C |
|
2TL1-6SEALED OI SWITCH MS24524-30 |
38 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | DPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

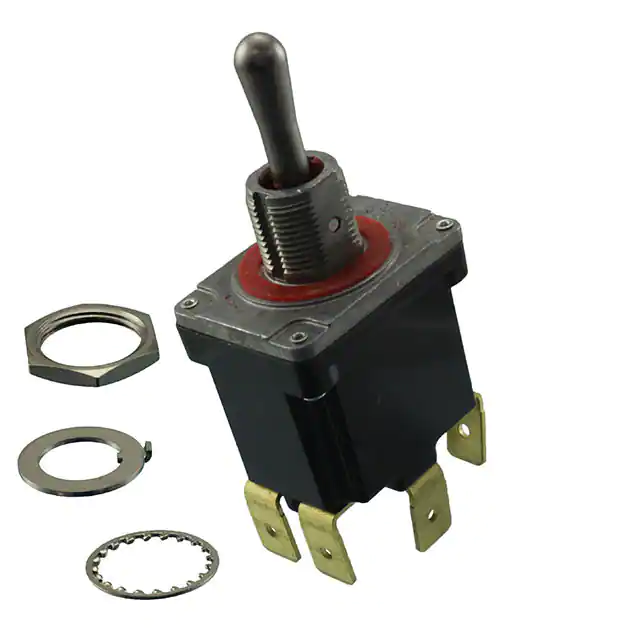

PT203SQQSWITCH PT203S TOGGLE |
93 |
|
Таблицы данных |
PT | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
AWTT1504SWITCH TOGGLE |
72 |
|
Таблицы данных |
- | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
3-1393247-4TOGGLE SWITCH, SPST, LATCHED, 2A |
26 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3-1393247-6SWITCH TOGGLE SPST |
27 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GT11MSCBESWITCH TOGGLE SPDT 0.4VA 20V |
23 |
|
Таблицы данных |
GT | Tape & Reel (TR) | Active | Surface Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

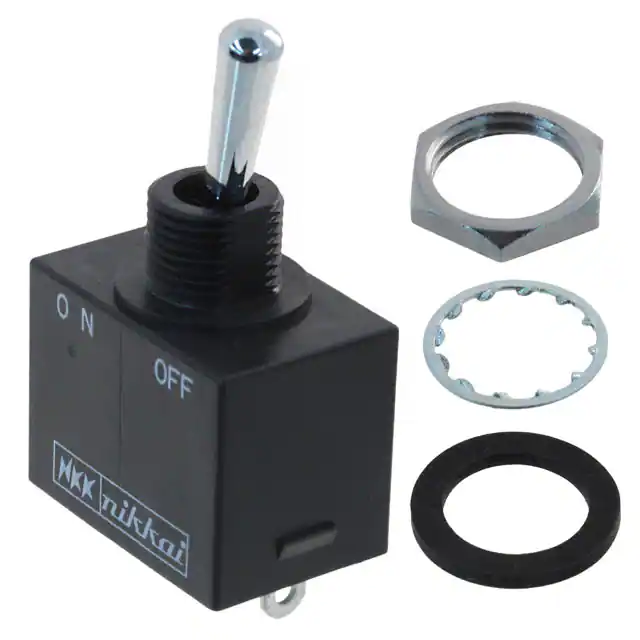

WT11SSWITCH TOGGLE SPST 10A 125V |
51 |
|
Таблицы данных |
WT | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
S2ALSWITCH TOGGLE SPDT 15A 125V |
88 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC), 20A (DC) | 125 V | 30 V | Locking Lever | 23.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
