Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTF5610K000BYEBRES 10K OHM 1/8W 0.1% AXIAL |
54,247 |
|
Таблицы данных |
PTF | Tape & Reel (TR) | Active | 10 kOhms | ±0.1% | 0.125W, 1/8W | Metal Film | Moisture Resistant | ±10ppm/°C | -55°C ~ 150°C | Axial | 0.091" Dia x 0.250" L (2.31mm x 6.35mm) | - | 2 | - |
|
OY333KERES 33K OHM 10% 2W AXIAL |
2,428 |
|
Таблицы данных |
OY | Bulk | Active | 33 kOhms | ±10% | 2W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | 2 | - |
|

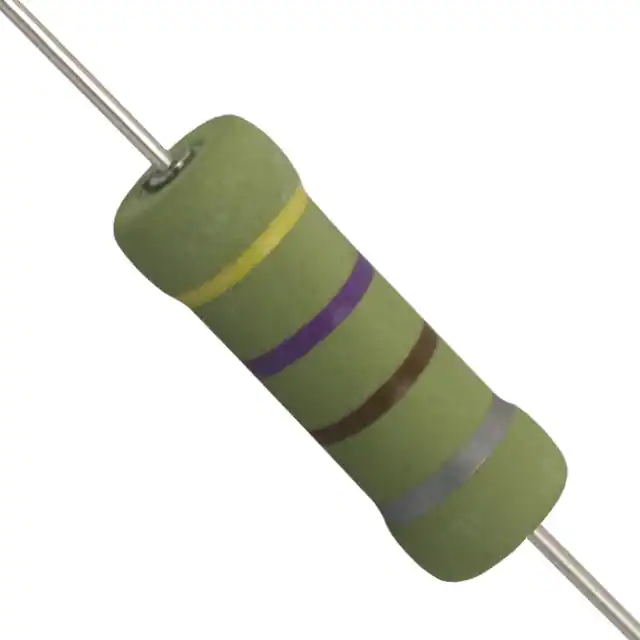

OY471KERES 470 OHM 10% 2W AXIAL |
1,241 |
|
Таблицы данных |
OY | Bulk | Active | 470 Ohms | ±10% | 2W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | 2 | - |
|
CW0101K000JE73RES 1K OHM 13W 5% AXIAL |
258 |
|
Таблицы данных |
CW | Tape & Reel (TR) | Active | 1 kOhms | ±5% | 13W | Wirewound | Moisture Resistant | ±30ppm/°C | -65°C ~ 350°C | Axial | 0.375" Dia x 1.781" L (9.52mm x 45.24mm) | - | 2 | - |
|
|
MOX200001006FERES 100M OHM 1% 1/4W AXIAL |
18,397 |
|
Таблицы данных |
Mini-Mox | Bulk | Active | 100 MOhms | ±1% | 0.25W, 1/4W | Thick Film | High Voltage, Moisture Resistant | 100ppm/°C | -55°C ~ 155°C | Axial | 0.087" Dia x 0.256" L (2.20mm x 6.50mm) | - | 2 | - |
|
|

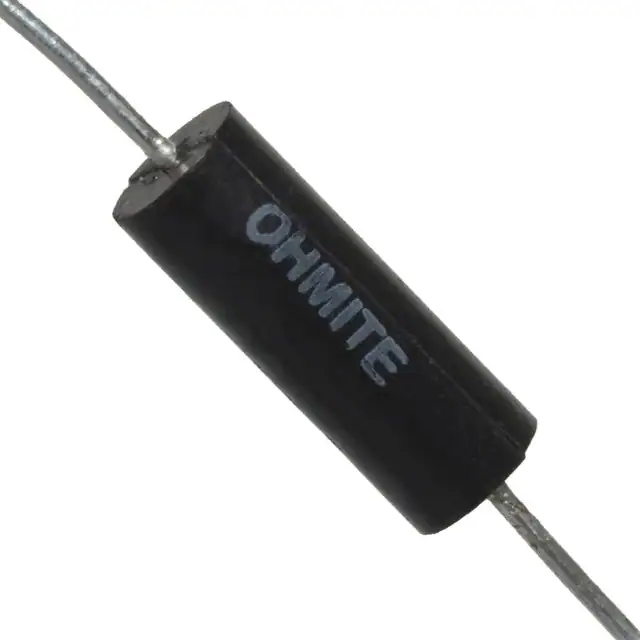

13FR150ERES 0.15 OHM 1% 3W AXIAL |
7,800 |
|
Таблицы данных |
10 | Bulk | Active | 150 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|

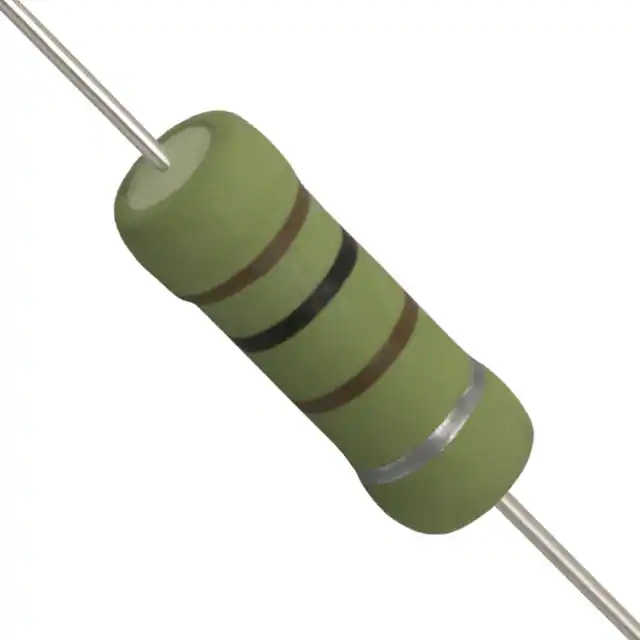

OY101KERES 100 OHM 10% 2W AXIAL |
3,373 |
|
Таблицы данных |
OY | Bulk | Active | 100 Ohms | ±10% | 2W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | 2 | - |
|

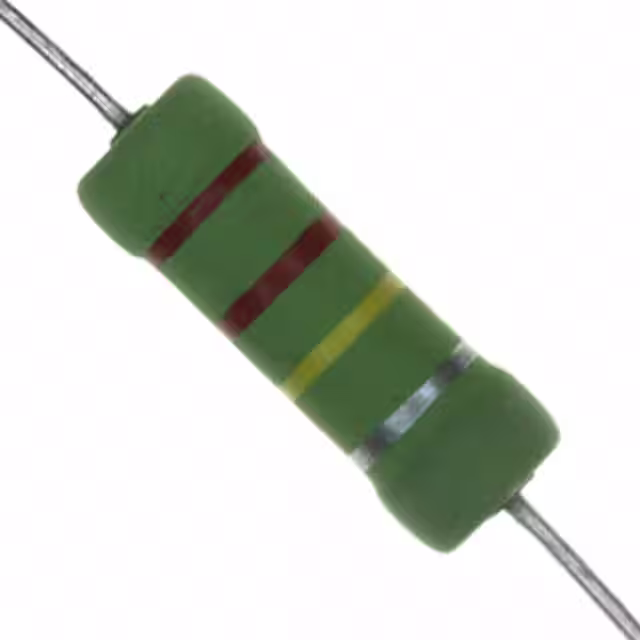

OY224KERES 220K OHM 10% 2W AXIAL |
3,616 |
|
Таблицы данных |
OY | Bulk | Active | 220 kOhms | ±10% | 2W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | 2 | - |
|
|
12FR010ERES 0.01 OHM 1% 2W AXIAL |
10,513 |
|
Таблицы данных |
10 | Bulk | Active | 10 mOhms | ±1% | 2W | Metal Element | Current Sense, Non-Inductive | ±100ppm/°C | -55°C ~ 275°C | Axial | 0.094" Dia x 0.417" L (2.40mm x 10.60mm) | - | 2 | - |
|
|
35J1R5ERES 1.5 OHM 5% 5W AXIAL |
6,914 |
|
Таблицы данных |
High Energy Wirewound | Bulk | Active | 1.5 Ohms | ±5% | 5W | Wirewound | - | - | - | Axial | 0.343" Dia x 1.000" L (8.70mm x 25.40mm) | - | 2 | - |
|
RS02BR1000FE70RES 0.1 OHM 3W 1% WW AXIAL |
1,584 |
|
Таблицы данных |
RS | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 3W | Wirewound | Moisture Resistant | - | -65°C ~ 250°C | Axial | 0.187" Dia x 0.560" L (4.75mm x 14.22mm) | - | 2 | - |
|
13FR015ERES 0.015 OHM 1% 3W AXIAL |
488 |
|
Таблицы данных |
10 | Bulk | Active | 15 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|

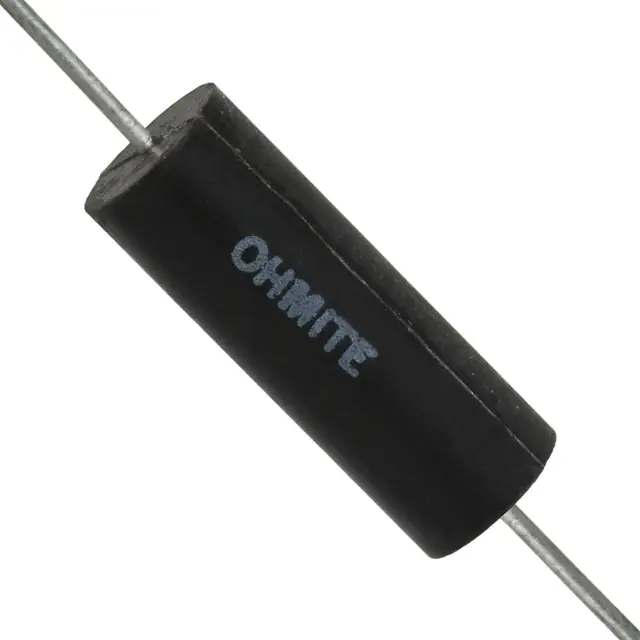

15FR200ERES 0.2 OHM 1% 5W AXIAL |
1,165 |
|
Таблицы данных |
10 | Bulk | Active | 200 mOhms | ±1% | 5W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.331" Dia x 0.937" L (8.40mm x 23.80mm) | - | 2 | - |
|
|
13FR020ERES 0.02 OHM 1% 3W AXIAL |
6,259 |
|
Таблицы данных |
10 | Bulk | Active | 20 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
|
AC07000001002JAC00RES 10K OHM 7W 5% AXIAL |
1,695 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 10 kOhms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
|
RS00510R00FE73RES 10 OHM 5W 1% WW AXIAL |
2,277 |
|
Таблицы данных |
RS | Tape & Reel (TR) | Active | 10 Ohms | ±1% | 5W | Wirewound | Moisture Resistant | ±20ppm/°C | -65°C ~ 250°C | Axial | 0.312" Dia x 0.875" L (7.92mm x 22.23mm) | - | 2 | - |
|
|
13FR050ERES 0.05 OHM 1% 3W AXIAL |
13,401 |
|
Таблицы данных |
10 | Bulk | Active | 50 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
|
15FR100ERES 0.1 OHM 1% 5W AXIAL |
5,665 |
|
Таблицы данных |
10 | Bulk | Active | 100 mOhms | ±1% | 5W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.331" Dia x 0.937" L (8.40mm x 23.80mm) | - | 2 | - |
|

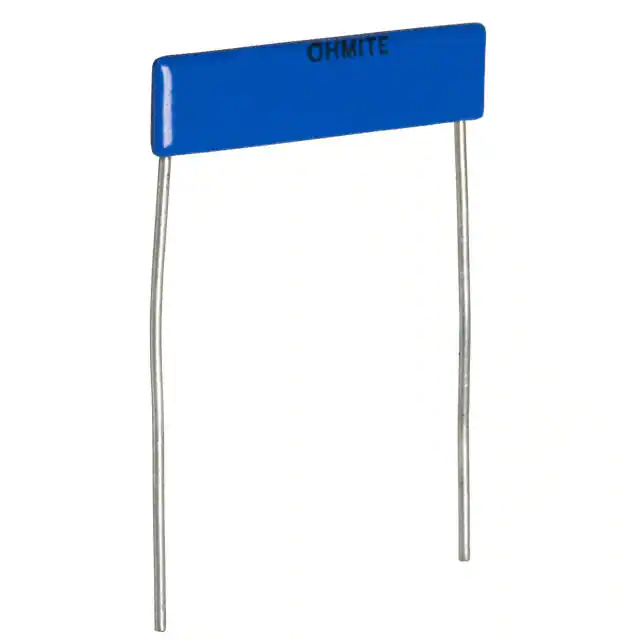

SM104031007JERES 1 GOHM 5% 1.5W RADIAL |
824 |
|
Таблицы данных |
Slim-Mox | Bulk | Active | 1 GOhms | ±5% | 1.5W | Thick Film | High Voltage, Non-Inductive | 100ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
|
15FR015ERES 0.015 OHM 1% 5W AXIAL |
1,752 |
|
Таблицы данных |
10 | Bulk | Active | 15 mOhms | ±1% | 5W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.331" Dia x 0.937" L (8.40mm x 23.80mm) | - | 2 | - |
