Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS-20SCBE50R00JERES 50 OHM 20W 5% WW RAD |
339 |
|
Таблицы данных |
FS | Bulk | Active | 50 Ohms | ±5% | 20W | Wirewound | - | ±260ppm/°C | -55°C ~ 350°C | - | 0.437" Dia x 2.375" L (11.11mm x 60.33mm) | 0.725" (18.41mm) | 2 | - |
|
|
FS-20SCBE10R00JERES 10 OHM 20W 5% WW RAD |
135 |
|
Таблицы данных |
FS | Bulk | Active | 10 Ohms | ±5% | 20W | Wirewound | - | ±400ppm/°C | -55°C ~ 350°C | - | 0.437" Dia x 2.375" L (11.11mm x 60.33mm) | 0.725" (18.41mm) | 2 | - |
|
HTS05231006JPB19RES THICK FILM AXIAL |
226 |
|
Таблицы данных |
HTS | Bulk | Active | 100 MOhms | ±5% | 1W | Thick Film | High Voltage | ±150ppm/°C | -55°C ~ 155°C | Axial | 0.177" Dia x 0.906" L (4.50mm x 23.00mm) | - | 2 | - |
|
251AS102KDSRES 1K OHM 10% 3.5W AXIAL |
60 |
|
Таблицы данных |
200 | Box | Active | 1 kOhms | ±10% | 3.5W | Ceramic | Moisture Resistant, Non-Inductive, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.437" Dia x 1.126" L (11.10mm x 28.60mm) | - | 2 | - |
|

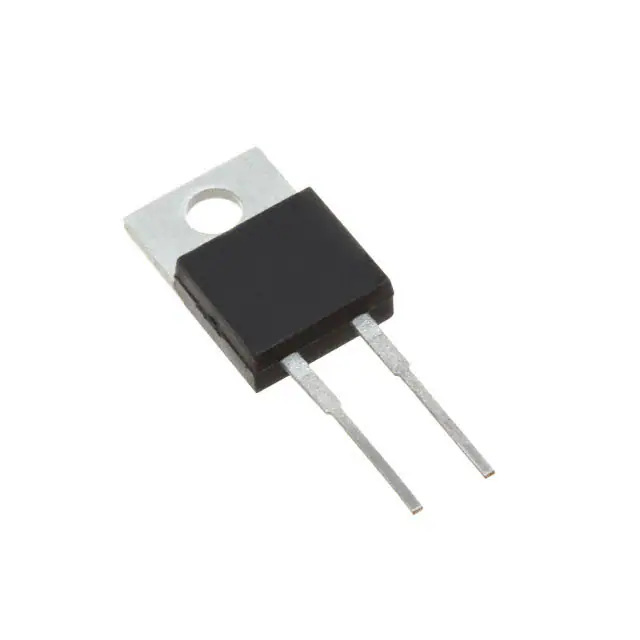

Y162210R0000A0LRES 10 OHM 8W 0.05% TO220-2 |
63 |
|
Таблицы данных |
VPR220Z | Bulk | Active | 10 Ohms | ±0.05% | 8W | Metal Foil | Moisture Resistant, Non-Inductive | ±0.2ppm/°C | -55°C ~ 150°C | TO-220 | 0.400" L x 0.150" W (10.16mm x 3.81mm) | 0.845" (21.46mm) | 2 | - |
|
Y6071100R000T9LRES 100 OHM .3W .01% RADIAL |
28 |
|
Таблицы данных |
HZ | Bulk | Active | 100 Ohms | ±0.01% | 0.3W | Metal Foil | Non-Inductive | ±0.2ppm/°C | -55°C ~ 125°C | - | 0.415" L x 0.162" W (10.54mm x 4.11mm) | 0.450" (11.43mm) | 2 | - |
|
Y07340R05000G9LRES 0.05 OHM 10W 2% RADIAL |
31 |
|
Таблицы данных |
VFP-4 | Bulk | Active | 50 mOhms | ±2% | 10W | Metal Foil | Current Sense, Moisture Resistant, Non-Inductive | ±2ppm/°C | -55°C ~ 150°C | - | 1.575" L x 0.276" W (40.01mm x 7.01mm) | 0.803" (20.40mm) | 4 | - |
|

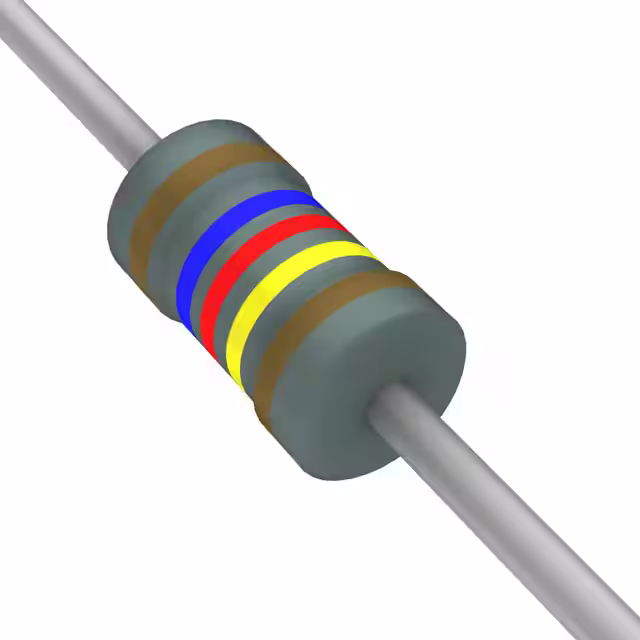

RNF14FTD1M62RES 1.62M OHM 1% 1/4W AXIAL |
2,817 |
|
Таблицы данных |
RNF | Tape & Reel (TR) | Active | 1.62 MOhms | ±1% | 0.25W, 1/4W | Metal Film | Flame Retardant Coating, Safety | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.093" Dia x 0.250" L (2.35mm x 6.35mm) | - | 2 | - |
|
CFS1/2CT52R473JRES 47K OHM 5% 1/2W AXIAL |
4,000 |
|
Таблицы данных |
CF | Tape & Reel (TR) | Active | 47 kOhms | ±5% | 0.5W, 1/2W | Carbon Film | - | -450/ +350ppm/°C | -55°C ~ 155°C | Axial | 0.112" Dia x 0.248" L (2.85mm x 6.30mm) | - | 2 | - |
|
CFR-12JT-52-22KRES 22K OHM 5% 1/6W AXIAL |
2,742 |
|
Таблицы данных |
CFR | Tape & Reel (TR) | Active | 22 kOhms | ±5% | 0.167W, 1/6W | Carbon Film | Automotive AEC-Q200 | -500/ +350ppm/°C | -55°C ~ 155°C | Axial | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | - | 2 | - |
|

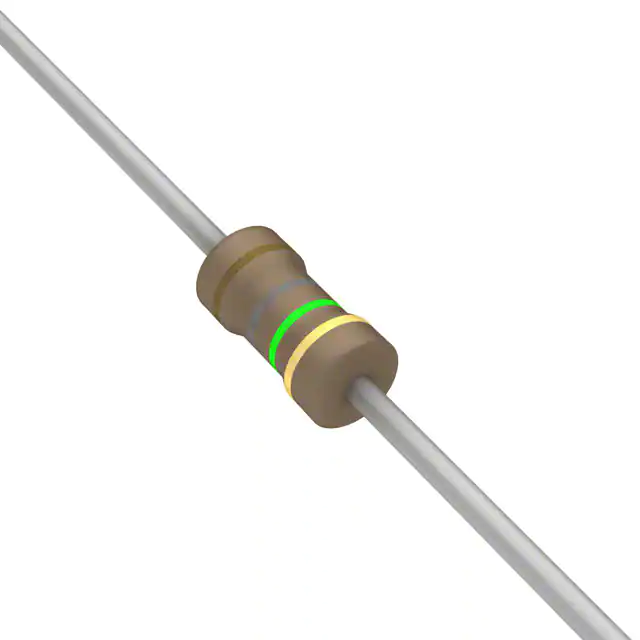

CFM14JT1M80RES 1.8M OHM 5% 1/4W AXIAL |
19,879 |
|
Таблицы данных |
CFM | Tape & Reel (TR) | Active | 1.8 MOhms | ±5% | 0.25W, 1/4W | Carbon Film | Flame Retardant Coating, Safety | 0/ -1500ppm/°C | -55°C ~ 155°C | Axial | 0.067" Dia x 0.130" L (1.70mm x 3.30mm) | - | 2 | - |
|
MFR-25FRF52-357RRES 357 OHM 1% 1/4W AXIAL |
19,513 |
|
Таблицы данных |
MFR | Tape & Reel (TR) | Active | 357 Ohms | ±1% | 0.25W, 1/4W | Metal Film | - | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
RNF14FAD1K58RES 1.58K OHM 1% 1/4W AXIAL |
19,033 |
|
Таблицы данных |
RNF | Cut Tape (CT) | Active | 1.58 kOhms | ±1% | 0.25W, 1/4W | Metal Film | Flame Retardant Coating, Safety | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.093" Dia x 0.250" L (2.35mm x 6.35mm) | - | 2 | - |
|

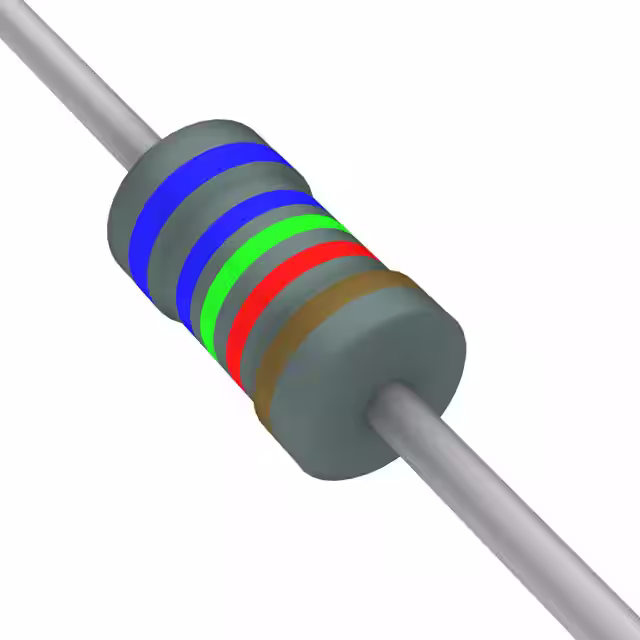

RNF14FTD66K5RES 66.5K OHM 1% 1/4W AXIAL |
14,573 |
|
Таблицы данных |
RNF | Tape & Reel (TR) | Active | 66.5 kOhms | ±1% | 0.25W, 1/4W | Metal Film | Flame Retardant Coating, Safety | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.093" Dia x 0.250" L (2.35mm x 6.35mm) | - | 2 | - |
|
MFR-25FRF52-86R6RES 86.6 OHM 1% 1/4W AXIAL |
14,545 |
|
Таблицы данных |
MFR | Tape & Reel (TR) | Active | 86.6 Ohms | ±1% | 0.25W, 1/4W | Metal Film | - | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
MFR-25FRF52-107KRES 107K OHM 1% 1/4W AXIAL |
14,355 |
|
Таблицы данных |
MFR | Tape & Reel (TR) | Active | 107 kOhms | ±1% | 0.25W, 1/4W | Metal Film | - | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
CFR-25JT-52-62KRES 62K OHM 5% 1/4W AXIAL |
13,970 |
|
Таблицы данных |
CFR | Cut Tape (CT) | Active | 62 kOhms | ±5% | 0.25W, 1/4W | Carbon Film | Automotive AEC-Q200 | -500/ +350ppm/°C | -55°C ~ 155°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
MFR-25FRF52-44K2RES 44.2K OHM 1% 1/4W AXIAL |
13,587 |
|
Таблицы данных |
MFR | Tape & Reel (TR) | Active | 44.2 kOhms | ±1% | 0.25W, 1/4W | Metal Film | - | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
MFR-25FTE52-309KRES 309K OHM 1% 1/4W AXIAL |
13,420 |
|
Таблицы данных |
MFR | Cut Tape (CT) | Active | 309 kOhms | ±1% | 0.25W, 1/4W | Metal Film | - | ±50ppm/°C | -55°C ~ 155°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
MFR-25FRF52-191KRES 191K OHM 1% 1/4W AXIAL |
13,395 |
|
Таблицы данных |
MFR | Tape & Reel (TR) | Active | 191 kOhms | ±1% | 0.25W, 1/4W | Metal Film | - | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
