БОМ
Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMF5520K000BHEBRES 20.0K OHM 1/2W .1% AXIAL |
1,862 |
|
Таблицы данных |
CMF | Tape & Reel (TR) | Active | 20 kOhms | ±0.1% | 0.5W, 1/2W | Metal Film | Flame Retardant Coating, Moisture Resistant, Safety | ±50ppm/°C | -55°C ~ 175°C | Axial | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | - | 2 | - |
|
|
CMF552K2300BHEBRES 2.23K OHM 1/2W .1% AXIAL |
901 |
|
Таблицы данных |
CMF | Tape & Reel (TR) | Active | 2.23 kOhms | ±0.1% | 0.5W, 1/2W | Metal Film | Flame Retardant Coating, Moisture Resistant, Safety | ±50ppm/°C | -55°C ~ 175°C | Axial | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | - | 2 | - |
|
|
CMF5549K900BEEBRES 49.9K OHM 1/2W 0.1% AXIAL |
15,613 |
|
Таблицы данных |
CMF | Tape & Reel (TR) | Active | 49.9 kOhms | ±0.1% | 0.5W, 1/2W | Metal Film | Flame Retardant Coating, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 175°C | Axial | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | - | 2 | - |
|
PSP400JB-120RRES 120 OHM 5% 4W AXIAL |
3,391 |
|
Таблицы данных |
PSP | Bulk | Active | 120 Ohms | ±5% | 4W | Wirewound | Anti-Arc, Flame Proof, Moisture Resistant, Safety | - | -55°C ~ 275°C | Axial | 0.252" Square x 0.787" L (6.40mm x 20.00mm) | - | 2 | - |
|
PNP5WVJR-73-4K7RES 4.7K OHM 5% 5W AXIAL |
1,179 |
|
Таблицы данных |
PNPV | Tape & Reel (TR) | Active | 4.7 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±300ppm/°C | -40°C ~ 200°C | Axial | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | - | 2 | - |
|
MSR1-0R07F1RES 0.07 OHM 1% 1W RADIAL |
908 |
|
Таблицы данных |
MSR | Bulk | Active | 70 mOhms | ±1% | 1W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety | ±20ppm/°C | -65°C ~ 275°C | - | 0.449" L x 0.067" W (11.40mm x 1.70mm) | 0.299" (7.60mm) | 2 | - |
|
|
RN55C1004BRE6RES 1M OHM 1/8W .1% AXIAL |
885 |
|
Таблицы данных |
Military, MIL-R-10509/7, RN55 | Tape & Reel (TR) | Active | 1 MOhms | ±0.1% | 0.125W, 1/8W | Metal Film | Flame Retardant Coating, Military, Moisture Resistant, Safety | ±50ppm/°C | -65°C ~ 175°C | Axial | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | - | 2 | - |
|
|
MSR1-0R08F1RES 0.08 OHM 1% 1W RADIAL |
518 |
|
Таблицы данных |
MSR | Bulk | Active | 80 mOhms | ±1% | 1W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety | ±20ppm/°C | -65°C ~ 275°C | - | 0.449" L x 0.067" W (11.40mm x 1.70mm) | 0.299" (7.60mm) | 2 | - |
|

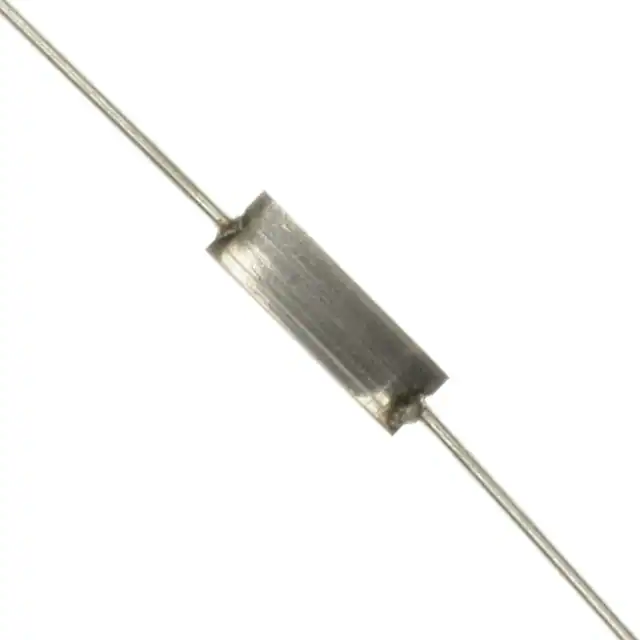

630HR010ERES 0.01 OHM 3% 3W AXIAL |
250 |
|
Таблицы данных |
60 | Bulk | Active | 10 mOhms | ±3% | 3W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.781" L (19.84mm) | - | 2 | - |
|
|
CMF55200K00BEEBRES 200K OHM 1/2W 0.1% AXIAL |
13,031 |
|
Таблицы данных |
CMF | Tape & Reel (TR) | Active | 200 kOhms | ±0.1% | 0.5W, 1/2W | Metal Film | Flame Retardant Coating, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 175°C | Axial | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | - | 2 | - |
|
RLR07C47R5FSB14RES 47.5 OHM 1% 1/4W AXIAL |
241 |
|
Таблицы данных |
Military, MIL-PRF-39017/01, RLR07 | Bulk | Active | 47.5 Ohms | ±1% | 0.25W, 1/4W | Metal Film | Military, Moisture Resistant, Weldable | ±100ppm/°C | -65°C ~ 150°C | Axial | 0.090" Dia x 0.250" L (2.29mm x 6.35mm) | - | 2 | S (0.001%) |
|
CPF118K000BHEE6RESISTOR METAL FILM 1W 18.0K OHM |
4,306 |
|
Таблицы данных |
CPF | Tape & Reel (TR) | Active | 18 kOhms | ±0.1% | 1W | Metal Film | Flame Proof, Moisture Resistant, Safety | ±50ppm/°C | -65°C ~ 230°C | Axial | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | - | 2 | - |
|
23J68RERES 68 OHM 5% 3W AXIAL |
124 |
|
Таблицы данных |
20 | Bulk | Active | 68 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
SBCHE6270RJRES 270 OHM 5% 7W AXIAL |
1,995 |
|
Таблицы данных |
SBC, CGS | Bulk | Active | 270 Ohms | ±5% | 7W | Wirewound | Flame Proof, Safety | ±200ppm/°C | -55°C ~ 350°C | - | 0.315" x 0.276" Rectangular x 1.496" L (8.00mm x 7.00mm x 38.00mm) | - | 2 | - |
|
|
SBCHE627RJRES 27 OHM 5% 7W AXIAL |
1,974 |
|
Таблицы данных |
SBC, CGS | Bulk | Active | 27 Ohms | ±5% | 7W | Wirewound | Flame Proof, Safety | ±200ppm/°C | -55°C ~ 350°C | - | 0.315" x 0.276" Rectangular x 1.496" L (8.00mm x 7.00mm x 38.00mm) | - | 2 | - |
|
SBCHE510KJRES 10K OHM 5% 5W AXIAL |
1,631 |
|
Таблицы данных |
SBC, CGS | Bulk | Active | 10 kOhms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±200ppm/°C | -55°C ~ 350°C | - | 0.315" x 0.276" Rectangular x 0.984" L (8.00mm x 7.00mm x 25.00mm) | - | 2 | - |
|
|
SBCHE610RJRES 10 OHM 5% 7W AXIAL |
1,597 |
|
Таблицы данных |
SBC, CGS | Bulk | Active | 10 Ohms | ±5% | 7W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 350°C | - | 0.315" x 0.276" Rectangular x 1.496" L (8.00mm x 7.00mm x 38.00mm) | - | 2 | - |
|
|
SBCHE6150RJRES 150 OHM 5% 7W AXIAL |
1,341 |
|
Таблицы данных |
SBC, CGS | Bulk | Active | 150 Ohms | ±5% | 7W | Wirewound | Flame Proof, Safety | ±200ppm/°C | -55°C ~ 350°C | - | 0.315" x 0.276" Rectangular x 1.496" L (8.00mm x 7.00mm x 38.00mm) | - | 2 | - |
|
|
SBCHE622RJRES 22 OHM 5% 7W AXIAL |
1,053 |
|
Таблицы данных |
SBC, CGS | Bulk | Active | 22 Ohms | ±5% | 7W | Wirewound | Flame Proof, Safety | ±200ppm/°C | -55°C ~ 350°C | - | 0.315" x 0.276" Rectangular x 1.496" L (8.00mm x 7.00mm x 38.00mm) | - | 2 | - |
|
|
SBCHE668RJRES 68 OHM 5% 7W AXIAL |
1,040 |
|
Таблицы данных |
SBC, CGS | Bulk | Active | 68 Ohms | ±5% | 7W | Wirewound | Flame Proof, Safety | ±200ppm/°C | -55°C ~ 350°C | - | 0.315" x 0.276" Rectangular x 1.496" L (8.00mm x 7.00mm x 38.00mm) | - | 2 | - |
