БОМ
Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CW02B10R00JE70RES 10 OHM 3.75W 5% AXIAL |
317 |
|
Таблицы данных |
CW | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 3.75W | Wirewound | Moisture Resistant | ±30ppm/°C | -65°C ~ 350°C | Axial | 0.188" Dia x 0.562" L (4.78mm x 14.27mm) | - | 2 | - |
|
MSR5-0R02F1RES 0.02 OHM 1% 5W RADIAL |
3,732 |
|
Таблицы данных |
MSR | Bulk | Active | 20 mOhms | ±1% | 5W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety | ±20ppm/°C | -65°C ~ 275°C | - | 0.799" L x 0.067" W (20.30mm x 1.70mm) | 1.000" (25.40mm) | 2 | - |
|

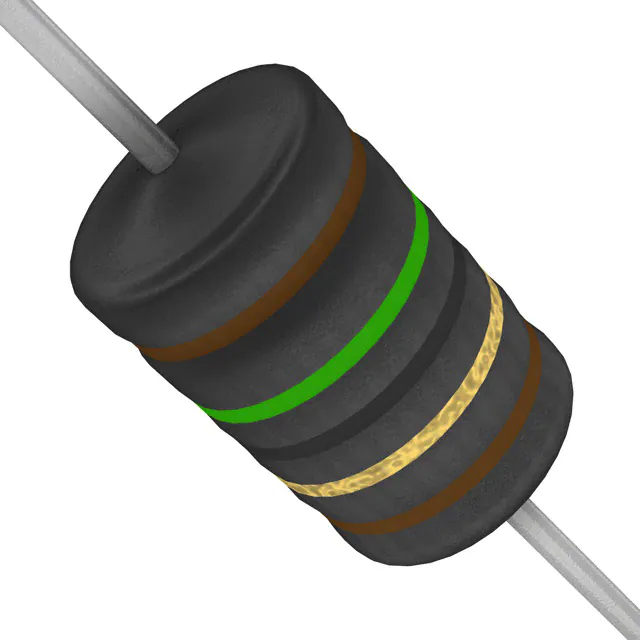

WHC15RFETRES 15 OHM 1% 2W AXIAL |
2,764 |
|
Таблицы данных |
WH | Tape & Reel (TR) | Active | 15 Ohms | ±1% | 2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
WHBR50FETRES 0.5 OHM 1% 1W AXIAL |
1,159 |
|
Таблицы данных |
WH | Tape & Reel (TR) | Active | 500 mOhms | ±1% | 1W | Wirewound | - | ±90ppm/°C | -55°C ~ 150°C | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|
MR5FT30L0RES 0.03 OHM 1% 5W AXIAL |
875 |
|
Таблицы данных |
MR | Tape & Reel (TR) | Active | 30 mOhms | ±1% | 5W | Metal Foil | Current Sense, Moisture Resistant, Non-Inductive, Non-Magnetic | - | -55°C ~ 275°C | Axial | 0.330" Dia x 0.925" L (8.38mm x 23.50mm) | - | 2 | - |
|
|
MSR5-0R015F1RES 0.015 OHM 1% 5W RADIAL |
736 |
|
Таблицы данных |
MSR | Bulk | Active | 15 mOhms | ±1% | 5W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety | ±20ppm/°C | -65°C ~ 275°C | - | 0.799" L x 0.067" W (20.30mm x 1.70mm) | 1.000" (25.40mm) | 2 | - |
|
VR68000001005FAC00RES 10M OHM 1W 1% AXIAL |
4,885 |
|
Таблицы данных |
VR68 | Cut Tape (CT) | Last Time Buy | 10 MOhms | ±1% | 1W | Metal Film | High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.268" Dia x 0.709" L (6.80mm x 18.00mm) | - | 2 | - |
|

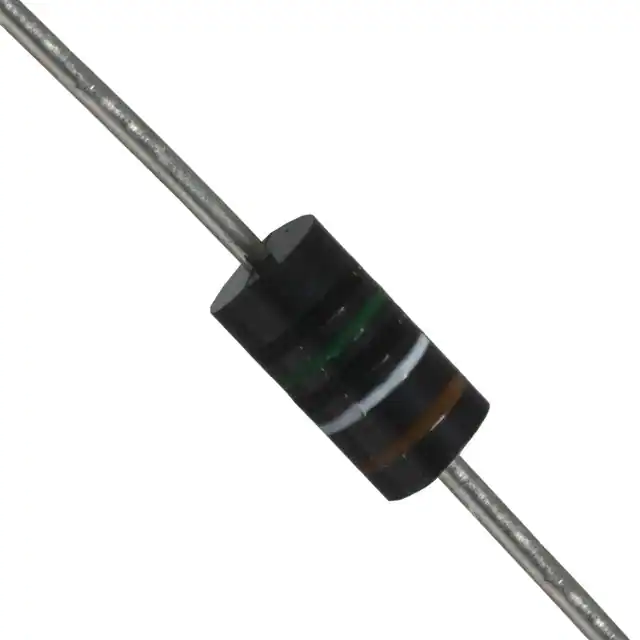

WLAR050FETRES 0.05 OHM 1% 1/2W AXIAL |
1,586 |
|
Таблицы данных |
WL | Tape & Reel (TR) | Active | 50 mOhms | ±1% | 0.5W, 1/2W | Wirewound | Current Sense, Moisture Resistant | ±100ppm/°C | - | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
WHE1K0FETRES 1K OHM 1% 5W AXIAL |
606 |
|
Таблицы данных |
WH | Tape & Reel (TR) | Active | 1 kOhms | ±1% | 5W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.295" Dia x 0.787" L (7.50mm x 20.00mm) | - | 2 | - |
|
|
WHE10RFETRES 10 OHM 1% 5W AXIAL |
435 |
|
Таблицы данных |
WH | Tape & Reel (TR) | Active | 10 Ohms | ±1% | 5W | Wirewound | - | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.295" Dia x 0.787" L (7.50mm x 20.00mm) | - | 2 | - |
|
RLR07C3302GSB14RES 33K OHM 2% 1/4W AXIAL |
138 |
|
Таблицы данных |
Military, MIL-PRF-39017/01, RLR07 | Bulk | Active | 33 kOhms | ±2% | 0.25W, 1/4W | Metal Film | Military, Moisture Resistant, Weldable | ±100ppm/°C | -65°C ~ 150°C | Axial | 0.090" Dia x 0.250" L (2.29mm x 6.35mm) | - | 2 | S (0.001%) |
|
|
RLR07C1003FSB14RES 100K OHM 1% 1/4W AXIAL |
4,530 |
|
Таблицы данных |
Military, MIL-PRF-39017/01, RLR07 | Bulk | Active | 100 kOhms | ±1% | 0.25W, 1/4W | Metal Film | Military, Moisture Resistant, Weldable | ±100ppm/°C | -65°C ~ 150°C | Axial | 0.090" Dia x 0.250" L (2.29mm x 6.35mm) | - | 2 | S (0.001%) |
|
RN65E2503BB14RES 250K OHM 1/2W .1% AXIAL |
3,124 |
|
Таблицы данных |
Military, MIL-R-10509/2, RN65 | Bulk | Active | 250 kOhms | ±0.1% | 0.5W, 1/2W | Metal Film | Flame Retardant Coating, Military, Moisture Resistant, Safety | ±25ppm/°C | -65°C ~ 175°C | Axial | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | - | 2 | - |
|
|
RLR07C1002FSB14RES 10K OHM 1% 1/4W AXIAL |
5,480 |
|
Таблицы данных |
Military, MIL-PRF-39017/01, RLR07 | Bulk | Active | 10 kOhms | ±1% | 0.25W, 1/4W | Metal Film | Military, Moisture Resistant, Weldable | ±100ppm/°C | -65°C ~ 150°C | Axial | 0.090" Dia x 0.250" L (2.29mm x 6.35mm) | - | 2 | S (0.001%) |
|
|
RLR07C1002FSRE6RES 10K OHM 1% 1/4W AXIAL |
4,202 |
|
Таблицы данных |
Military, MIL-PRF-39017/01, RLR07 | Tape & Reel (TR) | Active | 10 kOhms | ±1% | 0.25W, 1/4W | Metal Film | Military, Moisture Resistant, Weldable | ±100ppm/°C | -65°C ~ 150°C | Axial | 0.090" Dia x 0.250" L (2.29mm x 6.35mm) | - | 2 | S (0.001%) |
|
UB3C-100RF1RES 100 OHM 1% 3W AXIAL |
3,390 |
|
Таблицы данных |
UB | Bulk | Active | 100 Ohms | ±1% | 3W | Wirewound | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | ±20ppm/°C | -55°C ~ 250°C | Axial | 0.157" Dia x 0.350" L (4.00mm x 8.90mm) | - | 2 | - |
|
ER5847RJTRES 47 OHM 5% 7W AXIAL |
3,351 |
|
Таблицы данных |
ER, CGS | Cut Tape (CT) | Active | 47 Ohms | ±5% | 7W | Wirewound | - | 0/ +60ppm/°C | -55°C ~ 200°C | Axial | 0.315" Dia x 0.874" L (8.00mm x 22.20mm) | - | 2 | - |
|
|
UB3C-1RF1RES 1 OHM 1% 3W AXIAL |
1,394 |
|
Таблицы данных |
UB | Bulk | Active | 1 Ohms | ±1% | 3W | Wirewound | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | ±50ppm/°C | -55°C ~ 250°C | Axial | 0.157" Dia x 0.350" L (4.00mm x 8.90mm) | - | 2 | - |
|
|
UB3C-50RF1RES 50 OHM 1% 3W AXIAL |
1,162 |
|
Таблицы данных |
UB | Bulk | Active | 50 Ohms | ±1% | 3W | Wirewound | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | ±20ppm/°C | -55°C ~ 250°C | Axial | 0.157" Dia x 0.350" L (4.00mm x 8.90mm) | - | 2 | - |
|
|
UB3C-20RF1RES 20 OHM 1% 3W AXIAL |
1,106 |
|
Таблицы данных |
UB | Bulk | Active | 20 Ohms | ±1% | 3W | Wirewound | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | ±20ppm/°C | -55°C ~ 250°C | Axial | 0.157" Dia x 0.350" L (4.00mm x 8.90mm) | - | 2 | - |
