Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

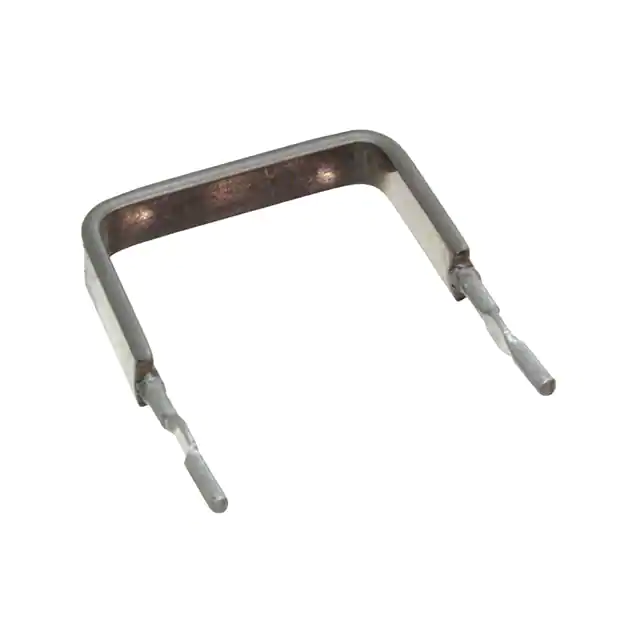

BR3FB10L0RES 0.01 OHM 1% 3W RADIAL |
717 |
|
Таблицы данных |
BR | Bulk | Active | 10 mOhms | ±1% | 3W | Metal Foil | Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety | ±20ppm/°C | -65°C ~ 350°C | - | 0.602" L x 0.065" W (15.30mm x 1.65mm) | 1.000" (25.40mm) | 2 | - |
|
CPF1100R00FKEE6RESISTOR METAL FILM 1W 100 OHM |
5,035 |
|
Таблицы данных |
CPF | Tape & Reel (TR) | Active | 100 Ohms | ±1% | 1W | Metal Film | Flame Proof, Moisture Resistant, Safety | ±100ppm/°C | -65°C ~ 230°C | Axial | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | - | 2 | - |
|
CMF50200K00FHEBRES 200K OHM 1/4W 1% AXIAL |
2,322 |
|
Таблицы данных |
CMF | Tape & Reel (TR) | Active | 200 kOhms | ±1% | 0.25W, 1/4W | Metal Film | Flame Retardant Coating, Moisture Resistant, Safety | ±50ppm/°C | -55°C ~ 175°C | Axial | 0.065" Dia x 0.150" L (1.65mm x 3.81mm) | - | 2 | - |
|
|
RN55C2500BB14RES 250 OHM 1/8W .1% AXIAL |
366 |
|
Таблицы данных |
Military, MIL-R-10509/7, RN55 | Bulk | Active | 250 Ohms | ±0.1% | 0.125W, 1/8W | Metal Film | Flame Retardant Coating, Military, Moisture Resistant, Safety | ±50ppm/°C | -65°C ~ 175°C | Axial | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | - | 2 | - |
|
AC07000005007JAC00RES 0.5 OHM 7W 5% AXIAL |
1,319 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 500 mOhms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
AC05000004707JAC00RES 0.47 OHM 5W 5% AXIAL |
8,696 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 470 mOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
WNER50FETRES 0.5 OHM 1% 5W AXIAL |
7,505 |
|
Таблицы данных |
WN | Tape & Reel (TR) | Active | 500 mOhms | ±1% | 5W | Wirewound | Non-Inductive | ±90ppm/°C | -55°C ~ 150°C | Axial | 0.295" Dia x 0.787" L (7.50mm x 20.00mm) | - | 2 | - |
|
|
AC05000002007JAC00RES 0.2 OHM 5W 5% AXIAL |
5,200 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 200 mOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
|
AC05000003307JAC00RES 0.33 OHM 5W 5% AXIAL |
3,573 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 330 mOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|

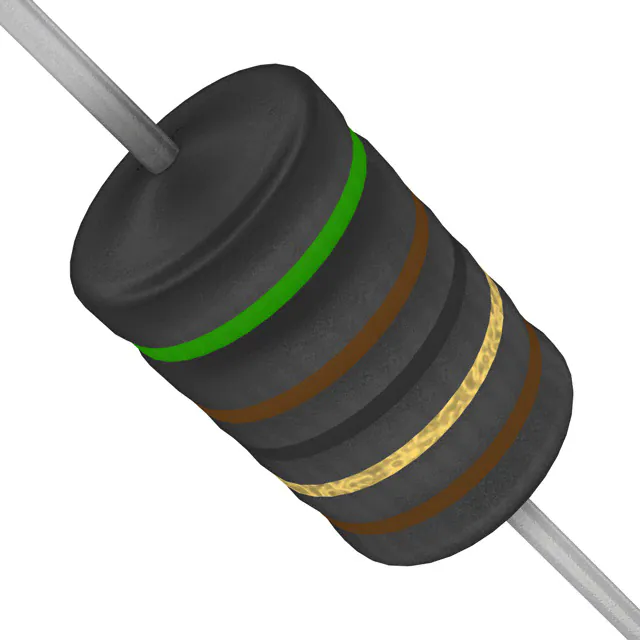

WNC51RFETRES 51 OHM 1% 2W AXIAL |
3,457 |
|
Таблицы данных |
WN | Tape & Reel (TR) | Active | 51 Ohms | ±1% | 2W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
TWW5J47RERES 47 OHM 5% 5W RADIAL |
2,640 |
|
Таблицы данных |
TWW | Bulk | Active | 47 Ohms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
|
AC05000003007JAC00RES 0.3 OHM 5W 5% AXIAL |
1,873 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 300 mOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
|
AC05000002207JAC00RES 0.22 OHM 5W 5% AXIAL |
1,198 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 220 mOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
|
AC05000001507JAC00RES 0.15 OHM 5W 5% AXIAL |
261 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 150 mOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
SQP25AJB-47RRES 47 OHM 5% 25W AXIAL |
185 |
|
Таблицы данных |
SQP | Bulk | Active | 47 Ohms | ±5% | 25W | Cement | Flame Proof, Pulse Withstanding, Safety | - | -55°C ~ 155°C | Axial | 0.551" x 0.512" Rectangular x 2.362" L (14.00mm x 13.00mm x 60.00mm) | - | 2 | - |
|
|
SQP25AJB-2RRES 2 OHM 5% 25W AXIAL |
103 |
|
Таблицы данных |
SQP | Bulk | Active | 2 Ohms | ±5% | 25W | Cement | Flame Proof, Pulse Withstanding, Safety | - | -55°C ~ 155°C | Axial | 0.551" x 0.512" Rectangular x 2.362" L (14.00mm x 13.00mm x 60.00mm) | - | 2 | - |
|
|
PCF1/2C102KLEADED RESISTOR CERAMIC ANTI PUL |
11,725 |
|
Таблицы данных |
PCF | Bulk | Active | 1 kOhms | ±10% | 0.5W, 1/2W | Ceramic | Automotive AEC-Q200, Flame Proof, Safety, Non-Inductive, Pulse Withstanding | -900/ -1900ppm/°C | -40°C ~ 200°C | Axial | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | - | 2 | - |
|
TWM5J200ERES 200 OHM 5% 5W RADIAL |
2,814 |
|
Таблицы данных |
TWM | Bulk | Active | 200 Ohms | ±5% | 5W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
|
PCF1/2C103KLEADED RESISTOR CERAMIC ANTI PUL |
2,246 |
|
Таблицы данных |
PCF | Bulk | Active | 10 kOhms | ±10% | 0.5W, 1/2W | Ceramic | Automotive AEC-Q200, Flame Proof, Safety, Non-Inductive, Pulse Withstanding | -900/ -1900ppm/°C | -40°C ~ 200°C | Axial | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | - | 2 | - |
|
MHR0424SA108F70RES 1 GOHM 1% 1.4W RADIAL |
512 |
|
Таблицы данных |
MHR | Bulk | Active | 1 GOhms | ±1% | 1.4W | Thick Film | High Voltage | - | -40°C ~ 125°C | - | 0.996" L x 0.098" W (25.30mm x 2.50mm) | 0.256" (6.50mm) | 2 | - |
