Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQMW7R68JRES 0.68 OHM 5% 7W RADIAL |
838 |
|
Таблицы данных |
SQ, CGS | Bulk | Active | 680 mOhms | ±5% | 7W | Wirewound | Cement Coated, Flame Proof, Moisture Resistant, Safety | ±300ppm/°C | -55°C ~ 250°C | - | 0.512" L x 0.354" W (13.00mm x 9.00mm) | 1.575" (40.00mm) | 2 | - |
|
|
SQMW739RJRES 39 OHM 5% 7W RADIAL |
489 |
|
Таблицы данных |
SQ, CGS | Bulk | Active | 39 Ohms | ±5% | 7W | Wirewound | Cement Coated, Flame Proof, Moisture Resistant, Safety | ±300ppm/°C | -55°C ~ 250°C | Radial Lead | 0.512" L x 0.354" W (13.00mm x 9.00mm) | 1.575" (40.00mm) | 2 | - |
|
RLR05C1000FSB14RES 100 OHM 1% 1/8W AXIAL |
442 |
|
Таблицы данных |
Military, MIL-PRF-39017/05, RLR05 | Bulk | Active | 100 Ohms | ±1% | 0.125W, 1/8W | Metal Film | Military, Moisture Resistant, Weldable | ±100ppm/°C | -65°C ~ 150°C | Axial | 0.066" Dia x 0.150" L (1.68mm x 3.81mm) | - | 2 | S (0.001%) |
|
|
SQMW7220RJRES 220 OHM 5% 7W RADIAL |
332 |
|
Таблицы данных |
SQ, CGS | Bulk | Active | 220 Ohms | ±5% | 7W | Wirewound | Cement Coated, Flame Proof, Moisture Resistant, Safety | ±300ppm/°C | -55°C ~ 250°C | - | 0.512" L x 0.354" W (13.00mm x 9.00mm) | 1.575" (40.00mm) | 2 | - |
|
MPR5JB50L0RES 0.05 OHM 5% 5W RADIAL |
310 |
|
Таблицы данных |
MPR | Bulk | Active | 50 mOhms | ±5% | 5W | Metal Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | - | 0.551" L x 0.197" W (14.00mm x 5.00mm) | 0.748" (19.00mm) | 2 | - |
|

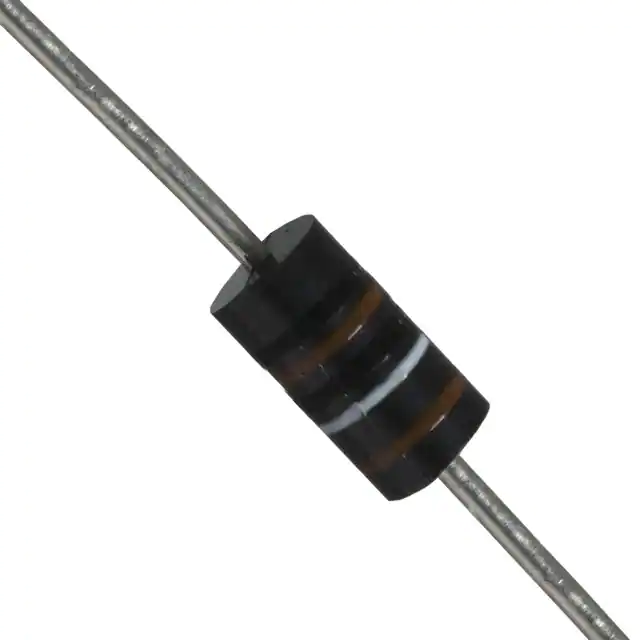

WLAR010FETRES 0.01 OHM 1% 1/2W AXIAL |
4,018 |
|
Таблицы данных |
WL | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 0.5W, 1/2W | Wirewound | Current Sense, Moisture Resistant | ±300ppm/°C | - | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|

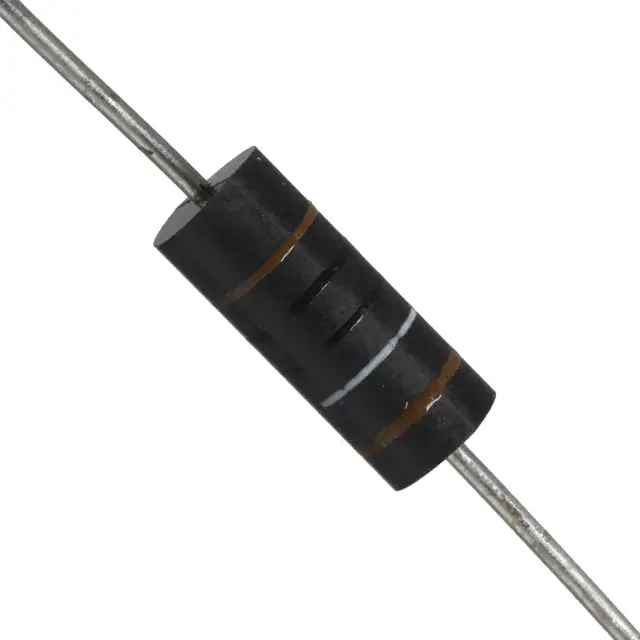

WLCR100FETRES 0.1 OHM 1% 2W AXIAL |
2,844 |
|
Таблицы данных |
WL | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 2W | Wirewound | Current Sense, Moisture Resistant | ±100ppm/°C | - | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
RLR07C1001GSRE6RES 1K OHM 2% 1/4W AXIAL |
2,794 |
|
Таблицы данных |
Military, MIL-PRF-39017/01, RLR07 | Tape & Reel (TR) | Active | 1 kOhms | ±2% | 0.25W, 1/4W | Metal Film | Military, Moisture Resistant, Weldable | ±100ppm/°C | -65°C ~ 150°C | Axial | 0.090" Dia x 0.250" L (2.29mm x 6.35mm) | - | 2 | S (0.001%) |
|
AC01000005009JA100RES 50 OHM 1W 5% AXIAL |
2,297 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 50 Ohms | ±5% | 1W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.169" Dia x 0.433" L (4.30mm x 11.00mm) | - | 2 | - |
|
|
AC01000005000JA100RES 500 OHM 1W 5% AXIAL |
1,476 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 500 Ohms | ±5% | 1W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.169" Dia x 0.433" L (4.30mm x 11.00mm) | - | 2 | - |
.jpg)
|
SQPW10220RJRES 220 OHM 5% 10W AXIAL |
6,168 |
|
Таблицы данных |
SQ, CGS | Bulk | Active | 220 Ohms | ±5% | 10W | Wirewound | Cement Coated, Flame Proof, Moisture Resistant, Safety | ±300ppm/°C | -55°C ~ 250°C | Axial | 0.394" x 0.354" Rectangular x 1.890" L (10.00mm x 9.00mm x 48.00mm) | - | 2 | - |
|
SQPW10R10JRES 0.1 OHM 5% 10W AXIAL |
4,971 |
|
Таблицы данных |
SQ, CGS | Bulk | Active | 100 mOhms | ±5% | 10W | Wirewound | Cement Coated, Flame Proof, Moisture Resistant, Safety | ±300ppm/°C | -55°C ~ 250°C | Axial | 0.394" x 0.354" Rectangular x 1.890" L (10.00mm x 9.00mm x 48.00mm) | - | 2 | - |
|
|
SQPW1047RJRES 47 OHM 5% 10W AXIAL |
3,689 |
|
Таблицы данных |
SQ, CGS | Bulk | Active | 47 Ohms | ±5% | 10W | Wirewound | Cement Coated, Flame Proof, Moisture Resistant, Safety | ±300ppm/°C | -55°C ~ 250°C | Axial | 0.394" x 0.354" Rectangular x 1.890" L (10.00mm x 9.00mm x 48.00mm) | - | 2 | - |
|
|
SQPW105R6JRES 5.6 OHM 5% 10W AXIAL |
3,185 |
|
Таблицы данных |
SQ, CGS | Bulk | Active | 5.6 Ohms | ±5% | 10W | Wirewound | Cement Coated, Flame Proof, Moisture Resistant, Safety | ±300ppm/°C | -55°C ~ 250°C | Axial | 0.394" x 0.354" Rectangular x 1.890" L (10.00mm x 9.00mm x 48.00mm) | - | 2 | - |
|
|
SQPW103R9JRES 3.9 OHM 5% 10W AXIAL |
2,762 |
|
Таблицы данных |
SQ, CGS | Bulk | Active | 3.9 Ohms | ±5% | 10W | Wirewound | Cement Coated, Flame Proof, Moisture Resistant, Safety | ±300ppm/°C | -55°C ~ 250°C | Axial | 0.394" x 0.354" Rectangular x 1.890" L (10.00mm x 9.00mm x 48.00mm) | - | 2 | - |
|
SQPW102R2JRES 2.2 OHM 5% 10W AXIAL |
2,398 |
|
Таблицы данных |
SQ, CGS | Bulk | Active | 2.2 Ohms | ±5% | 10W | Wirewound | Cement Coated, Flame Proof, Moisture Resistant, Safety | ±300ppm/°C | -55°C ~ 250°C | Axial | 0.394" x 0.354" Rectangular x 1.890" L (10.00mm x 9.00mm x 48.00mm) | - | 2 | - |
|
|
SQPW10100RJRES 100 OHM 5% 10W AXIAL |
2,383 |
|
Таблицы данных |
SQ, CGS | Bulk | Active | 100 Ohms | ±5% | 10W | Wirewound | Cement Coated, Flame Proof, Moisture Resistant, Safety | ±300ppm/°C | -55°C ~ 250°C | Axial | 0.394" x 0.354" Rectangular x 1.890" L (10.00mm x 9.00mm x 48.00mm) | - | 2 | - |
|
|
SQPW107R5JRES 7.5 OHM 5% 10W AXIAL |
2,205 |
|
Таблицы данных |
SQ, CGS | Bulk | Active | 7.5 Ohms | ±5% | 10W | Wirewound | Cement Coated, Flame Proof, Moisture Resistant, Safety | ±300ppm/°C | -55°C ~ 250°C | Axial | 0.394" x 0.354" Rectangular x 1.890" L (10.00mm x 9.00mm x 48.00mm) | - | 2 | - |
|
|
SQPW10150RKRES 150 OHM 10% 10W AXIAL |
2,149 |
|
Таблицы данных |
SQ, CGS | Bulk | Active | 150 Ohms | ±10% | 10W | Wirewound | Cement Coated, Flame Proof, Moisture Resistant, Safety | ±300ppm/°C | -55°C ~ 250°C | Axial | 0.394" x 0.354" Rectangular x 1.890" L (10.00mm x 9.00mm x 48.00mm) | - | 2 | - |
|
|
SQPW1015RJRES 15 OHM 5% 10W AXIAL |
1,390 |
|
Таблицы данных |
SQ, CGS | Bulk | Active | 15 Ohms | ±5% | 10W | Wirewound | Cement Coated, Flame Proof, Moisture Resistant, Safety | ±300ppm/°C | -55°C ~ 250°C | Axial | 0.394" x 0.354" Rectangular x 1.890" L (10.00mm x 9.00mm x 48.00mm) | - | 2 | - |
