Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
23J15RERES 15 OHM 5% 3W AXIAL |
0 |
|
Таблицы данных |
20 | Bulk | Active | 15 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
20J8K2E10W 8K2 OHMS VITREOUS 5% |
0 |
|
Таблицы данных |
20 | Bulk | Active | 8.2 kOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
41F100ERES 100 OHM 1% 1W AXIAL |
0 |
|
Таблицы данных |
40 | Bulk | Active | 100 Ohms | ±1% | 1W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|

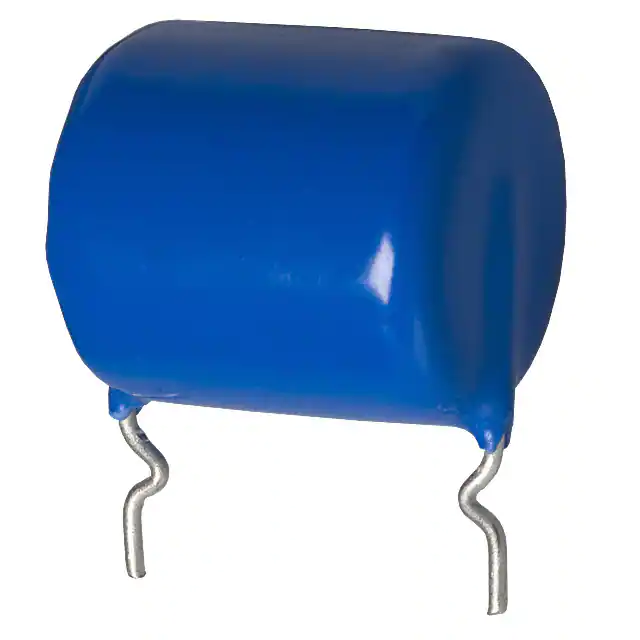

AY33GKE4.5W BULK CERAMIC PULSEATER |
0 |
|
Таблицы данных |
A | Bulk | Active | 3.3 Ohms | ±10% | 4.5W | Ceramic | Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety | - | -55°C ~ 150°C | Radial | 0.827" Dia x 0.984" L (21.00mm x 25.00mm) | 1.102" (28.00mm) | 2 | - |
|

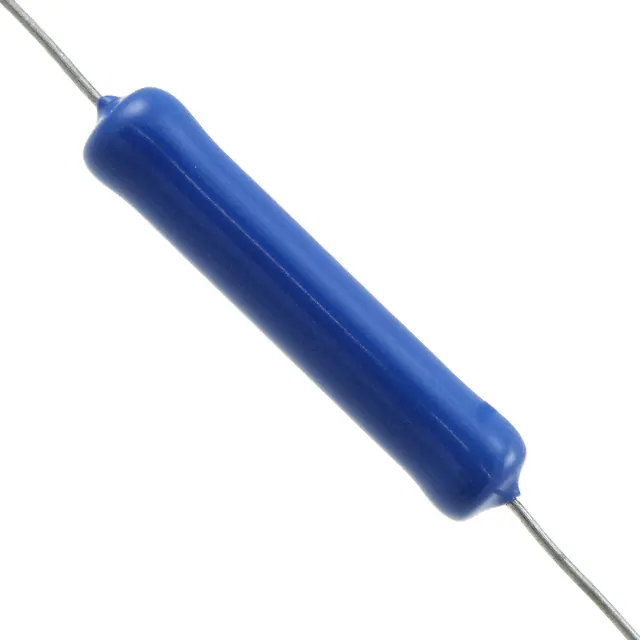

EY150KERES 15 OHM 10% 2.5W AXIAL |
0 |
|
Таблицы данных |
EY | Bulk | Active | 15 Ohms | ±10% | 2.5W | Ceramic | Moisture Resistant | -1200/ -600ppm/°C | -40°C ~ 110°C | Axial | 0.370" Dia x 1.819" L (9.40mm x 46.20mm) | - | 2 | - |
|
MOX5002203GSERES 220K OHM 2% 2W AXIAL |
0 |
|
Таблицы данных |
MOX500 | Bulk | Active | 220 kOhms | ±2% | 2W | Metal Oxide Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|

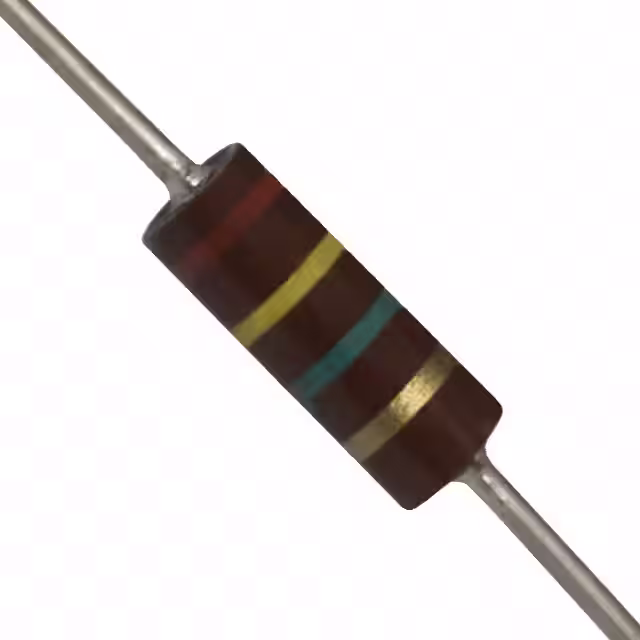

OD245JERES 2.4M OHM 5% 1/4W AXIAL |
0 |
|
Таблицы данных |
Little Demon® OD | Bulk | Active | 2.4 MOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
AP101 12R JRES 12 OHM 5% 100W TO247-2 |
0 |
|
Таблицы данных |
ARCOL, AP101 | Tube | Active | 12 Ohms | ±5% | 100W | - | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247-2 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.51mm) | 2 | - |
|
MOX-3-132504J1RES 2.5M OHM 5% 4W AXIAL |
0 |
|
Таблицы данных |
Maxi-Mox | Bulk | Active | 2.5 MOhms | ±5% | 4W | Thick Film | High Voltage | 25ppm/°C | -55°C ~ 210°C | Axial | 0.345" Dia x 3.140" L (8.76mm x 79.76mm) | - | 2 | - |
|
|
41F50RERES 50 OHM 1% 1W AXIAL |
0 |
|
Таблицы данных |
40 | Bulk | Active | 50 Ohms | ±1% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
|
AP101 1R8 JRES 1.8 OHM 5% 100W TO247-2 |
0 |
|
Таблицы данных |
ARCOL, AP101 | Tube | Active | 1.8 Ohms | ±5% | 100W | - | Moisture Resistant, Non-Inductive | ±300ppm/°C | -65°C ~ 175°C | TO-247-2 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.51mm) | 2 | - |
|
45F1K0E5W 1K0 OHMS SILICONE 1% |
0 |
|
Таблицы данных |
40 | Bulk | Active | 1 kOhms | ±1% | 5W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
|
40F50KERES 50K OHM 1% 10W AXIAL |
0 |
|
Таблицы данных |
40 | Bulk | Active | 50 kOhms | ±1% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
|
AP101 10R JRES 10 OHM 5% 100W TO247-2 |
0 |
|
Таблицы данных |
ARCOL, AP101 | Tube | Active | 10 Ohms | ±5% | 100W | - | Moisture Resistant, Non-Inductive | 100ppm/°C | -65°C ~ 175°C | TO-247-2 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.51mm) | 2 | - |
|

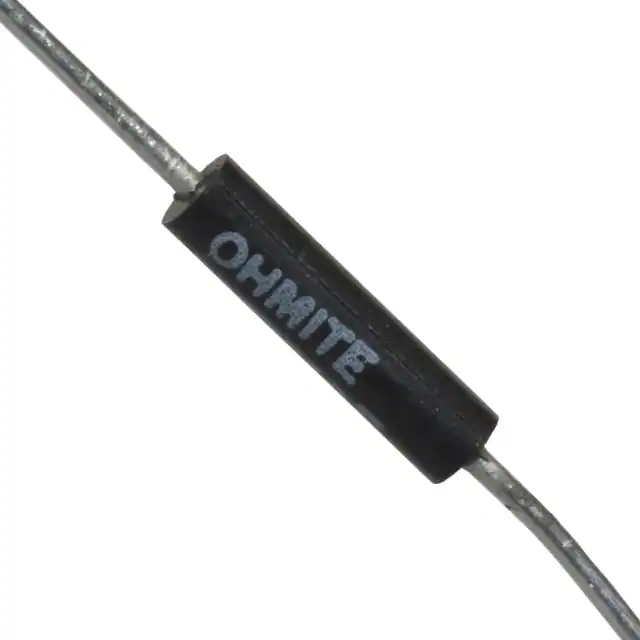

12FR100ERES 0.1 OHM 1% 2W AXIAL |
0 |
|
Таблицы данных |
10 | Bulk | Active | 100 mOhms | ±1% | 2W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.094" Dia x 0.417" L (2.40mm x 10.60mm) | - | 2 | - |
|

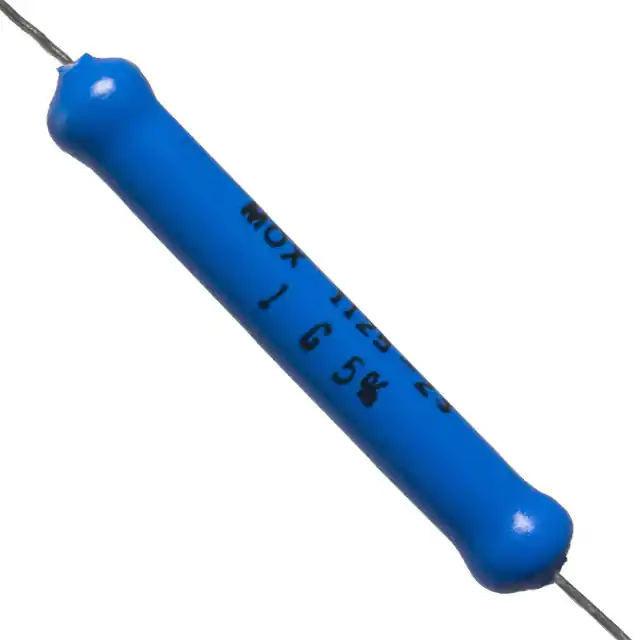

MOX1125231007JERES 1G OHM 5% 1.5W AXIAL |
0 |
|
Таблицы данных |
Mini-Mox | Bulk | Active | 1 GOhms | ±5% | 1.5W | Thick Film | High Voltage, Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.165" Dia x 1.270" L (4.19mm x 32.26mm) | - | 2 | - |
|

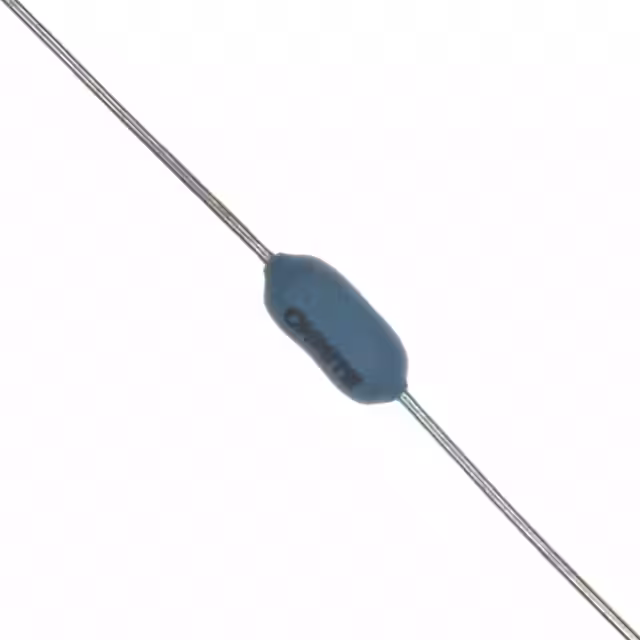

42J500E2W 500 OHMS SILICONE 5% |
0 |
|
Таблицы данных |
40 | Bulk | Active | 500 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|

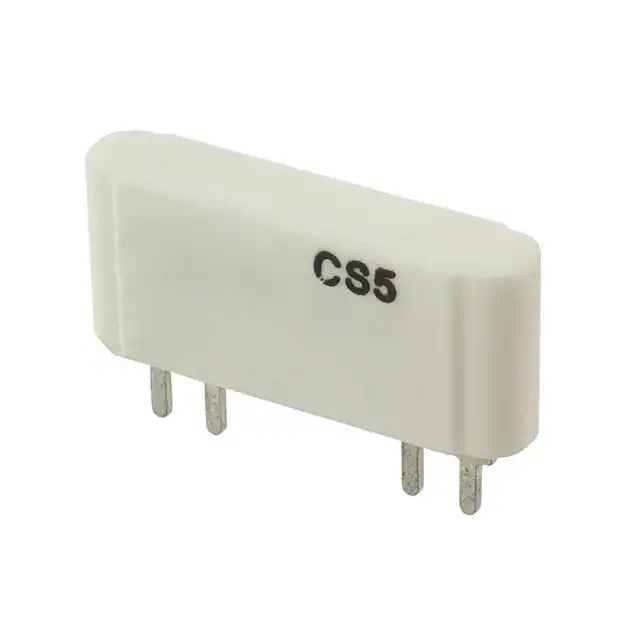

CS5DR004ERES 0.004 OHM 0.5% 5W RADIAL |
0 |
|
Таблицы данных |
CS5 | Bulk | Active | 4 mOhms | ±0.5% | 5W | Metal Element | Current Sense, Non-Inductive | ±30ppm/°C | -25°C ~ 150°C | Radial - 4 Leads | 1.496" L x 0.335" W (38.00mm x 8.50mm) | 0.748" (19.00mm) | 4 | - |
|
|
AY47GKERES 4.7 OHM 10% 4.5W RADIAL |
0 |
|
Таблицы данных |
A | Bulk | Active | 4.7 Ohms | ±10% | 4.5W | Ceramic | Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety | - | -55°C ~ 150°C | Radial | 0.827" Dia x 0.984" L (21.00mm x 25.00mm) | 1.102" (28.00mm) | 2 | - |
|

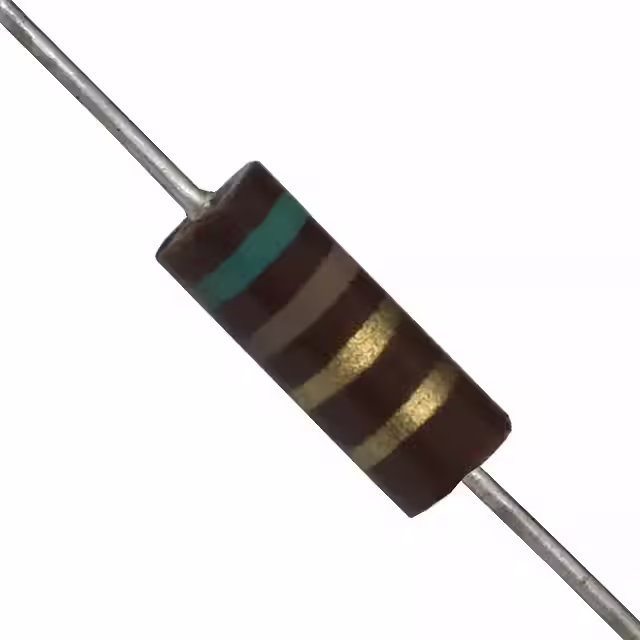

OF51GJERES 5.1 OHM 5% 1/2W AXIAL |
0 |
|
Таблицы данных |
Little Demon® OF | Bulk | Obsolete | 5.1 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
