БОМ
Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

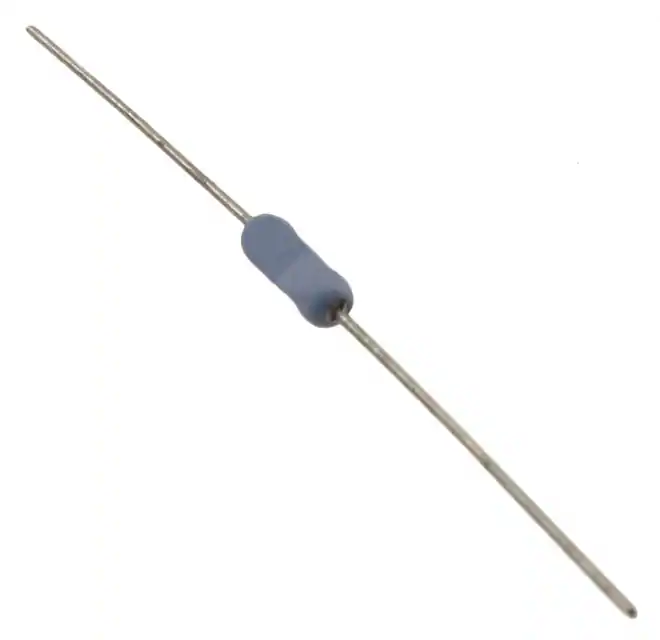

ERX-1SJR47VRES 0.47 OHM 5% 1W AXIAL |
0 |
|
Таблицы данных |
ERX | Cut Tape (CT) | Obsolete | 470 mOhms | ±5% | 1W | Metal Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 235°C | Axial | 0.110" Dia x 0.354" L (2.80mm x 9.00mm) | - | 2 | - |
|

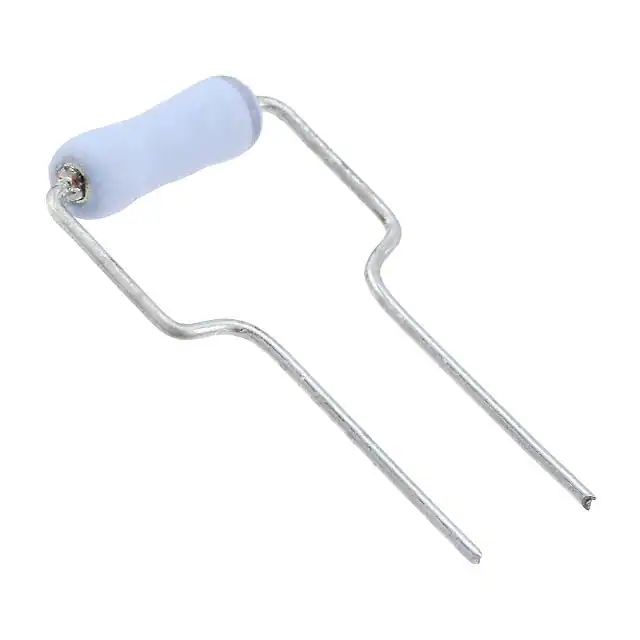

ERX-2FJSR36ERES 0.36 OHM 5% 2W AXIAL |
0 |
|
Таблицы данных |
ERX | Tape & Box (TB) | Obsolete | 360 mOhms | ±5% | 2W | Metal Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 235°C | Axial | 0.157" Dia x 0.472" L (4.00mm x 12.00mm) | - | 2 | - |
|
|
ERX-2FJSR51ERES 0.51 OHM 5% 2W AXIAL |
0 |
|
Таблицы данных |
ERX | Tape & Box (TB) | Obsolete | 510 mOhms | ±5% | 2W | Metal Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 235°C | Axial | 0.157" Dia x 0.472" L (4.00mm x 12.00mm) | - | 2 | - |
|

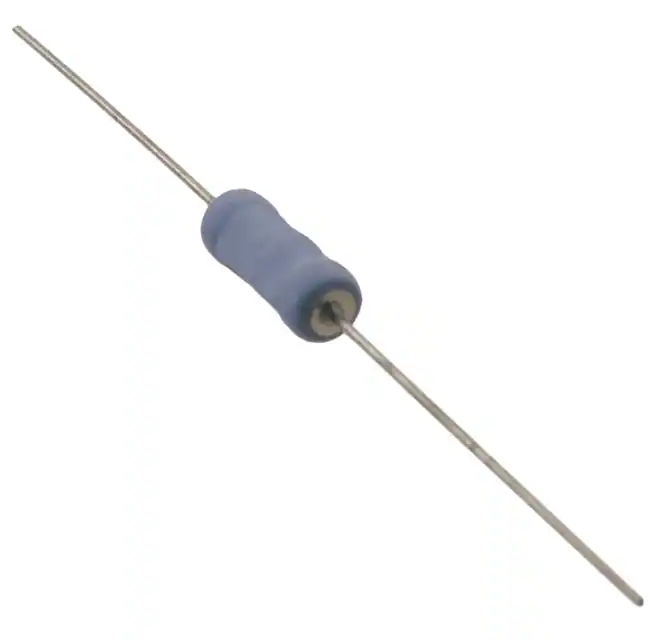

ERX-3SJR22VRES 0.22 OHM 5% 3W AXIAL |
0 |
|
Таблицы данных |
ERX | Tape & Box (TB) | Obsolete | 220 mOhms | ±5% | 3W | Metal Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|

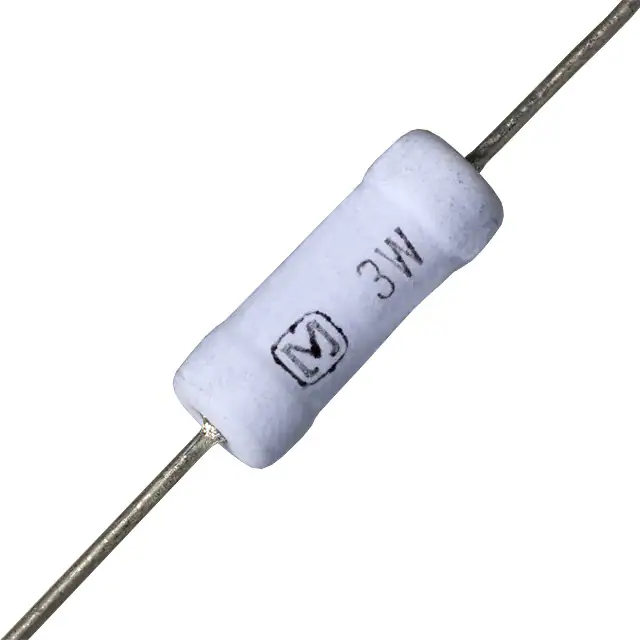

ERG-3FJ682RES 6.8K OHM 5% 3W AXIAL |
0 |
|
Таблицы данных |
ERG | Bulk | Obsolete | 6.8 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
CCF50121RFKR36RES 121 OHM 1/3W 1% AXIAL |
0 |
|
Таблицы данных |
CCF50 | Tape & Reel (TR) | Obsolete | 121 Ohms | ±1% | 0.333W, 1/3W | Metal Film | Flame Retardant Coating, Moisture Resistant, Safety | ±100ppm/°C | -65°C ~ 165°C | Axial | 0.062" Dia x 0.130" L (1.57mm x 3.30mm) | - | 2 | - |
|
|
Y0073100R000T9LRES 100 OHM 1/4W 0.01% RADIAL |
0 |
|
Таблицы данных |
VRM | Bulk | Active | 100 Ohms | ±0.01% | 0.25W, 1/4W | Metal Foil | Non-Inductive | ±8ppm/°C | -55°C ~ 125°C | - | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.290" (7.36mm) | 2 | - |
|
|
Y0073100R010T0LRES 100.01 OHM 1/4W 0.01% RADIAL |
0 |
|
Таблицы данных |
VRM | Bulk | Active | 100.01 Ohms | ±0.01% | 0.25W, 1/4W | Metal Foil | Non-Inductive | ±8ppm/°C | -55°C ~ 125°C | - | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.290" (7.36mm) | 2 | - |
|
|
Y0073250R000T0LRES 250 OHM 1/4W 0.01% RADIAL |
0 |
|
Таблицы данных |
VRM | Bulk | Active | 250 Ohms | ±0.01% | 0.25W, 1/4W | Metal Foil | Non-Inductive | ±8ppm/°C | -55°C ~ 125°C | - | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.290" (7.36mm) | 2 | - |
|
|
Y007350R0000Q9LRES 50 OHM 1/4W 0.02% RADIAL |
0 |
|
Таблицы данных |
VRM | Bulk | Active | 50 Ohms | ±0.02% | 0.25W, 1/4W | Metal Foil | Non-Inductive | ±8ppm/°C | -55°C ~ 125°C | - | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.290" (7.36mm) | 2 | - |
|
|
Y0098100R000F9LRES 100 OHM 0.6W 1% AXIAL |
0 |
|
Таблицы данных |
VSA101 | Bulk | Active | 100 Ohms | ±1% | 0.6W | Metal Foil | Moisture Resistant, Non-Inductive | ±0.2ppm/°C | -55°C ~ 125°C | Axial | 0.260" x 0.102" Rectangular x 0.305" L (6.60mm x 2.59mm x 7.75mm) | - | 2 | - |
|
|
Y00981K00000F9LRES 1K OHM 0.6W 1% AXIAL |
0 |
|
Таблицы данных |
VSA101 | Bulk | Active | 1 kOhms | ±1% | 0.6W | Metal Foil | Moisture Resistant, Non-Inductive | ±0.2ppm/°C | -55°C ~ 125°C | Axial | 0.260" x 0.102" Rectangular x 0.305" L (6.60mm x 2.59mm x 7.75mm) | - | 2 | - |
|
Y07852K20000B0LRES 2.2K OHM 0.6W 0.1% RADIAL |
0 |
|
Таблицы данных |
S | Bulk | Active | 2.2 kOhms | ±0.1% | 0.6W | Metal Foil | Moisture Resistant, Non-Inductive | ±2ppm/°C | -55°C ~ 125°C | - | 0.300" L x 0.105" W (7.62mm x 2.67mm) | 0.336" (8.53mm) | 2 | - |
|
Y09260R50000A12LRES 0.5 OHM 8W 0.05% TO220 |
0 |
|
Таблицы данных |
VPR221 | Bulk | Active | 500 mOhms | ±0.05% | 8W | Metal Foil | Non-Inductive | ±2ppm/°C | -55°C ~ 150°C | TO-220 | 0.400" L x 0.150" W (10.16mm x 3.81mm) | 0.845" (21.46mm) | 4 | - |
|
|
Y09410R00500F0LRES 0.005 OHM 2W 1% RADIAL |
0 |
|
Таблицы данных |
VCS202 | Bulk | Obsolete | 5 mOhms | ±1% | 2W | Metal Foil | Current Sense, Moisture Resistant | ±30ppm/°C | - | - | 1.240" L x 0.177" W (31.50mm x 4.50mm) | 0.512" (13.00mm) | 4 | - |
|
|
Y09410R00500F9LRES 0.005 OHM 2W 1% RADIAL |
0 |
|
Таблицы данных |
VCS202 | Bulk | Obsolete | 5 mOhms | ±1% | 2W | Metal Foil | Current Sense, Moisture Resistant | ±30ppm/°C | - | - | 1.240" L x 0.177" W (31.50mm x 4.50mm) | 0.512" (13.00mm) | 4 | - |
|
|
Y09410R01000D9LRES 0.01 OHM 2W .5% RADIAL |
0 |
|
Таблицы данных |
VCS202 | Bulk | Obsolete | 10 mOhms | ±0.5% | 2W | Metal Foil | Current Sense, Moisture Resistant | ±30ppm/°C | - | - | 1.240" L x 0.177" W (31.50mm x 4.50mm) | 0.512" (13.00mm) | 4 | - |
|
|
Y09410R01000F9LRES 0.01 OHM 2W 1% RADIAL |
0 |
|
Таблицы данных |
VCS202 | Bulk | Obsolete | 10 mOhms | ±1% | 2W | Metal Foil | Current Sense, Moisture Resistant | ±30ppm/°C | - | - | 1.240" L x 0.177" W (31.50mm x 4.50mm) | 0.512" (13.00mm) | 4 | - |
|
|
Y09410R02000D9LRES 0.02 OHM 0.5% 2W RADIAL |
0 |
|
Таблицы данных |
VCS202 | Bulk | Obsolete | 20 mOhms | ±0.5% | 2W | Metal Foil | Current Sense, Moisture Resistant | ±25ppm/°C | - | - | 1.240" L x 0.177" W (31.50mm x 4.50mm) | 0.512" (13.00mm) | 4 | - |
|
|
Y09410R03000D0LRES 0.03 OHM 2W .5% RADIAL |
0 |
|
Таблицы данных |
VCS202 | Bulk | Obsolete | 30 mOhms | ±0.5% | 2W | Metal Foil | Current Sense, Moisture Resistant | ±25ppm/°C | - | - | 1.240" L x 0.177" W (31.50mm x 4.50mm) | 0.512" (13.00mm) | 4 | - |
