Щупы для осциллографов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Значение затухания | Пропускная способность | Сопротивление - вход | Напряжение - макс. | Емкость - вход | Длина кабеля | Цвет |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

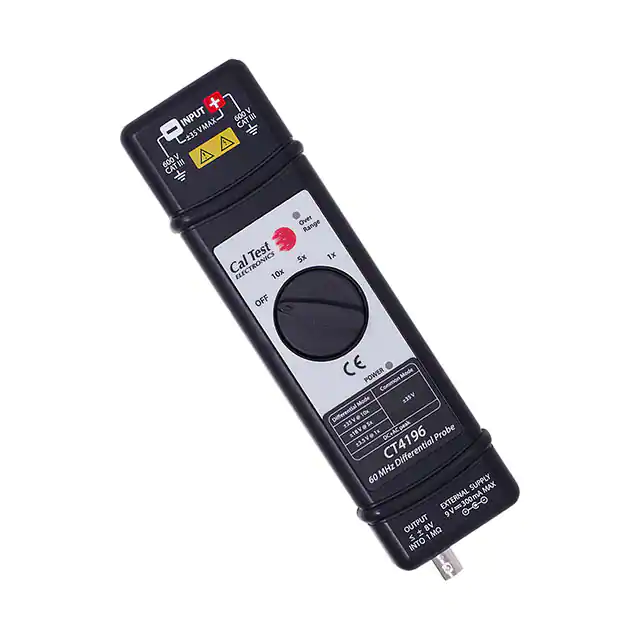

CT4196DIFFERENTIAL PROBE KIT, 60 MHZ, |
18 |
|
Таблицы данных |
- | Box | Active | Differential | 1:1, 5:1, 10:1 | 60MHz | 1M | 35V (DC + AC Peak) | 2.5pF | 39.370" (1000.00mm) | Black and Red |
|

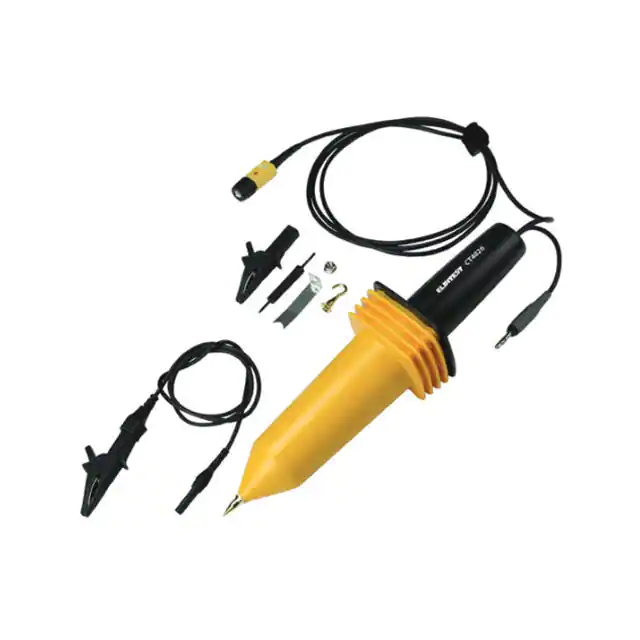

CT4026OSCOPE PROBE X1K 150MHZ 200M |
8 |
|
Таблицы данных |
Elditest™, Cal Test | Bulk | Active | Voltage Probe | 1000:1 | 150MHz | 200M | 18000V (18kV) (DC + AC Peak) | 1.5pF | 78.740" (2000.00mm) | Black and Yellow |
|

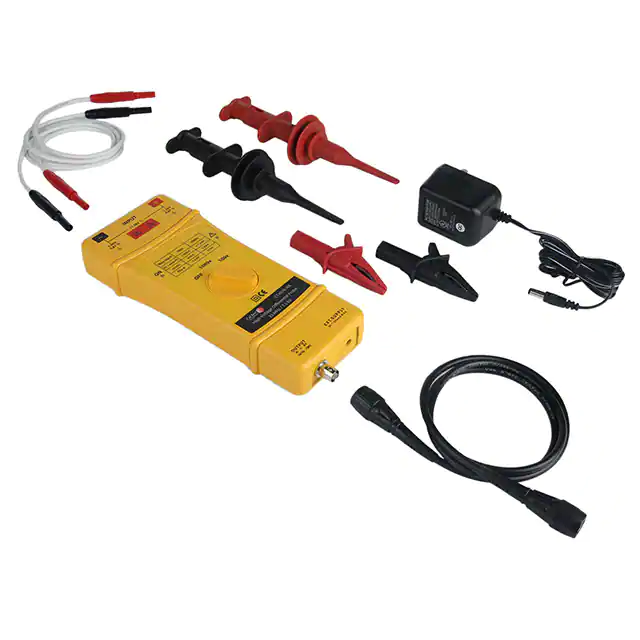

CT4076-NAOSCOPE PROBE X100/X1K 35MHZ 50M |
13 |
|
Таблицы данных |
Elditest™, Cal Test | Bulk | Active | Active Differential | 100:1, 1000:1 | 35MHz | 50M | 7500V (7.5kV) (DC + AC Peak) | 1.3pF | 39.370" (1000.00mm) | Black, Red, Yellow |
|

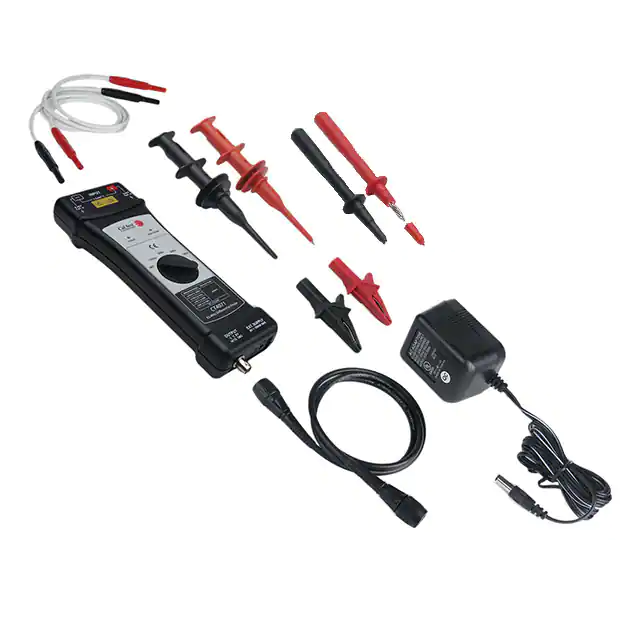

CT4072OSCOPE P X100/200/500/1K 100MHZ |
13 |
|
Таблицы данных |
- | Box | Active | Active Differential | 100:1, 200:1, 500:1, 1000:1 | 100MHz | 54M | 3.5kV (DC + AC Peak) | 1.2pF | 39.370" (1000.00mm) | Black and Red |
|

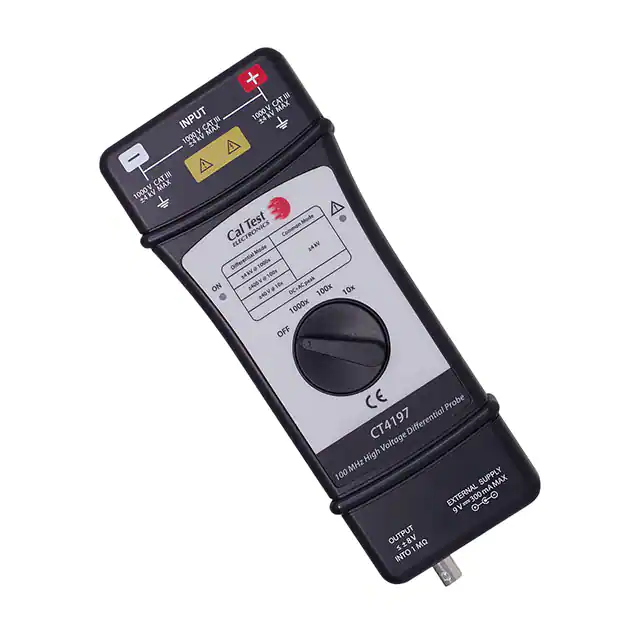

CT4197DIFFERENTIAL PROBE KIT, 100 MHZ, |
10 |
|
Таблицы данных |
- | Box | Active | Differential | 10:1, 100:1, 1000:1 | 100MHz | 20M | 4000V (4kV) (DC + AC Peak) | 2pF | 39.370" (1000.00mm) | Black and Red |
|
CT4028AHIVOLT PROBE 39KV 50MHZ 2.0M BNC |
22 |
|
Таблицы данных |
Cal Test | Box | Active | Voltage Probe | 1000:1 | 50MHz | 1M | 39000V (39kV) (DC + ACmax) | 10pF, 35pF | - | Black, Red, Yellow |
|

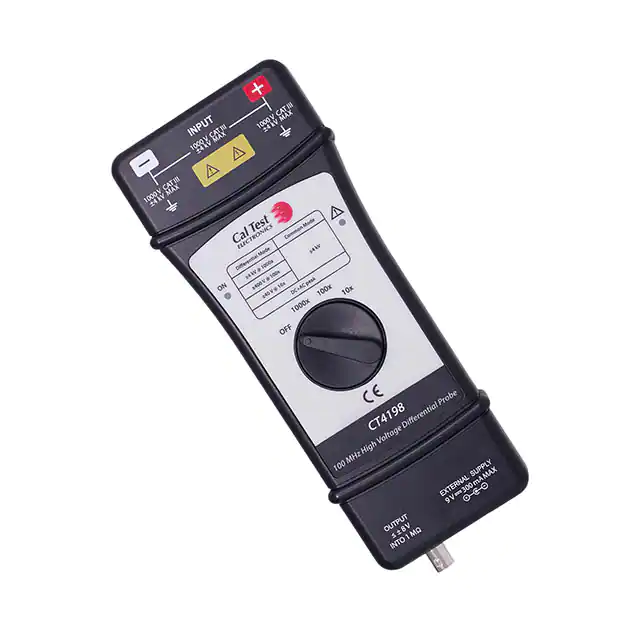

CT4198DIFFERENTIAL PROBE KIT, 100 MHZ, |
6 |
|
Таблицы данных |
- | Box | Active | Differential | 20:1, 200:1, 2000:1 | 100MHz | 30M | 8000V (8kV) (DC + AC Peak) | 1.5pF | 39.370" (1000.00mm) | Black and Red |
|

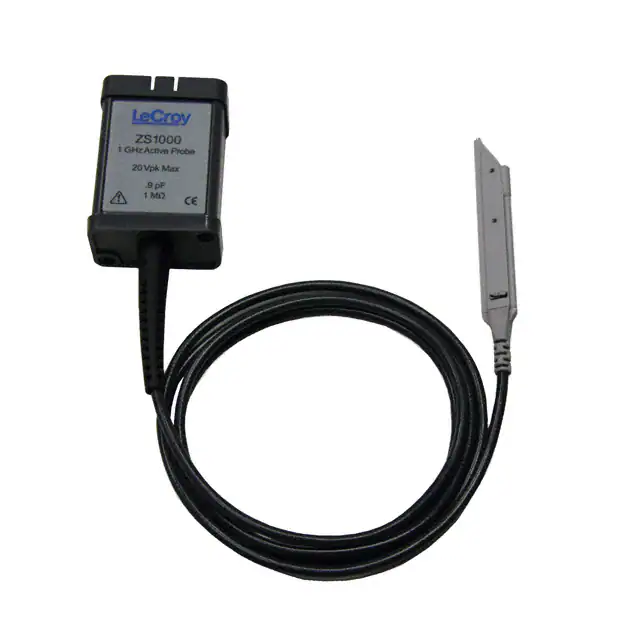

ZS1000OSCOPE PROBE X10 1GHZ 1M |
21 |
|
Таблицы данных |
ZS | Box | Active | Voltage Probe | 10:1 | 1GHz | 1M | 20V | 0.9pF | 51.181" (1300.00mm) | Black |
|
HVD3106A-NOACC1KV 120 MHZ HIGH VOLTAGE DIFFERE |
4 |
|
Таблицы данных |
HVD3000A | Box | Active | Voltage Probe, Differential | 50:1, 500:1 | 120MHz | 1M | CAT III 1000V | 2.5pF | 78.740" (2000.00mm) | Black and Red |
|

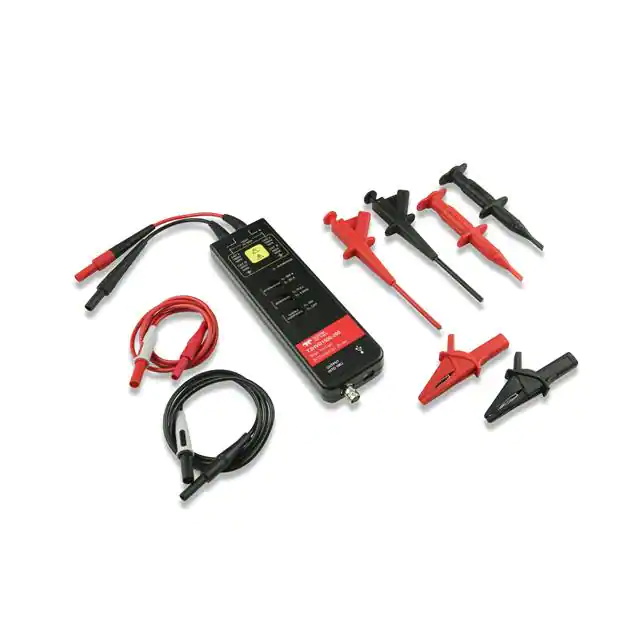

T3HVD1500-200HIGH VOLTAGE DIFFERENTIAL PROBE |
5 |
|
Таблицы данных |
T3HVD | Box | Active | Voltage Probe, Differential | 50:1, 500:1 | 200MHz | 10M | CAT II 1000V, CAT III 600V | 2pF | 6.693" (170.00mm) | Black and Red |
|
HVD3106AOSCOPE PROBE X50/X500 120MHZ 10M |
13 |
|
Таблицы данных |
HVD3000A | Box | Active | Voltage Probe, Differential | 50:1, 500:1 | 120MHz | 10M | CAT III 1000V | 2.5pF | 88.583" (2250.00mm) | Black and Red |
|

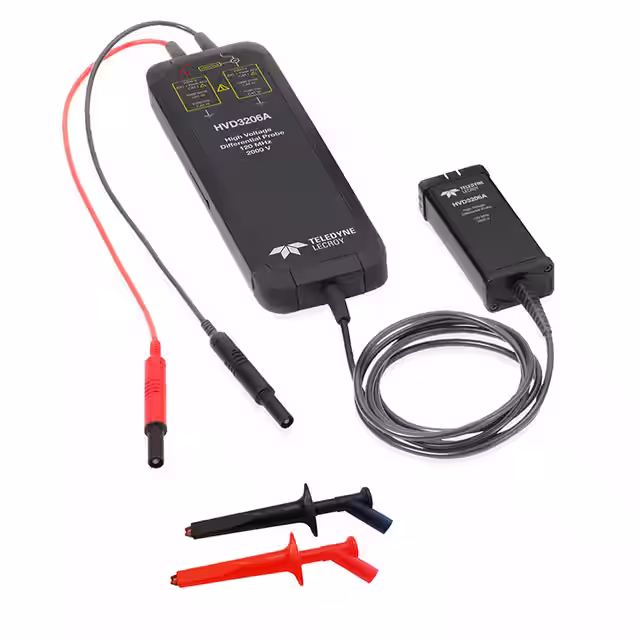

HVD3206AOSCOPE PROBE X50/X500 120MHZ 10M |
9 |
|
Таблицы данных |
HVD3000A | Box | Active | Voltage Probe, Differential | 50:1, 500:1 | 120MHz | 10M | CAT I 2000V, CAT III 1500V | 2.5pF | 88.583" (2250.00mm) | Black and Red |
|
|
DL02-HCM250MHZ 60V COMMON MODE DIFF PROB |
2 |
|
Таблицы данных |
- | Box | Active | Differential | - | 250MHz | - | 60V | 0.6pF | 55.906" (1420.00mm) | Black |
|

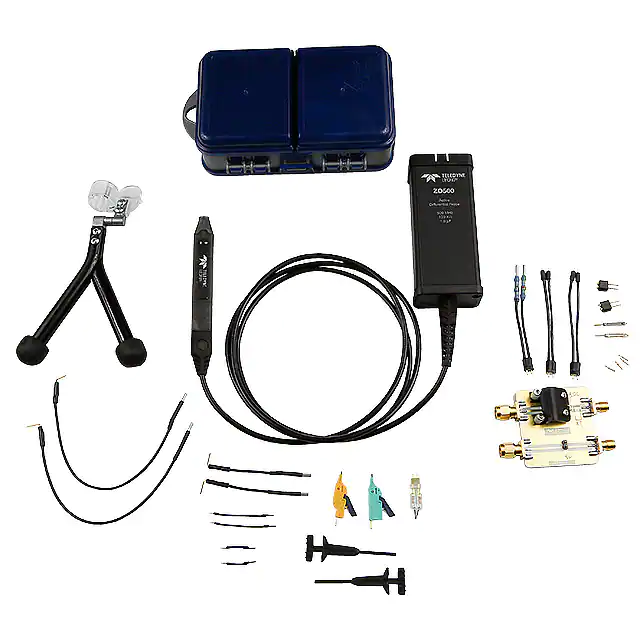

ZD500OSCOPE PROBE X10 500MHZ 1M |
2 |
|
Таблицы данных |
ZD | Box | Active | Active Differential | 10:1 | 500MHz | 1M | 8V | 1pF | - | Black |
|

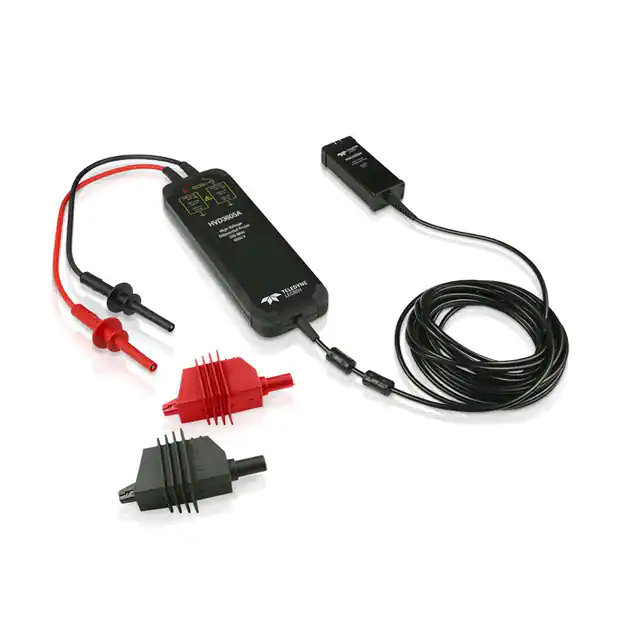

HVD3605A6KV 100 MHZ HIGH VOLTAGE DIFFERE |
7 |
|
Таблицы данных |
HVD3000A | Box | Active | Voltage Probe, Differential | 200:1, 2000:1 | 100MHz | 1M | CAT I 8485V, CAT III 1500V | 2.5pF | 236.220" (6000.00mm) | Black and Red |
|

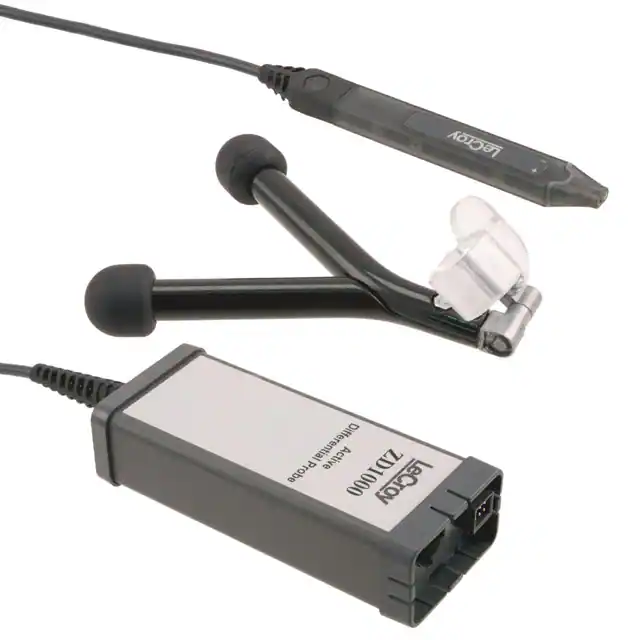

ZD1000OSCOPE PROBE X10 1GHZ 1M |
3 |
|
Таблицы данных |
ZD | Box | Active | Active Differential | 10:1 | 1GHz | 1M | 8V | 1pF | - | Black |
|

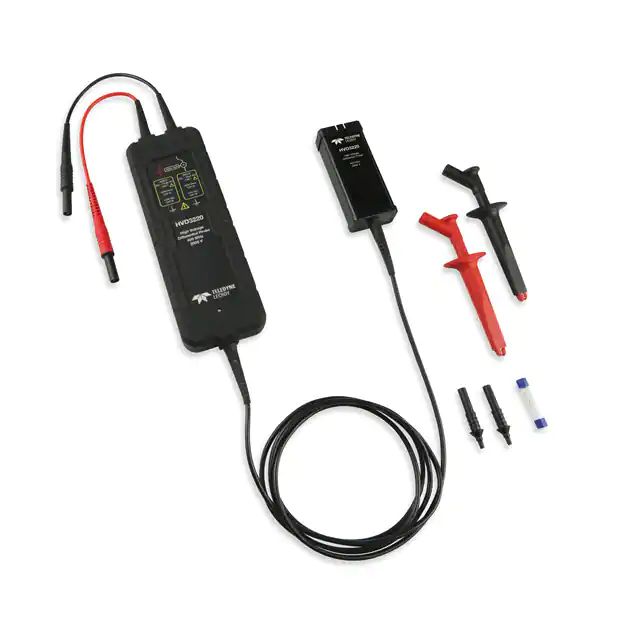

HVD32202KV 400MHZ HIGH VOLTAGE DIFFEREN |
4 |
|
Таблицы данных |
HVD | Box | Active | Voltage Probe, Differential | - | 400MHz | - | CAT I 2000V, CAT III 1500V | - | - | Black and Red |
|

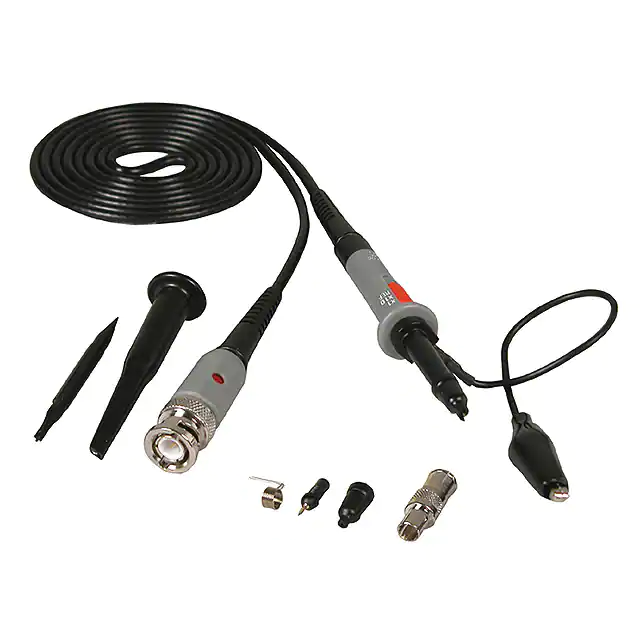

CT2674AOSCOPE PROBE X1/X10 100MHZ 10M |
8 |
|
Таблицы данных |
Cal Test | Bulk | Active | Passive | 1:1, 10:1 | 100MHz | 10M | CAT II 300V | 16pF | 47.244" (1200.00mm) | Black |
|

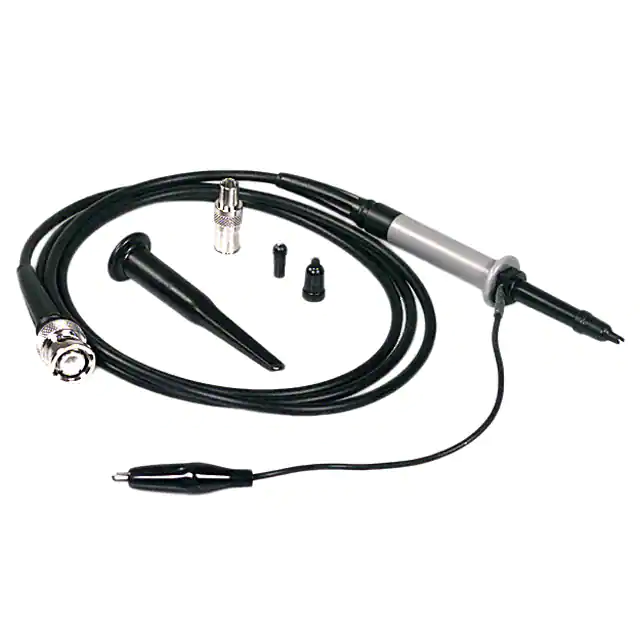

1P20BOSCOPE PROBE X1 15MHZ 1M |
25 |
|
Таблицы данных |
1P20B | Bulk | Active | Passive | 1:1 | 15MHz | 1M | 150V | 47pF | 47.244" (1200.00mm) | - |
|
GE2501OSCOPE PROBE X1 55MHZ 1M |
12 |
|
Таблицы данных |
GE, Elditest™, Cal Test | Bulk | Active | Passive | 1:1 | 55MHz | 1M | CAT II 300V | 45pF | 47.244" (1200.00mm) | Black and Gray |
