Тантало-полимерные конденсаторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Емкость | Допуск | Напряжение - Номинальное | Тип | ESR (эквивалентное последовательное сопротивление) | Рабочая температура | Срок службы при темп. | Тип крепления | Размер/измерение | Высота - в сидячем положении (макс.) | Расстояние между выводами | Код размера производителя | Номинальные значения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

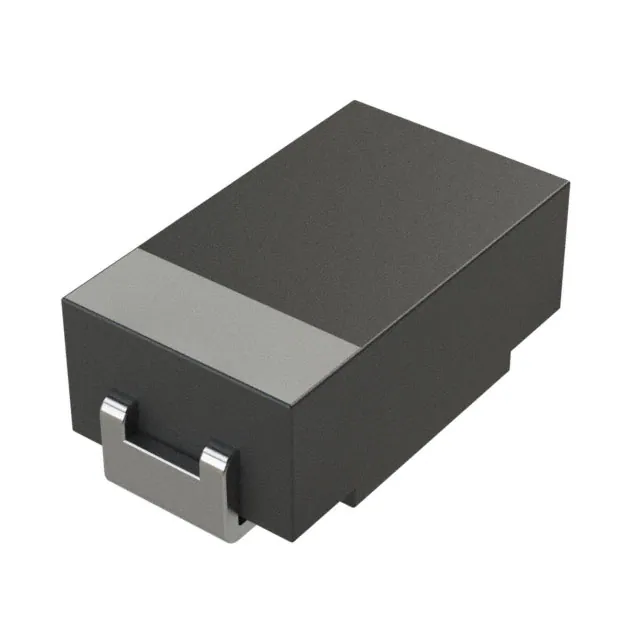

TCQD226M020R0070ECAP TANT POLY 22UF 20V 2917 KYOCERA AVX |
2,024 |
|
- |
TCQ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 20 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
TCJD226M035R0070CAP TANT POLY 22UF 35V 2917 KYOCERA AVX |
4,537 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 35 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJR106M006R0500ECAP TANT POLY 10UF 6.3V 0805 KYOCERA AVX |
4,414 |
|
- |
TCJ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 6.3 V | Molded | 500mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.047" (1.20mm) | - | R | - | General Purpose |
|
|
TCJD226M035R0100ECAP TANT POLY 22UF 35V 2917 KYOCERA AVX |
1,847 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 35 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJD106M050R0090CAP TANT POLY 10UF 50V 2917 KYOCERA AVX |
849 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 50 V | Molded | 90mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
TCNT226M025R0200ECAP TANT POLY 22UF 25V 1411 KYOCERA AVX |
12,542 |
|
- |
TCN J-CAP | 1411 (3528 Metric), 1210 | Tape & Reel (TR) | Active | 22 µF | ±20% | 25 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | T | - | General Purpose |
|
|
TCJX477M006R0100CAP TANT POLY 470UF 6.3V 2917 KYOCERA AVX |
2,014 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | X | - | General Purpose |
|
TCJX477M006R0050ECAP TANT POLY 470UF 6.3V 2917 KYOCERA AVX |
1,568 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | Molded | 50mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | X | - | General Purpose |
|
|
TCJE107M025R0080ECAP TANT POLY 100UF 25V 2917 KYOCERA AVX |
287 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | Molded | 80mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
|
TCNX476M035R0150ECAP TANT POLY 47UF 35V 2917 KYOCERA AVX |
2,100 |
|
- |
TCN J-CAP | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 35 V | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | X | - | General Purpose |
