Специализированные резисторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Тип | Применение | Состав | Сопротивление | Допуск | Мощность (Вт) | Температурный коэффициент | Рабочая температура | Импеданс |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KABR400 10R JMETAL CLAD BRAKING RESISTOR 400W |
16 |
|
Таблицы данных |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 10 Ohms | - | ±5% | 400W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|

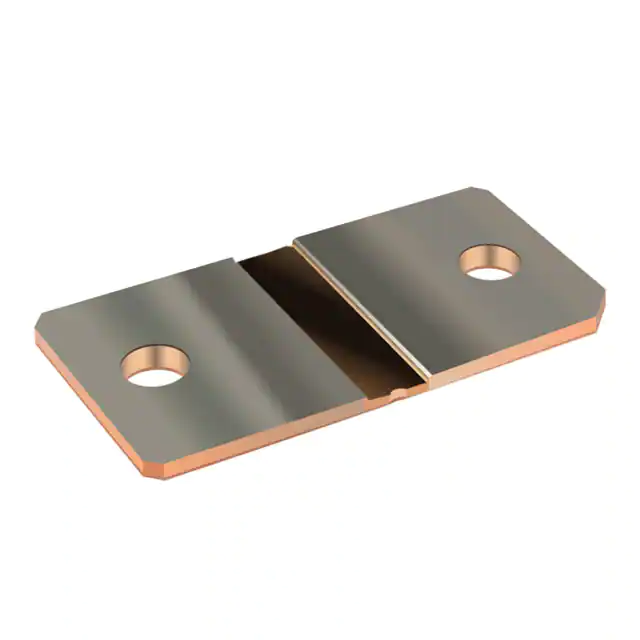

CSM2F-7036-L050J01RESISTOR 50 UOHM 5% 50W |
29 |
|
Таблицы данных |
CSM2F-7036 | Bulk | Active | - | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
|
KABR500 100R JMETAL CLAD BRAKING RESISTOR 500W |
23 |
|
Таблицы данных |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 100 Ohms | - | ±5% | 500W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
WSBS5216L1000KKRESISTOR SHUNT 100 UOHM 10% 12W |
100 |
|
Таблицы данных |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±10% | 12W | ±150ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS5216L1000KK14RESISTOR SHUNT 100 UOHM 10% 12W |
96 |
|
Таблицы данных |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±10% | 12W | ±150ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L1250JTRESISTOR SHUNT 125 UOHM 5% 36W |
92 |
|
Таблицы данных |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS5216L1000KTRESISTOR SHUNT 100 UOHM 10% 12W |
99 |
|
Таблицы данных |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±10% | 12W | ±150ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS5216L1000JKRESISTOR SHUNT 100 UOHM 5% 12W |
72 |
|
Таблицы данных |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 12W | ±150ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L0500JT40RESISTOR SHUNT 50 UOHM 5% 36W |
70 |
|
Таблицы данных |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L1250JK14RESISTOR SHUNT 125 UOHM 5% 36W |
100 |
|
Таблицы данных |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
SH8518F800AHEP8518 SHUNT 840A M3 |
52 |
|
Таблицы данных |
SHA | Box | Active | Shunt, Battery | - | - | 50 µOhms | - | ±1% | 36W | - | - | Through Hole |
|
|
SH8518F800APEP8518 SHUNT 840A PIN |
94 |
|
Таблицы данных |
SHA | Box | Active | Shunt, Battery | - | - | 50 µOhms | - | ±1% | 36W | - | - | Through Hole |
|
|
SH6918F700AHEP6918 SHUNT 700A M3 |
60 |
|
Таблицы данных |
SHA | Box | Active | Shunt, Battery | - | - | 50 µOhms | - | ±1% | 25W | - | - | Through Hole |
|
WSBS8518L1250JK20RESISTOR SHUNT 125 UOHM 5% 36W |
99 |
|
Таблицы данных |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8536L0250JK8025 UOHMS 5% 50W SHUNT, BATTERY S |
86 |
|
Таблицы данных |
WSBS8536 | Bulk | Active | Shunt, Battery | - | Metal Element | 25 µOhms | - | ±5% | 50W | ±20ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L2500JKP3RESISTOR SHUNT 250 UOHM 5% 36W |
100 |
|
Таблицы данных |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 250 µOhms | - | ±5% | 36W | ±110ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L0500JKP4RESISTOR SHUNT 50 UOHM 5% 36W |
100 |
|
Таблицы данных |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L1000JKP4RESISTOR SHUNT 100 UOHM 5% 36W |
100 |
|
Таблицы данных |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L1250JKP4RESISTOR SHUNT 125 UOHM 5% 36W |
100 |
|
Таблицы данных |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L2500JKP4RESISTOR SHUNT 250 UOHM 5% 36W |
100 |
|
Таблицы данных |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 250 µOhms | - | ±5% | 36W | ±110ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
