БОМ
Динамики
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM280604-2SPEAKER 4OHM 200MW TOP PORT 90DB |
315 |
|
Таблицы данных |
- | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 20 kHz | 650Hz | 4 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|

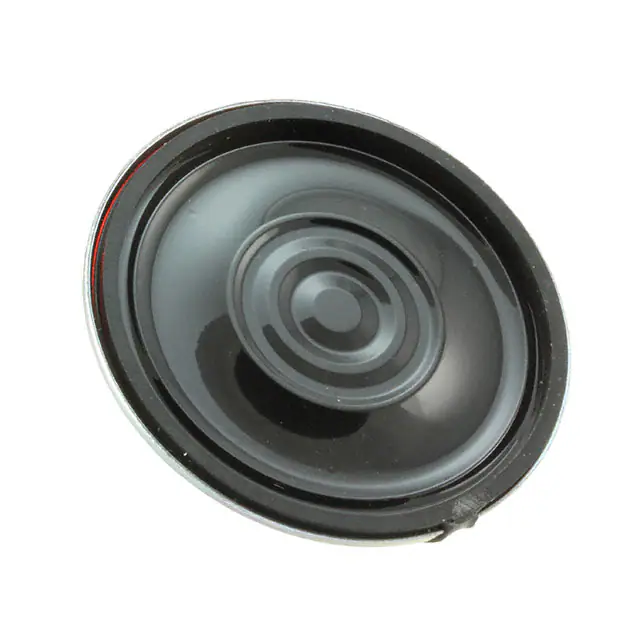

PSR36N08AKSPEAKER 8OHM 1W TOP PORT 88DB |
782 |
|
Таблицы данных |
PSR | Bulk | Active | Magnetic | General Purpose | 570 Hz ~ 5 kHz | 570Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.417" Dia (36.00mm) |
|

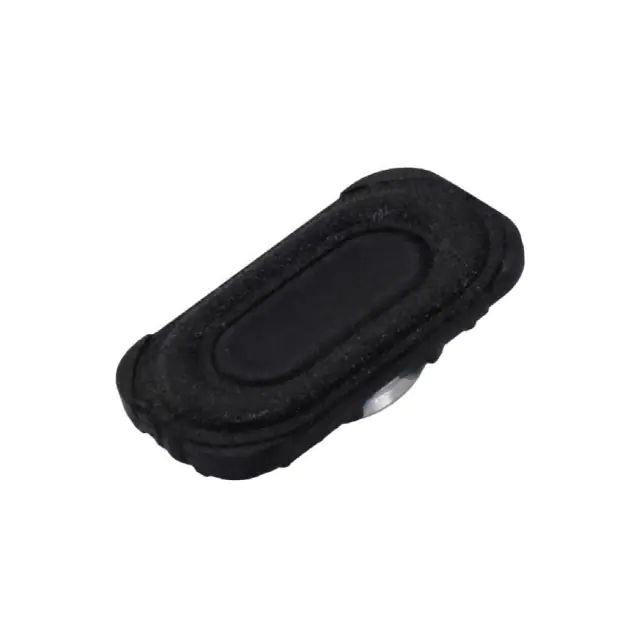

CMS-25145-28SP-67SPEAKER 8OHM 1.5W TOP PORT 81DB |
359 |
|
Таблицы данных |
CMS | Tray | Active | Magnetic | General Purpose | 560 Hz ~ 20 kHz | 700Hz | 8 Ohms | 81.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Polyurethane (PU), Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|

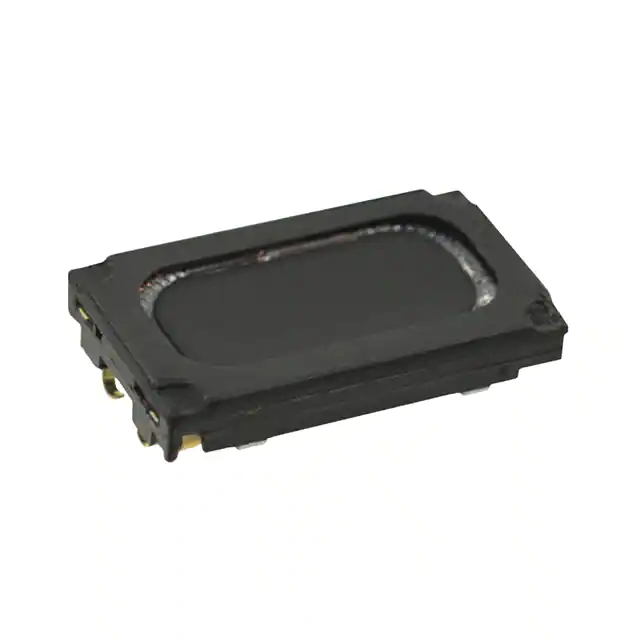

CMS-160916A-SPSPEAKER 6OHM 800MW TOP PORT 88DB |
116 |
|
Таблицы данных |
CMS | Tray | Active | Magnetic | Low Profile | 552.5 Hz ~ 20 kHz | 650Hz | 6 Ohms | 88.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
GF0501MSPEAKER 8OHM 250MW TOP PORT 86DB |
3,111 |
|
Таблицы данных |
GF | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 5.8 kHz | 440Hz | 8 Ohms | 86.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
CMS-40558N-L152BSPEAKER 8OHM 500MW TOP PORT 90DB |
457 |
|
Таблицы данных |
CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 6 kHz | 500Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.575" Dia (40.00mm) |
|

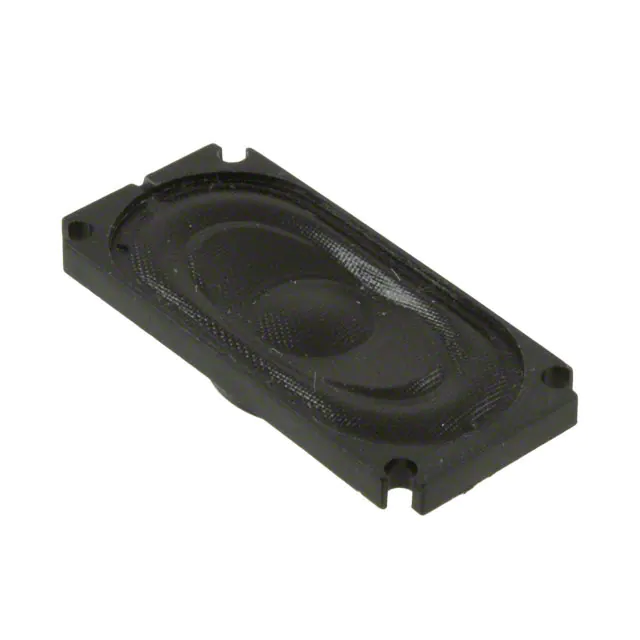

GC0351M-3SPEAKER 8OHM 1W TOP PORT 83DB |
1,897 |
|
Таблицы данных |
GC | Tray | Active | Magnetic | General Purpose | 520 Hz ~ 20 kHz | 650Hz | 8 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.378" L x 0.630" W (35.00mm x 16.00mm) |
|

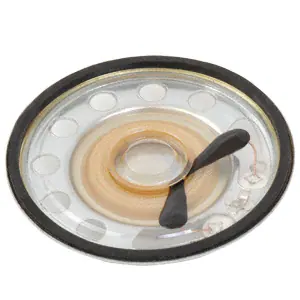

CLS0501MSPEAKER 8OHM 200MW TOP PORT 80DB |
980 |
|
Таблицы данных |
CLS | Tray | Active | Magnetic | Low Profile | 550 Hz ~ 13 kHz | 550Hz | 8 Ohms | 80.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
CDS-27204-L1003SPEAKER 4OHM 2W TOP PORT 93DB |
981 |
|
Таблицы данных |
CDS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 850Hz | 4 Ohms | 93.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads with Connector | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
|
CLS0301MASPEAKER 8OHM 200MW TOP PORT 89DB |
171 |
|
Таблицы данных |
CLS | Tray | Active | Magnetic | Low Profile | 550 Hz ~ 13 kHz | 550Hz | 8 Ohms | 89.00 | 1W/500mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.181" Dia (30.00mm) |
|
SC261704-1SPEAKER DYNAMIC |
1,784 |
|
Таблицы данных |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SM310204-1SPEAKER 4OHM 2W TOP PORT 97DB |
872 |
|
Таблицы данных |
Dynamis | Tray | Active | Magnetic | General Purpose | 240 Hz ~ 10 kHz | 240Hz | 4 Ohms | 97.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester | - | - | - | Solder Eyelet(s) | 1.220" Dia (31.00mm) |
|
GF0701SPEAKER 8OHM 500MW TOP PORT 91DB |
948 |
|
Таблицы данных |
GF | Box | Active | Magnetic | General Purpose | 310 Hz ~ 4 kHz | 310Hz | 8 Ohms | 91.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.756" Dia (70.00mm) |
|
|
GF0661SPEAKER 8OHM 300MW TOP PORT 86DB |
1,000 |
|
Таблицы данных |
GF | Box | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 300Hz | 8 Ohms | 86.00 | 300mW/500mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.598" Dia (66.00mm) |
|

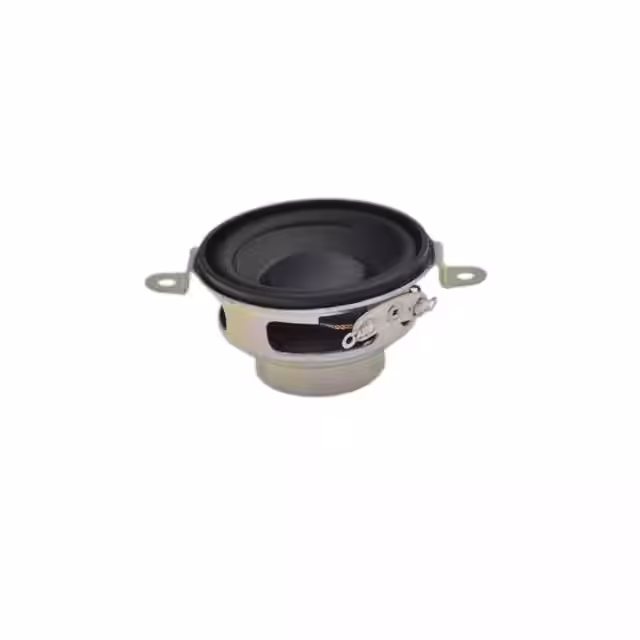

WSP-4023YSPEAKER 4OHM 300MW TOP PORT 79DB |
184 |
|
Таблицы данных |
- | Tray | Active | Magnetic | General Purpose | 230 Hz ~ 20 kHz | 230Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 1.587" Dia (40.30mm) |
|
SM280708-2SPEAKER DYNAMIC |
1,361 |
|
Таблицы данных |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

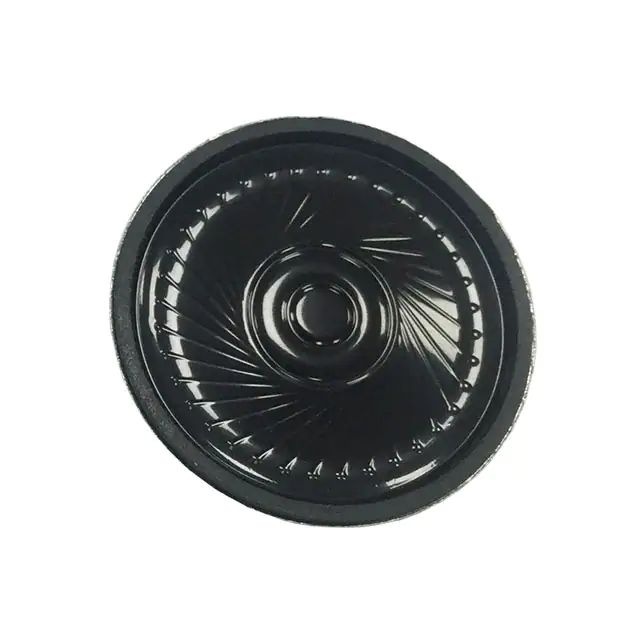

SP-4005SSPEAKER 8OHM 1W TOP PORT 93DB |
273 |
|
Таблицы данных |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 93.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N38 | - | - | Spring Type | 1.575" Dia (40.00mm) |
|
SW280408-2SPEAKER 8OHM 800MW TOP PORT 89DB |
254 |
|
Таблицы данных |
SW | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 10 kHz | 400Hz | 8 Ohms | 89.00 | 100mm | Sound Pressure Level (SPL) | 800 mW | 1.2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | - | 1.102" Dia (28.00mm) |
|

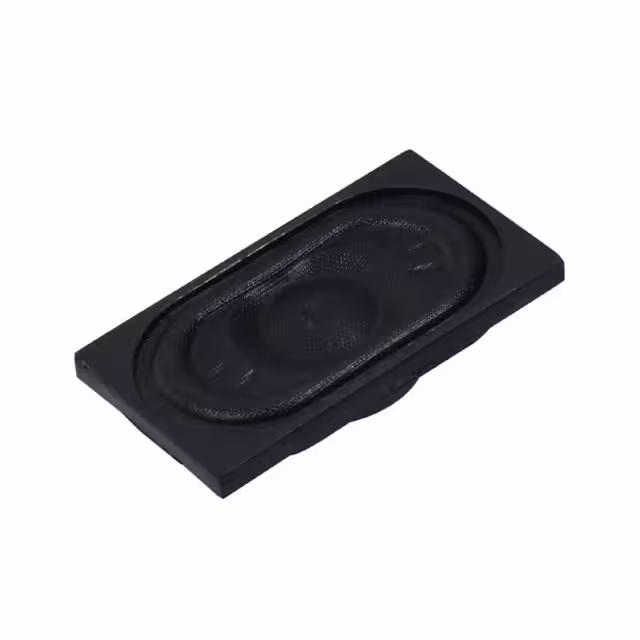

CMS-35206-158SPEAKER 8OHM 1.5W TOP PORT 100DB |
240 |
|
Таблицы данных |
CMS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.374" L x 0.787" W (34.90mm x 20.00mm) |
|

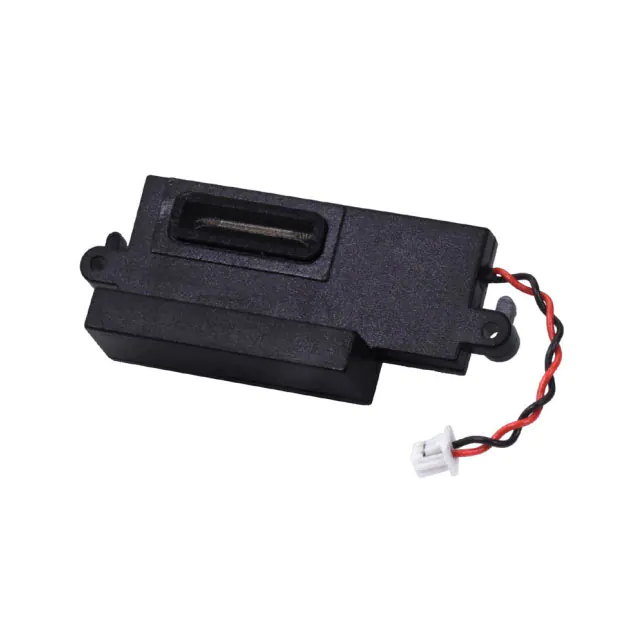

CES-361810-18PMSPEAKER 8OHM 1W TOP PORT 90.5DB |
226 |
|
Таблицы данных |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 800 Hz ~ 10 kHz | 1kHz | 8 Ohms | 90.50 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.610" L x 0.728" W (40.90mm x 18.50mm) |
