Трафареты для пайки, шаблоны
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество положений | Шаг | Внешний размер | Внутренний размер | Тепловая центральная площадка | Материал |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPC0250-SSMD-0.5 (3.81 MM PITCH, 10.28 X |
10 |
|
Таблицы данных |
CHIPQUIK® | Bulk | Active | - | 8 | 0.150" (3.81mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.400" L x 0.390" W (10.16mm x 9.91mm) | - | Stainless Steel |
|
|
IPC0246-SMODULE-5 (0.822 MM PITCH, 3.5 X |
10 |
|
Таблицы данных |
Proto-Advantage IPC | Bulk | Active | Module | 5 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.138" L x 0.138" W (3.50mm x 3.50mm) | - | Stainless Steel |
|
|
IPC0254-SSOT89-5 (1.5 MM PITCH, 4.6 X 2.6 |
10 |
|
Таблицы данных |
CHIPQUIK® | Bulk | Active | - | 5 | 0.059" (1.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.102" L x 0.063" W (2.60mm x 1.60mm) | - | Stainless Steel |
|
|
IPC0247-SMODULE-6 (0.966 MM PITCH, 3.76 X |
10 |
|
Таблицы данных |
Proto-Advantage IPC | Bulk | Active | Module | 6 | 0.038" (0.97mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | Stainless Steel |
|
|
IPC0257-SQFN-34 (0.4 MM PITCH, 5 X 4 MM B |
10 |
|
Таблицы данных |
Proto-Advantage IPC | Bulk | Active | QFN | 34 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.157" W (5.00mm x 4.00mm) | - | Stainless Steel |
|
|
IPC0251-SDFN-18 (0.5 MM PITCH, 5 X 5 MM B |
10 |
|
Таблицы данных |
Proto-Advantage IPC | Bulk | Active | DFN | 18 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
|
|
IPC0248-SPLCC-12 (1.27 MM PITCH, 5 X 5 MM |
10 |
|
Таблицы данных |
Proto-Advantage IPC | Bulk | Active | PLCC | 12 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
|

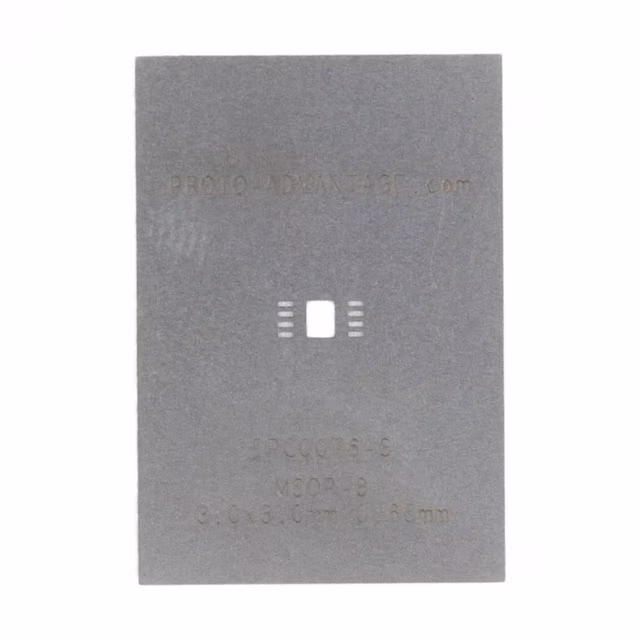

IPC0076-SMSOP-8 STENCIL |
9 |
|
Таблицы данных |
Proto-Advantage IPC | Bulk | Active | MSOP | 8 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.110" L x 0.079" W (2.80mm x 2.00mm) | Stainless Steel |
|

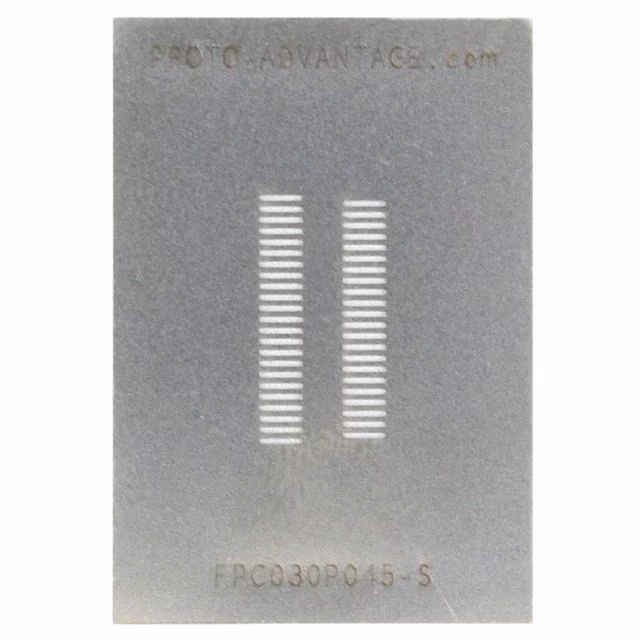

FPC030P045-SFPC/FFC SMT CONN STENCIL |
9 |
|
Таблицы данных |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 45 | 0.024" (0.60mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
|
IPC0245-SBGA-4 (0.4 MM PITCH, 0.88 X 0.88 |
9 |
|
Таблицы данных |
Proto-Advantage IPC | Bulk | Active | BGA | 4 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.033" L x 0.033" W (0.85mm x 0.85mm) | - | Stainless Steel |
|
|
IPC0249-SRAD-PAK-70 (0.635 MM PITCH, 20.8 |
9 |
|
Таблицы данных |
CHIPQUIK® | Bulk | Active | - | 70 | 0.025" (0.64mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | 1.000" L x 0.819" W (25.40mm x 20.80mm) | - | Stainless Steel |
|
|
IPC0242-SMODULE-29 (1.016 MM PITCH, 21.72 |
9 |
|
Таблицы данных |
Proto-Advantage IPC | Bulk | Active | Module | 29 | 0.039" (1.00mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.855" L x 0.580" W (21.72mm x 14.73mm) | - | Stainless Steel |
|
|
IPC0253-SPOWERPAK 1212-8 DOUBLE (0.65 MM |
9 |
|
Таблицы данных |
CHIPQUIK® | Bulk | Active | PowerPAK | 8 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | - | Stainless Steel |
|
|
IPC0244-SBGA-4 (0.35 MM PITCH, 0.64 X 0.6 |
9 |
|
Таблицы данных |
Proto-Advantage IPC | Bulk | Active | BGA | 4 | 0.014" (0.35mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.033" L x 0.033" W (0.85mm x 0.85mm) | - | Stainless Steel |
|
|
IPC0258-SWQFN-14 (510BR) (0.5 MM PITCH, 2 |
9 |
|
Таблицы данных |
CHIPQUIK® | Bulk | Active | - | 14 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.098" L x 0.098" W (2.50mm x 2.50mm) | - | Stainless Steel |
|

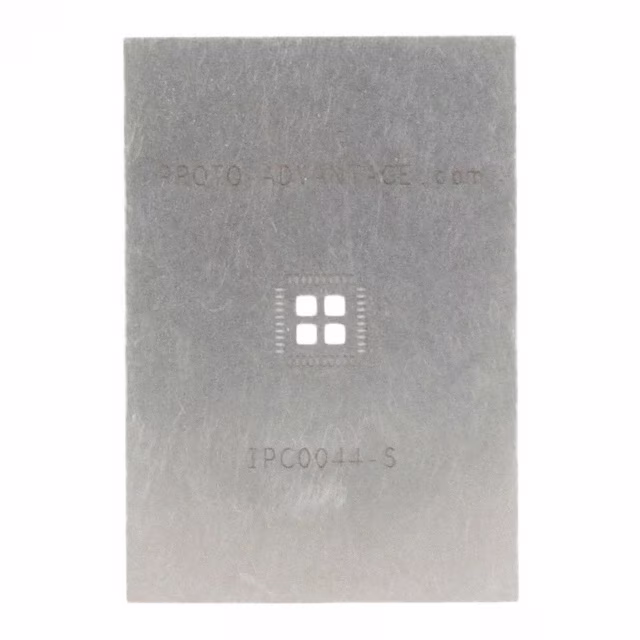

IPC0044-SQFN-40 STENCIL |
8 |
|
Таблицы данных |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 40 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.138" L x 0.138" W (3.50mm x 3.50mm) | Stainless Steel |
|

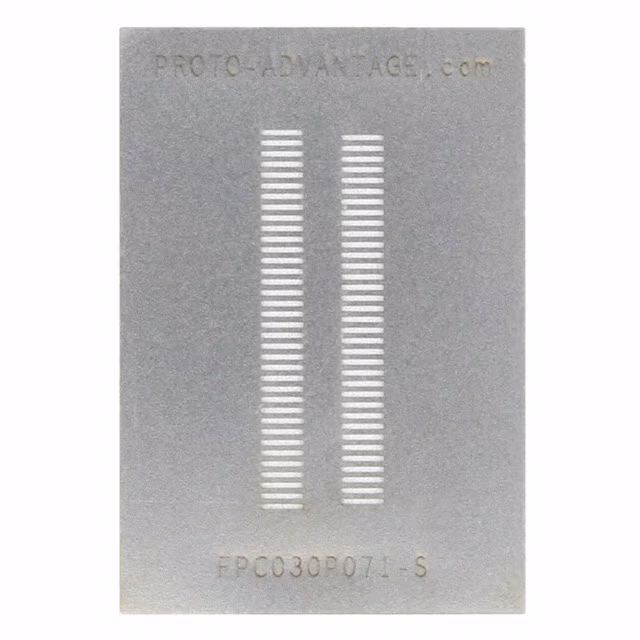

FPC030P071-SFPC/FFC SMT CONN STENCIL |
8 |
|
Таблицы данных |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 71 | 0.024" (0.60mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
|
IPC0252-SPOWERPAK 1212-8 SINGLE (0.65 MM |
8 |
|
Таблицы данных |
CHIPQUIK® | Bulk | Active | PowerPAK | 8 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | - | Stainless Steel |
|
|
IPC0256-SLGA-28 (0.5 MM PITCH, 5.2 X 3.8 |
8 |
|
Таблицы данных |
Proto-Advantage IPC | Bulk | Active | LGA | 28 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.220" L x 0.110" W (5.60mm x 2.80mm) | - | Stainless Steel |
|
|
IPC0243-SDFN-6 (0.8 MM PITCH, 2.45 X 2.45 |
7 |
|
Таблицы данных |
Proto-Advantage IPC | Bulk | Active | DFN | 6 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.094" L x 0.079" W (2.40mm x 2.00mm) | - | Stainless Steel |
