Ползунковые переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Время контакта | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

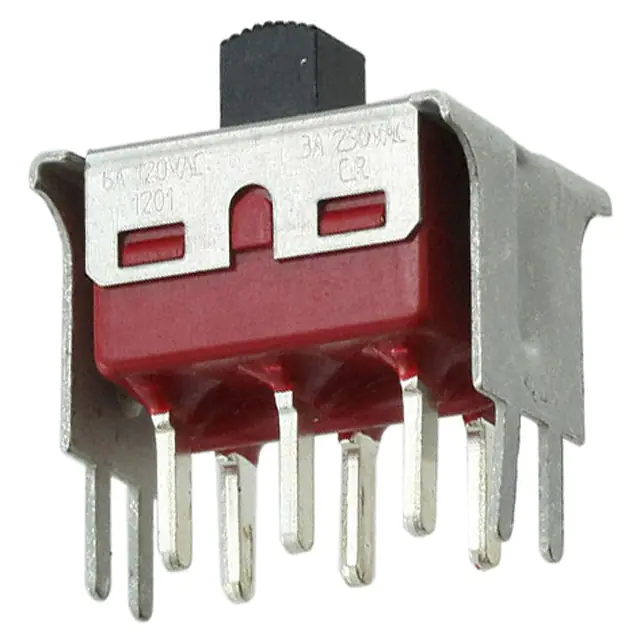

1201M2S3V3QE2SWITCH SLIDE DPDT 6A 120V |
70 |
|
Таблицы данных |
1000 | Tray | Active | DPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
25346NA6SWITCH SLIDE DPDT 4A 125V |
69 |
|
Таблицы данных |
25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 6.00mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
SQR31103WHSWITCH SLIDE SPST 2.5A 120V |
8 |
|
Таблицы данных |
Square D, X | Box | Active | SPST | Not Specified | - | 2.5A (AC) | 120 V | - | Flush | - | - | - | Panel Mount | Screw Terminal | - |
|
|
SQR31103BKSWITCH SLIDE SPST 2.5A 120V |
7 |
|
Таблицы данных |
Square D, X | Box | Active | SPST | Not Specified | - | 2.5A (AC) | 120 V | - | Flush | - | - | - | Panel Mount | Screw Terminal | - |
|
GF-126-0119SWITCH SLIDE DPDT 500MA 125V |
228 |
|
Таблицы данных |
GF | Bulk | Active | DPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|

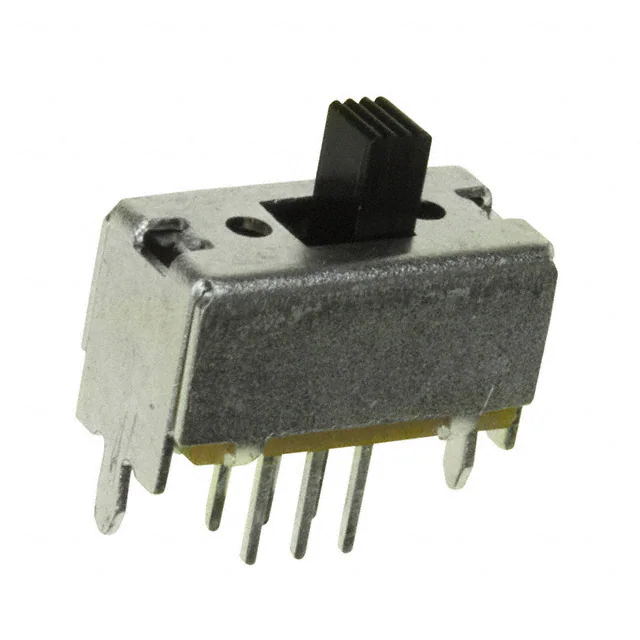

OS202011MV4QS1SWITCH SLIDE DPDT 100MA 30V |
864 |
|
Таблицы данных |
OS | Bulk | Active | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

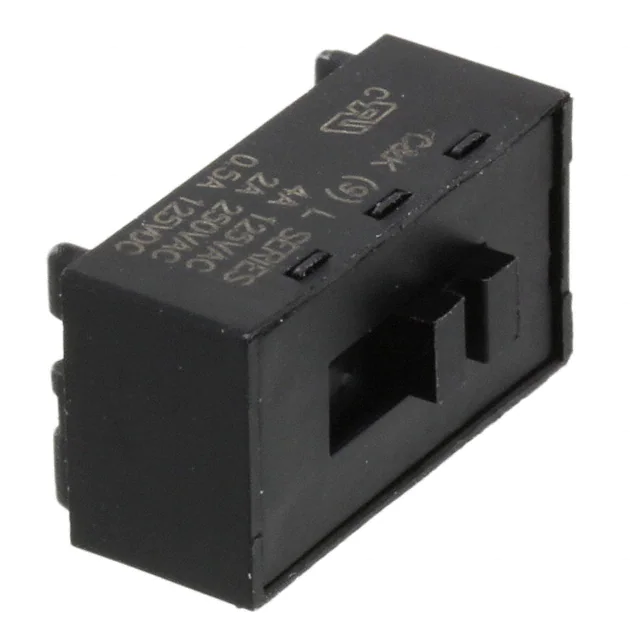

L101121MS02QSWITCH SLIDE SPST 4A 125V |
47 |
|
Таблицы данных |
L | Bulk | Active | SPST | Not Specified | On-Off | 4A (AC/DC) | 125 V | 28 V | Screwdriver Slot | 1.65mm | Copper | Silver | Through Hole | PC Pin | - |
|

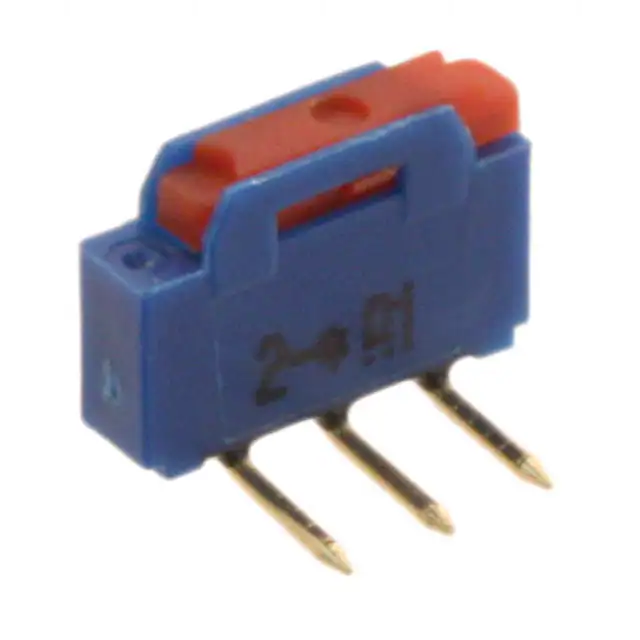

NK236WSWITCH SLIDE SPDT 500MA 12V |
43 |
|
Таблицы данных |
NK | Bulk | Active | SPDT | Not Specified | On-On | 500mA (DC) | - | 12 V | Flush | - | Nickel | Gold | Through Hole, Right Angle | PC Pin | Sealed - Flux Protection |
|
|
500SDP1S4M1REBSWITCH SLIDE DPDT 0.4VA 20V |
90 |
|
Таблицы данных |
500 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.56mm | Copper Alloy | Gold | Panel Mount | Solder Lug | - |
|

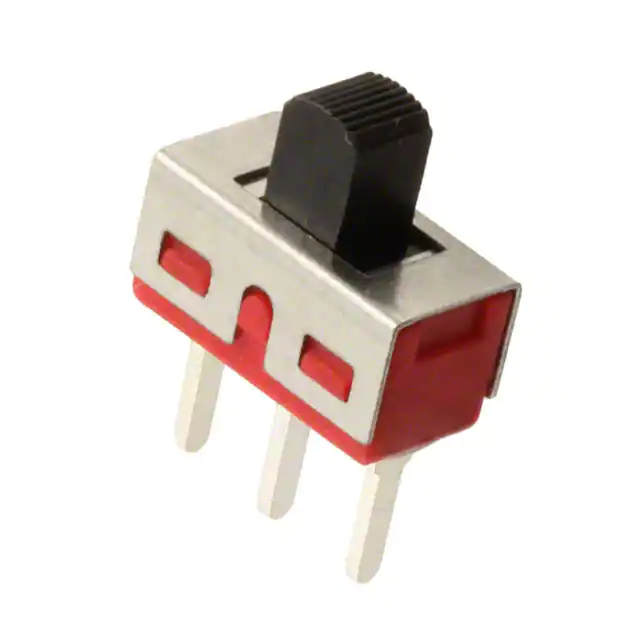

48ASSP3S1M2QBTSWITCH SLIDE SPDT 5A 125V |
89 |
|
Таблицы данных |
48A | Bulk | Active | SPDT | Not Specified | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

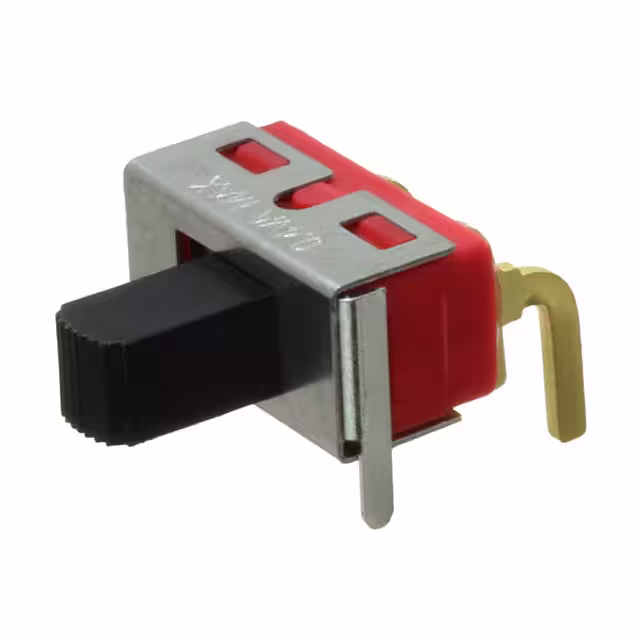

48ASSP1S2M6RBTSWITCH SLIDE SPDT 0.4VA 20V |
68 |
|
Таблицы данных |
48A | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 7.24mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
V70212SS05QESWITCH SLIDE SPDT 10A 125V |
45 |
|
Таблицы данных |
V | Tray | Active | SPDT | Not Specified | On-On (Line Voltage Selector) | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | 115V-230V Marking, Epoxy Sealed Terminals |
|

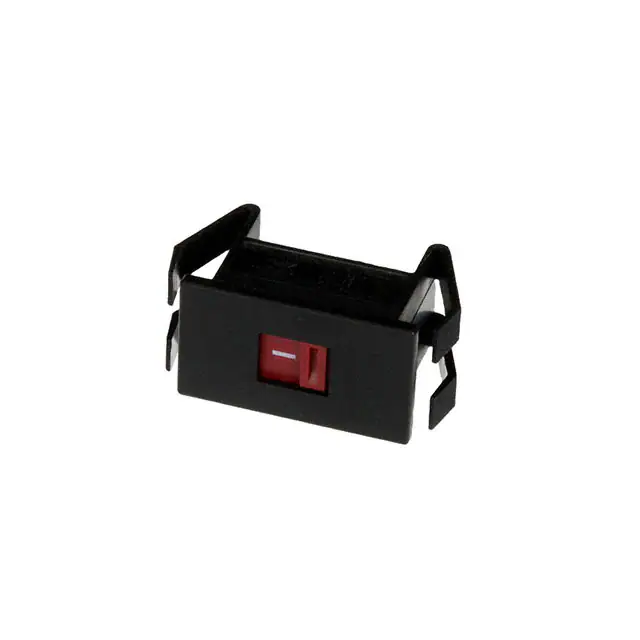

L212132MV02QESWITCH SLIDE DPDT 4A 125V |
48 |
|
Таблицы данных |
L | Bulk | Active | DPDT | Not Specified | On-Mom | 4A (AC/DC) | 125 V | 28 V | Plunger for Cap | 8.38mm | Copper | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

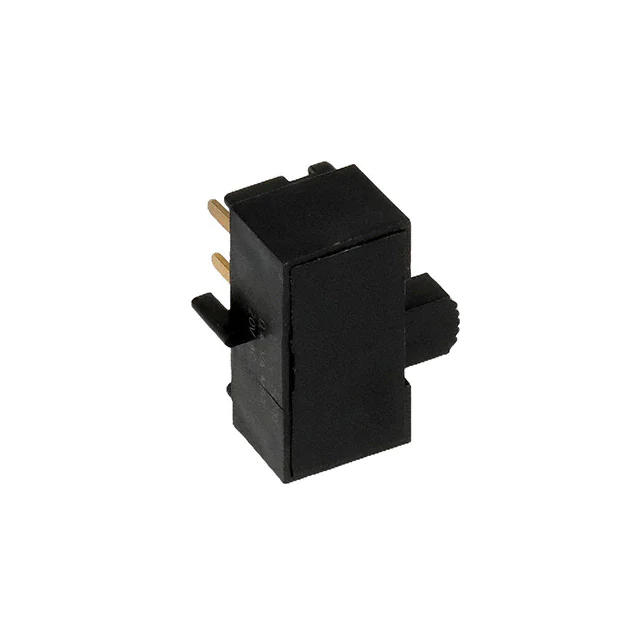

L102011ML04BSWITCH SLIDE SPDT 0.4VA 20V |
27 |
|
Таблицы данных |
L | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Copper | Gold | Through Hole, Right Angle | PC Pin | - |
|
S602131MS02QSWITCH SLIDE DPDT 12A 125V |
30 |
|
Таблицы данных |
S | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 12A (AC), 1A (DC) | 125 V | 125 V | Screwdriver Slot | 1.27mm | Copper | Silver | Through Hole | PC Pin | No Marking |
|

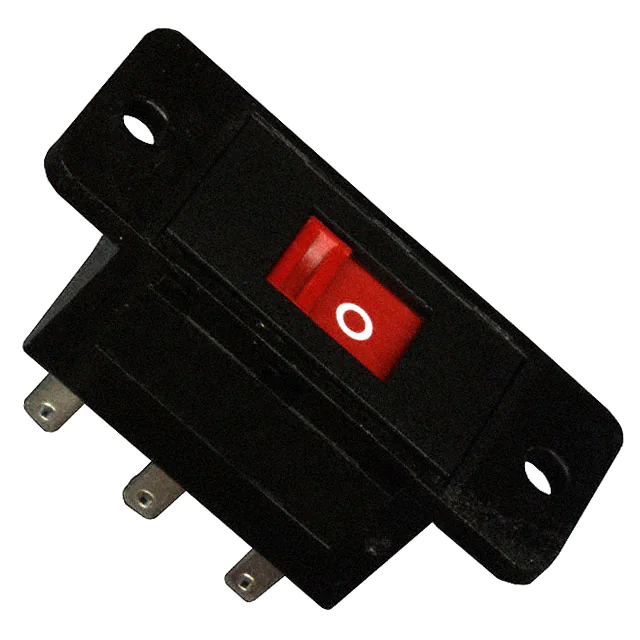

V80214SS05QSWITCH SLIDE DPDT 10A 125V |
100 |
|
Таблицы данных |
V | Bulk | Active | DPDT | Not Specified | On-On | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | O - Marking |
|

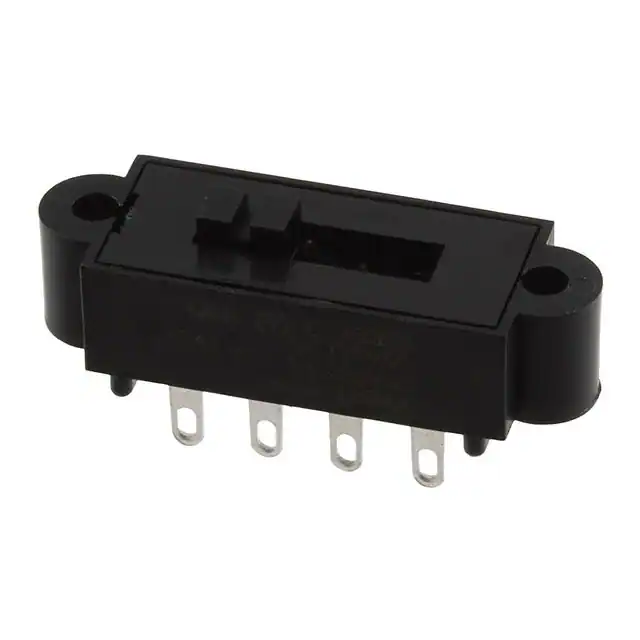

L203121TS03QSWITCH SLIDE DP3T 4A 125V |
37 |
|
Таблицы данных |
L | Bulk | Active | DP3T | Not Specified | On-On-On | 4A (AC/DC) | 125 V | 28 V | Screwdriver Slot | 1.65mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
1101M2S3V4BE2SWITCH SLIDE SPDT 0.4VA 20V |
80 |
|
Таблицы данных |
1000 | Tray | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

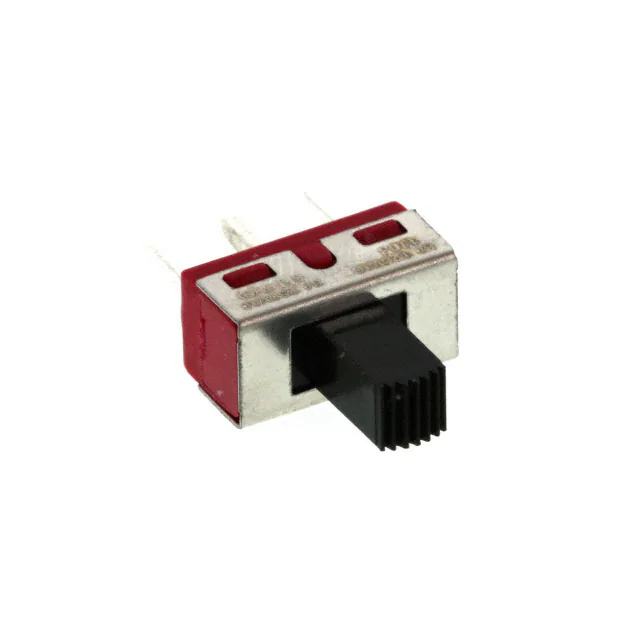

1103M2S4CQE2SWITCH SLIDE SPDT 6A 120V |
38 |
|
Таблицы данных |
1000 | Bulk | Active | SPDT | Not Specified | On-Off-On | 6A (AC/DC) | 120 V | 28 V | Standard | 7.24mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

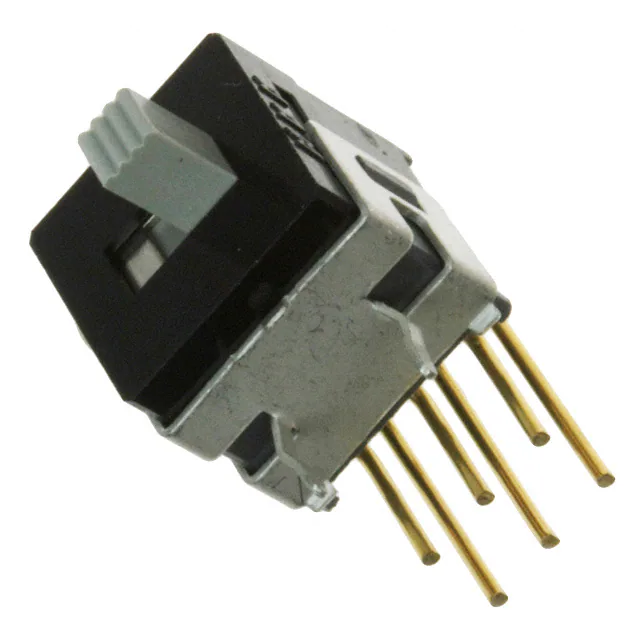

AS22CHSWITCH SLIDE DPDT 0.4VA 28V |
17 |
|
Таблицы данных |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
