Селекторные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Схема | Количество положений | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип крепления | Тип вывода | Размеры выреза панели | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0033.4241SWITCH SELECT 3POS SP3T 10A 250V |
200 |
|
Таблицы данных |
SWM | Bulk | Active | Line Voltage Selector | SP3T | 3 | On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | PC Pin | - | IP40 | - | -40°C ~ 85°C |
|
|
0033.4013SWITCH SELECT 3POS SP3T 10A 250V |
200 |
|
Таблицы данных |
SWM | Bulk | Active | Line Voltage Selector | SP3T | 3 | On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 14.10mm Dia | IP40 | - | -40°C ~ 85°C |
|
|
0033.4022SWITCH SELECT 3POS SP3T 10A 250V |
198 |
|
Таблицы данных |
SWM | Bulk | Active | Line Voltage Selector | SP3T | 3 | On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 14.10mm Dia | IP40 | - | -40°C ~ 85°C |
|
|
0033.4527SWITCH SELECT 2P SER 6.3A 250V |
1,891 |
|
- |
SWA | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 2 | On-On | 6.3A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 12.70mm Dia | IP40 | - | -40°C ~ 85°C |
|

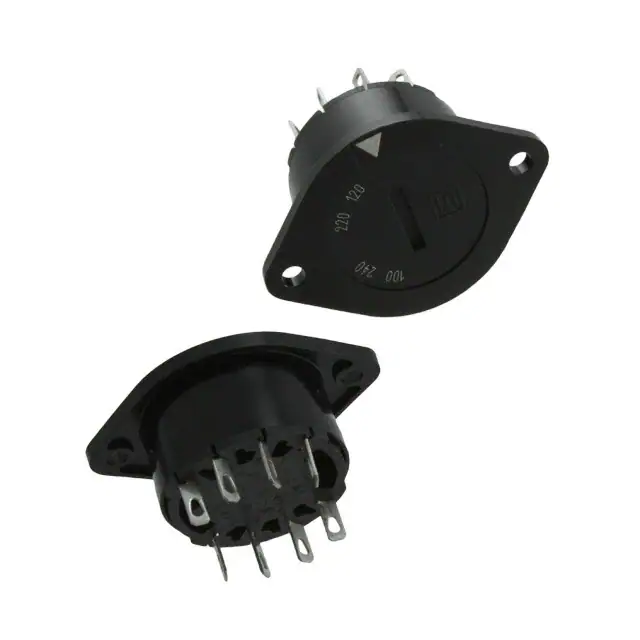

0033.3530SWITCH SELECT 6P SERIES 10A 250V |
224 |
|
Таблицы данных |
SWZ | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 30.00mm Dia | IP40 | Marking: 100-240-220-120 | -40°C ~ 85°C |
|
|
0033.3804SWITCH SELECT 6P SERIES 10A 250V |
201 |
|
Таблицы данных |
SWZ | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Through Hole | PC Pin | - | IP40 | - | -40°C ~ 85°C |
|
|
0033.3803SWITCH SELECT 6P SERIES 10A 250V |
200 |
|
Таблицы данных |
SWZ | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Through Hole | PC Pin | - | IP40 | Marking: 134-200-117-234-100-217 | -40°C ~ 85°C |
|
|
0033.3551SWITCH SELECT 6P SERIES 10A 250V |
200 |
|
Таблицы данных |
SWZ | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 30.00mm Dia | IP40 | - | -40°C ~ 85°C |
|
|
0033.3847SWITCH SELECT 6P SERIES 10A 250V |
198 |
|
Таблицы данных |
SWZ | Bulk | Active | Line Voltage Selector | Series, Parallel Connections | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Through Hole | PC Pin | - | IP40 | - | -40°C ~ 85°C |
.jpg)
|

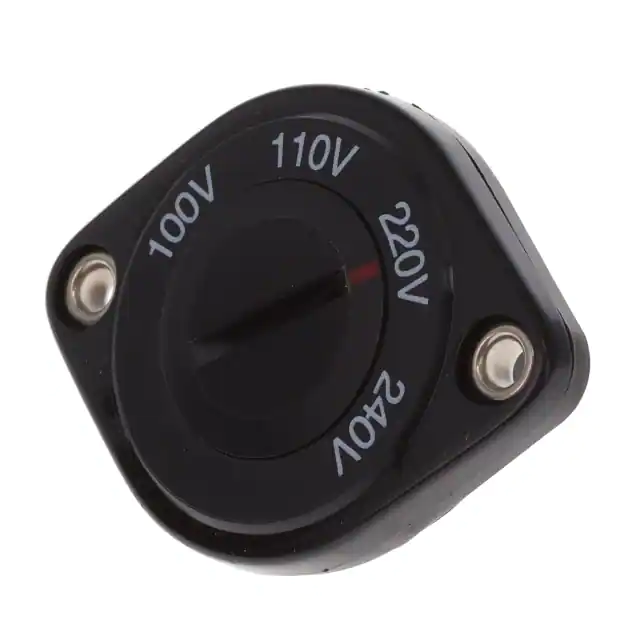

0033.1120SWITCH SELECT 6POS SP6T 10A 250V |
137 |
|
Таблицы данных |
SWP | Bulk | Active | Line Voltage Selector | SP6T | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 30.00mm Dia | IP40 | Marking: 100V-110V-220V-240V | -40°C ~ 85°C |
|

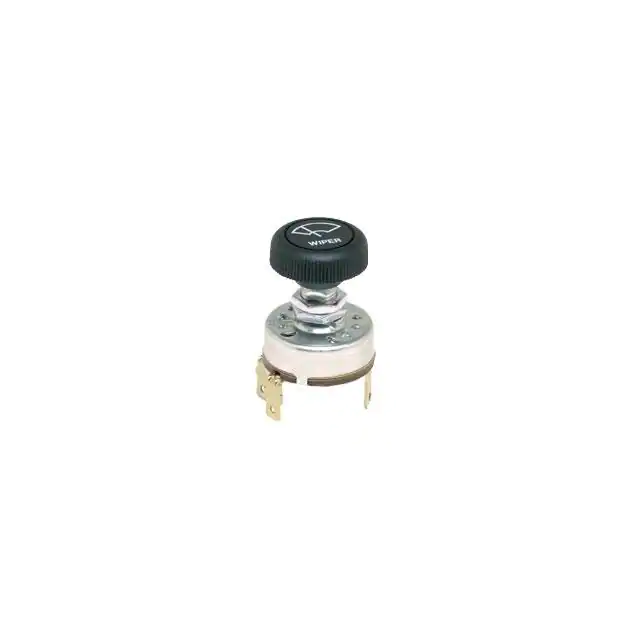

75221-09SWITCH SELECTOR 3POS 6A 12V |
45 |
|
Таблицы данных |
- | Bulk | Active | Standard | - | 3 | Off-On-On | 6A (DC) | - | 12 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|

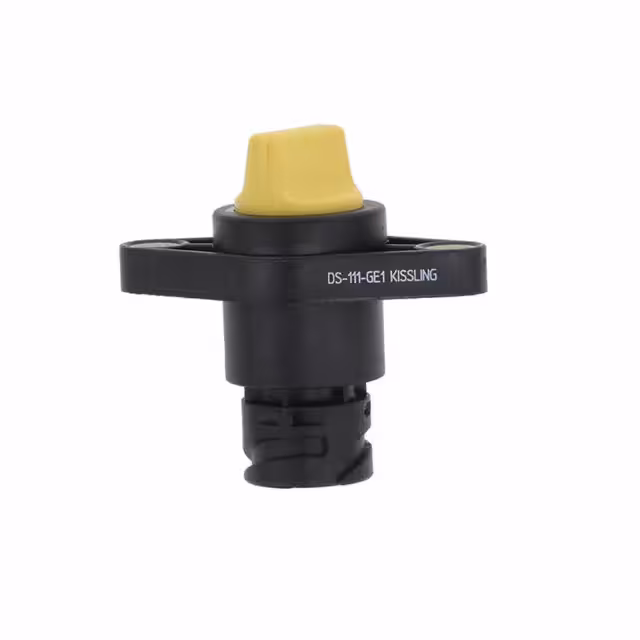

DS-111-GE1SWITCH SELECTOR 2POS SPDT 5A 20V |
42 |
|
Таблицы данных |
DS | Box | Active | Standard | SPDT | 2 | On-On | 5A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Chassis Mount | Connector | Circular - 30.50mm Dia | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | -40°C ~ 90°C |
|
|
75212-04SWITCH SELECTOR 3POS 7A 24V |
136 |
|
Таблицы данных |
- | Bulk | Active | Standard | - | 3 | Off-On-On | 7A (DC) | - | 24 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|

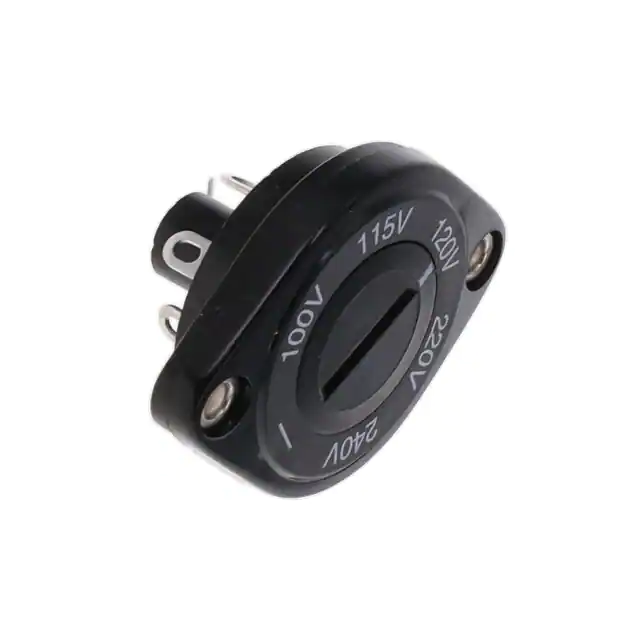

0033.1109SWITCH SELECT 6POS SP6T 10A 250V |
108 |
|
Таблицы данных |
SWP | Bulk | Active | Line Voltage Selector | SP6T | 6 | On-On-On-On-On-On | 10A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 30.00mm Dia | IP40 | Marking: 100V-115V-120V-220V-240V | -40°C ~ 85°C |
|
|
75228-04SWITCH SELECTOR 3POS 10A 12V |
177 |
|
Таблицы данных |
- | Bulk | Active | Standard | - | 3 | Off-On-On | 10A (DC) | - | 12 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|
95613SWITCH SELECTOR 3POS 20A 12V |
116 |
|
- |
95 | Bulk | Active | Standard | - | 3 | Off-On-Mom | 20A (DC) | - | 12 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | - | - | - | - |
|

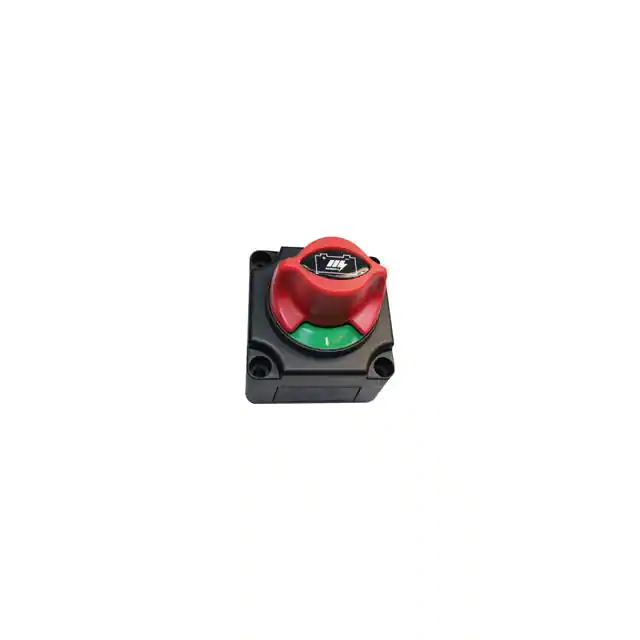

08080700SWITCH SELECT 2POS SPST 300A 24V |
42 |
|
Таблицы данных |
- | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 300A (DC) | - | 24 V | Non-Illuminated | - | - | Chassis Mount | Stud | - | IP54 - Dust Protected, Water Resistant | - | -40°C ~ 50°C |
|
|
2484-A-BXSWITCH SELECT 2POS SPST 175A 36V |
560 |
|
Таблицы данных |
2484 | Bulk | Active | Battery Disconnect | SPST | 2 | Off-On | 175A (DC) | - | 36 V | Non-Illuminated | - | - | Panel Mount | Stud | - | - | - | - |
|
|
2484-16-BXSWITCH SELECT 2POS SPST 175A 36V |
304 |
|
Таблицы данных |
2484 | Bulk | Active | Battery Disconnect | SPST | 2 | Off-On | 175A (DC) | - | 36 V | Non-Illuminated | - | - | Panel Mount | Stud | - | - | - | - |
|

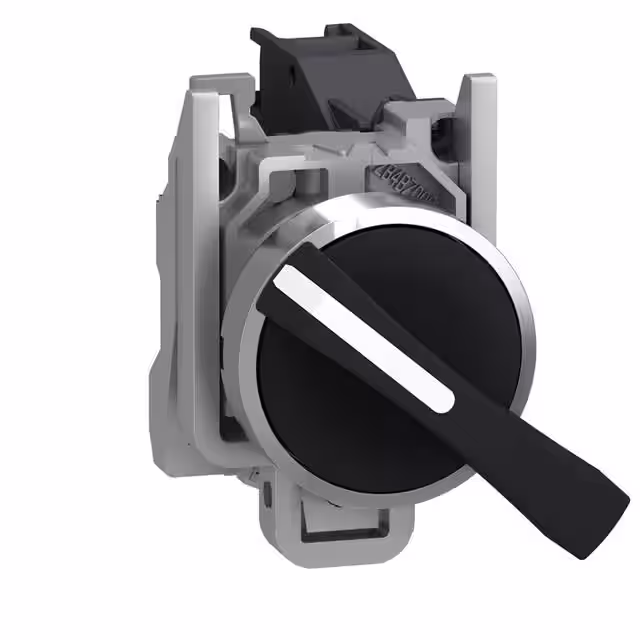

XB4BJ21SWITCH SELECT 2POS SPST 6A 120V |
45 |
|
Таблицы данных |
Harmony XB4 | Box | Active | Standard | SPST-NO | 2 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 70°C |
