Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
56A30-01-1-02NSWITCH ROTARY 2POS 200MA 115V |
0 |
|
Таблицы данных |
56 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56A30-01-1-03NSWITCH ROTARY 3POS 200MA 115V |
0 |
|
Таблицы данных |
56 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56A30-01-1-04NSWITCH ROTARY 4POS 200MA 115V |
0 |
|
Таблицы данных |
56 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56A30-01-1-05NSWITCH ROTARY 5POS 200MA 115V |
0 |
|
Таблицы данных |
56 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56A30-01-1-10NSWITCH ROTARY 10POS 200MA 115V |
0 |
|
Таблицы данных |
56 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56B30-01-1-04NSWITCH ROTARY 4POS 200MA 115V |
0 |
|
Таблицы данных |
56 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
MB04L1NZGDSWITCH ROTARY 4POS 250MA 125V |
0 |
|
Таблицы данных |
M | Tray | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 14.86mm |
|

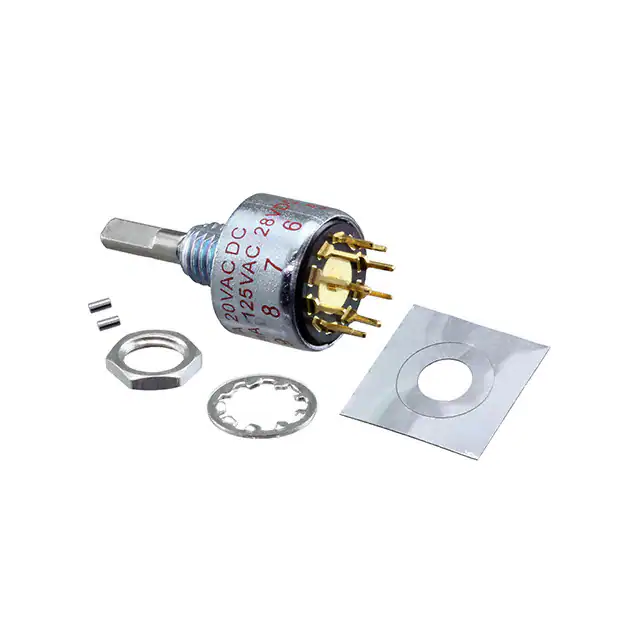

MA00L1NCGFSWITCH ROTARY 10POS 250MA 125V |
0 |
|
Таблицы данных |
M | Tray | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 10.42mm |
|
MB05L1NCQFSWITCH ROTARY 5POS 250MA 125V |
0 |
|
Таблицы данных |
M | Tray | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 10.42mm |
|
|
MA02L1NZGFSWITCH ROTARY 2POS 250MA 125V |
0 |
|
Таблицы данных |
M | Tray | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
|
|
MA04L1NZGFSWITCH ROTARY 4POS 250MA 125V |
0 |
|
Таблицы данных |
M | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
|
|
MC12L1NZGFSWITCH ROTARY 12POS 250MA 125V |
0 |
|
Таблицы данных |
M | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
|
|
56P30-01-1-12N-CSWITCH ROTARY 12POS 200MA 115V |
0 |
|
Таблицы данных |
56 | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56P36-01-1-04SSWITCH ROTARY 4POS 200MA 115V |
0 |
|
Таблицы данных |
56 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
MB04L2NZQFSWITCH ROTARY 4POS 250MA 125V |
0 |
|
Таблицы данных |
M | Tray | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Screwdriver Slot | Flush | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
|
|
MRJE34SWITCH ROTARY 4POS 0.4VA 20V |
0 |
|
Таблицы данных |
MRJ | Bulk | Obsolete | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Round (3.17mm Dia), Slotted | 19.00mm | 30° | Nickel | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 8.13mm |
|
|
56BP36-01-1-07SSWITCH ROTARY 7POS 200MA 115V |
0 |
|
Таблицы данных |
56 | Bulk | Active | 7 | Fixed | 1 | 1 | SP7T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56P36-01-1-02SSWITCH ROTARY 2POS 200MA 115V |
0 |
|
Таблицы данных |
56 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56P36-01-1-07SSWITCH ROTARY 7POS 200MA 115V |
0 |
|
Таблицы данных |
56 | Bulk | Active | 7 | Fixed | 1 | 1 | SP7T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56P36-01-1-09SSWITCH ROTARY 9POS 200MA 115V |
0 |
|
Таблицы данных |
56 | Bulk | Active | 9 | Fixed | 1 | 1 | SP9T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
