Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A11205RNCGSWITCH ROTARY 12POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Gold | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A20403RNCGKSWITCH ROTARY 4POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
|
A40315RNCQESWITCH ROTARY 3POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|
FC0308RS02QSWITCH ROTARY 3POS 4A 125V |
0 |
|
Таблицы данных |
F | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 4A (AC/DC) | 125 V | 28 V | Flatted (4.75mm Dia) | 14.86mm | 90° | Copper | Gold | Through Hole | PC Pin | - | 12.45mm |
|

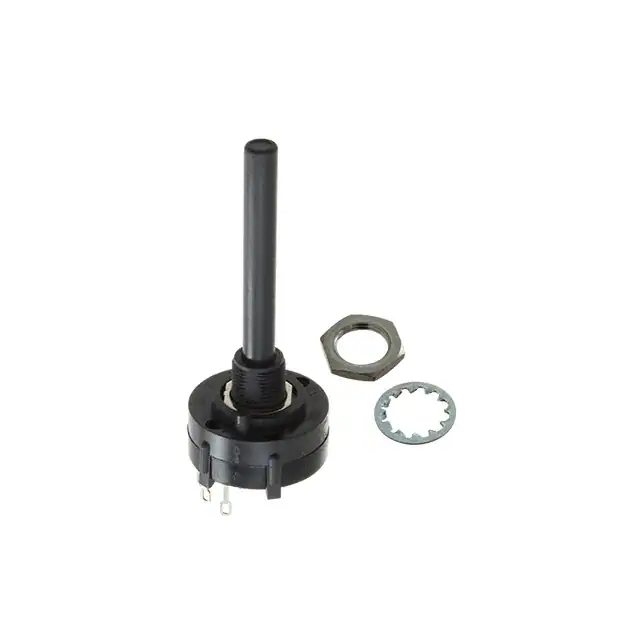

A10642MNZQSWITCH ROTARY 6POS 2.5A 125V |
1 |
|
Таблицы данных |
A | Tray | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Round (6mm Dia) | 42.00mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
|
A10605RNCBKSWITCH ROTARY 6POS 0.4VA 20V |
0 |
|
Таблицы данных |
A | Tray | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
|
A20405RNZBSWITCH ROTARY 4POS 0.4VA 20V |
0 |
|
Таблицы данных |
A | Tray | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 20.83mm |
|
|
A10342MNCBKSWITCH ROTARY 3POS 0.4VA 20V |
0 |
|
Таблицы данных |
A | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Round (6mm Dia) | 42.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
|
A40303RNZQESWITCH ROTARY 3POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 20.83mm |
|
MA03L1NCQDSWITCH ROTARY 3POS 250MA 125V |
0 |
|
Таблицы данных |
M | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|
|
A20615RNZBSWITCH ROTARY 6POS 0.4VA 20V |
0 |
|
Таблицы данных |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 20.83mm |
|
|
MA02L2NZQDSWITCH ROTARY 2POS 250MA 125V |
0 |
|
Таблицы данных |
M | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Screwdriver Slot | Flush | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 15.88mm |
|

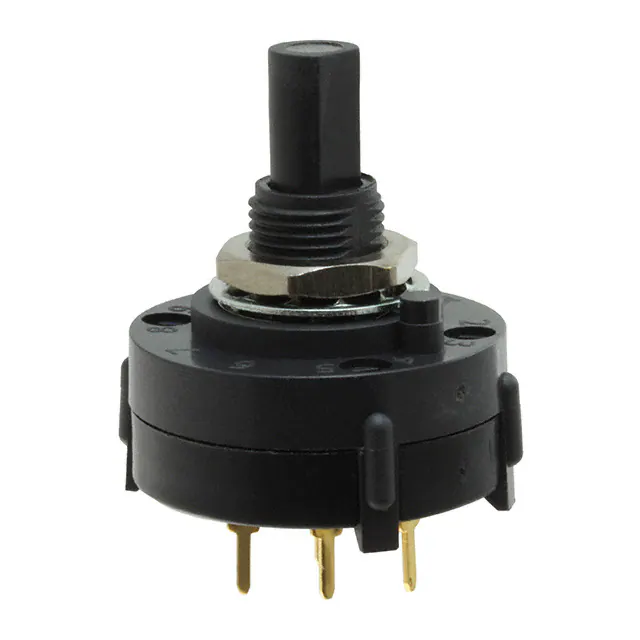

A10303RNCBSWITCH ROTARY 3POS 0.4VA 20V |
0 |
|
Таблицы данных |
A | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A403S1RNCBSWITCH ROTARY 3POS 0.4VA 20V |
0 |
|
Таблицы данных |
A | Tray | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A10042MNCBSWITCH ROTARY 12POS 0.4VA 20V |
0 |
|
Таблицы данных |
A | Tray | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Round (6mm Dia) | 42.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A20642MNCBSWITCH ROTARY 6POS 0.4VA 20V |
0 |
|
Таблицы данных |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Round (6mm Dia) | 42.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A11215RNCBSWITCH ROTARY 12POS 0.4VA 20V |
0 |
|
Таблицы данных |
A | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
MA05L1NZQDSWITCH ROTARY 5POS 250MA 125V |
0 |
|
Таблицы данных |
M | Tray | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 14.86mm |
|
|
95055-11SWITCH ROT BLK KEY CODES 700-799 |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A30305RNZBSWITCH ROTARY 3POS 0.4VA 20V |
0 |
|
Таблицы данных |
A | Tray | Active | 3 | Fixed | 1 | 3 | 3P3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 20.83mm |
