Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A10305RNCQSWITCH ROTARY 3POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|

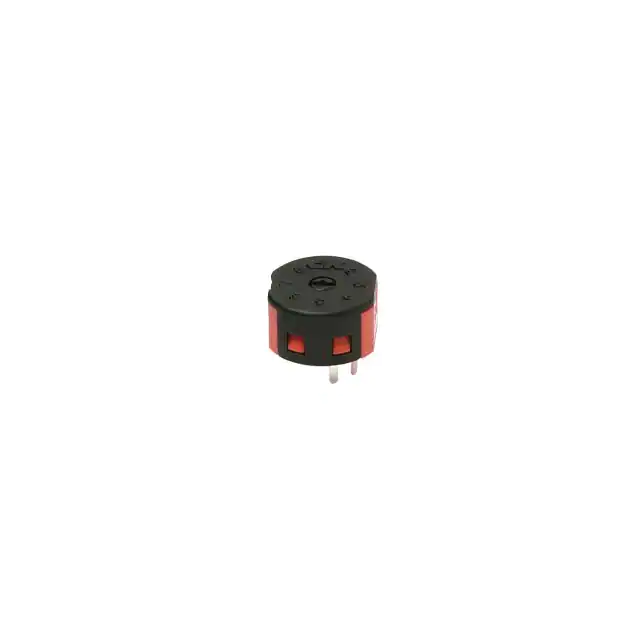

FA0508RS02QSWITCH ROTARY 3POS 4A 125V |
0 |
|
Таблицы данных |
F | Tray | Active | 3 | Fixed | 1 | 1 | SP3T, Adjacent Contact | Non-Shorting (BBM) | 4A (AC/DC) | 125 V | 28 V | Flatted (4.75mm Dia) | 14.86mm | 90° | Copper | Silver | Panel Mount, Through Hole | PC Pin | No Common Pin | 12.45mm |
|
|
A100S1RNCQSWITCH ROTARY 12POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A12403RNZQKSWITCH ROTARY 4POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals, Splashproof Bushing Seal | 20.83mm |
|
|
FA0108RS02QSWITCH ROTARY 2POS 4A 125V |
0 |
|
Таблицы данных |
F | Tray | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 4A (AC/DC) | 125 V | 28 V | Flatted (4.75mm Dia) | 14.86mm | 90° | Copper | Silver | Panel Mount, Through Hole | PC Pin | No Common Pin | 12.45mm |
|
R20307RN02QESWITCH ROTARY 3POS 5A 125V |
0 |
|
Таблицы данных |
R | Tube | Active | 3 | Fixed | 1 | 2 | DP3T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals | 10.29mm |
|
|
F20315RN02QSWITCH ROTARY 3POS 4A 125V |
0 |
|
Таблицы данных |
F | Tray | Active | 3 | Fixed | 1 | 2 | DP3T, Adjacent Contact | Non-Shorting (BBM) | 4A (AC/DC) | 125 V | 28 V | Screwdriver Slot | Flush | 45° | Copper | Silver | Through Hole | PC Pin | No Common Pin | 12.45mm |
|
|
A12415RNZQESWITCH ROTARY 4POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 20.83mm |
|
R135-A-WHSWITCH ROTARY 2POS 3A 125V |
0 |
|
- |
R135 | Bulk | Active | 2 | Fixed | 1 | 1 | SPST | Not Specified | 3A (AC), 5A (DC) | 125 V | 12 V | Knob | 11.50mm | - | - | - | Panel Mount | Wire Leads | - | 6.73mm |
|
|
R135-A-BLSWITCH ROTARY 2POS 3A 125V |
0 |
|
- |
R135 | Bulk | Active | 2 | Fixed | 1 | 1 | SPST | Not Specified | 3A (AC), 5A (DC) | 125 V | 12 V | Knob | 11.50mm | - | - | - | Panel Mount | Wire Leads | - | 6.73mm |
|
|
R135-BLSWITCH ROTARY 2POS 3A 125V |
0 |
|
Таблицы данных |
R135 | Bulk | Active | 2 | Fixed | 1 | 1 | SPST | Not Specified | 3A (AC), 5A (DC) | 125 V | 12 V | Knob | 11.50mm | - | - | - | Panel Mount | Wire Leads | - | 6.73mm |
|
RTAP31W12M25NSSWITCH ROTARY 12POS 150MA 60V |
0 |
|
Таблицы данных |
RTA | Tray | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (6mm Dia), Slotted | 25.00mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 12.60mm |
|
|
RTAP31S12W50NSSWITCH ROTARY 12POS 150MA 60V |
0 |
|
Таблицы данных |
RTA | Bag | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (6mm Dia), Slotted | 50.00mm | 30° | Brass | Silver | Through Hole | PC Pin | - | 12.60mm |
|
|
A12405RNZQESWITCH ROTARY 4POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 20.83mm |
|
|
KC43A13.001NLFSWITCH ROTARY 3POS 350MA 125V |
0 |
|
Таблицы данных |
KC | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 13.00mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 18.50mm |
|
|
A10805RNMCQSWITCH ROTARY 8POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Modular Base | 14.48mm |
|
|
RTAP41S09W06FSSWITCH ROTARY 9POS 150MA 60V |
0 |
|
Таблицы данных |
RTA | Bag | Active | 9 | Fixed | 1 | 1 | SP9T | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Flatted (6mm Dia) | 6.00mm | 36° | Brass | Silver | Through Hole | PC Pin | - | 12.60mm |
|
|
KC10A13.001NLFSWITCH ROTARY 12POS 350MA 125V |
0 |
|
Таблицы данных |
KC | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 13.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | Solder Lug | - | 18.50mm |
|
|
A11405RNCQFSWITCH ROTARY 2POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 90° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Splashproof Bushing Seal | 14.48mm |
|
|
A10715RNCQSWITCH ROTARY 7POS 2.5A 125V |
3 |
|
Таблицы данных |
A | Tray | Active | 7 | Fixed | 1 | 1 | SP7T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
