Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
71B30-03-2-05NSWITCH ROTARY 5POS 250MA 115V |
0 |
|
Таблицы данных |
71 | Bulk | Active | 5 | Fixed | 3 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
MRA403-BHSWITCH ROTARY 2-3POS 250MA 125V |
0 |
|
Таблицы данных |
MR | Bulk | Obsolete | 2 ~ 3 | Adjustable | 1 | 4 | 4P3T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 14.30mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
|
MRA403-CFSWITCH ROTARY 2-3POS 250MA 125V |
0 |
|
Таблицы данных |
MR | Bulk | Obsolete | 2 ~ 3 | Adjustable | 1 | 4 | 4P3T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 15.80mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
|
50C36-01-1-04NSWITCH ROTARY 4POS 150MA 115V |
0 |
|
Таблицы данных |
50 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
51CD30-01-3-AJNSWITCH ROTARY 2-4POS 150MA 115V |
22 |
|
Таблицы данных |
51 | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 3 | 3P4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|

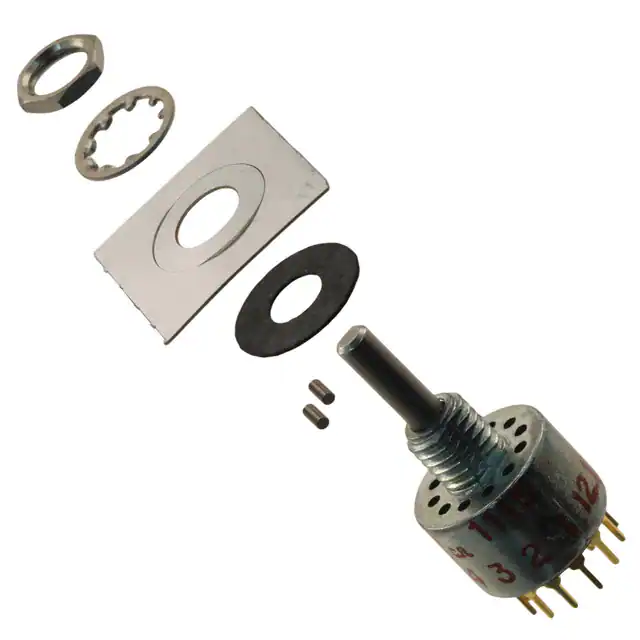

MD00S1NCGFSWITCH ROTARY 6POS 250MA 125V |
31 |
|
Таблицы данных |
M | Tray | Active | 6 | Continuous | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 10.42mm |
|
|
51C30-01-1-06NSWITCH ROTARY 6POS 150MA 115V |
0 |
|
Таблицы данных |
51 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
50S60-01-2-02NSWITCH ROTARY 2POS 150MA 115V |
0 |
|
Таблицы данных |
50 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 60° | - | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 18.77mm |
|
|
71MB30-01-2-06NSWITCH ROTARY 6POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
|
71BF36-01-1-05NSWITCH ROTARY 5POS 250MA 115V |
0 |
|
Таблицы данных |
71 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 19.33mm |
|
|
71BD30-03-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
0 |
|
Таблицы данных |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 3 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
50M45-01-1-07NSWITCH ROTARY 7POS 150MA 115V |
0 |
|
Таблицы данных |
50 | Bulk | Active | 7 | Fixed | 1 | 1 | SP7T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
71AD36-04-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
0 |
|
Таблицы данных |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 4 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 35.94mm |
|
|
71ADF36-03PAJN71ADF36-03-1-AJN |
25 |
|
Таблицы данных |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 3 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 30.40mm |
|
|
71ADF36-03-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
0 |
|
Таблицы данных |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 3 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 30.40mm |
|
|
51BP30-01-3-04NSWITCH ROTARY 4POS 150MA 115V |
0 |
|
Таблицы данных |
51 | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Screwdriver Slot | 3.18mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|
|
71MAS30-01B08NSWITCH ROTARY 8POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 19.33mm |
|
|
71MBS36-01B06NSWITCH ROTARY 6POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Round (4mm Dia) | 17.00mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 19.33mm |
|
|
51MP30-01-3-03SSWITCH ROTARY 3POS 150MA 115V |
0 |
|
Таблицы данных |
51 | Bulk | Active | 3 | Fixed | 1 | 3 | 3P3T | Shorting (MBB) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|
|
51A22-01-1-13NSWITCH ROTARY 13POS 150MA 115V |
0 |
|
Таблицы данных |
51 | Bulk | Active | 13 | Fixed | 1 | 1 | SP13T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 22.5° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
